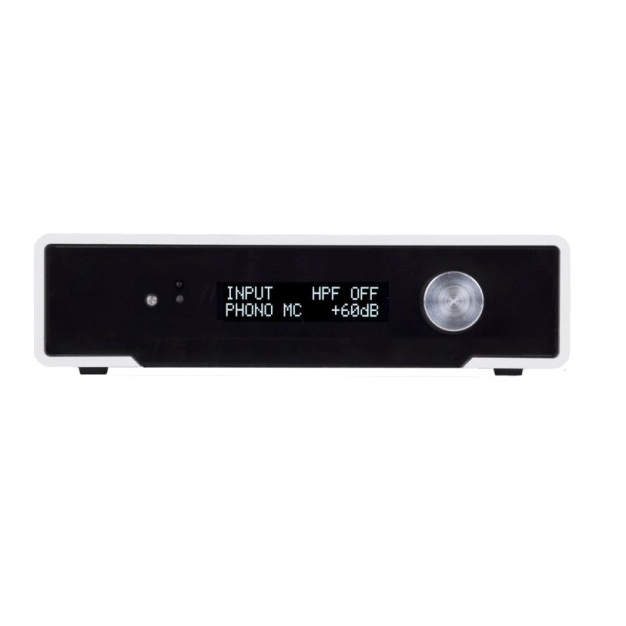

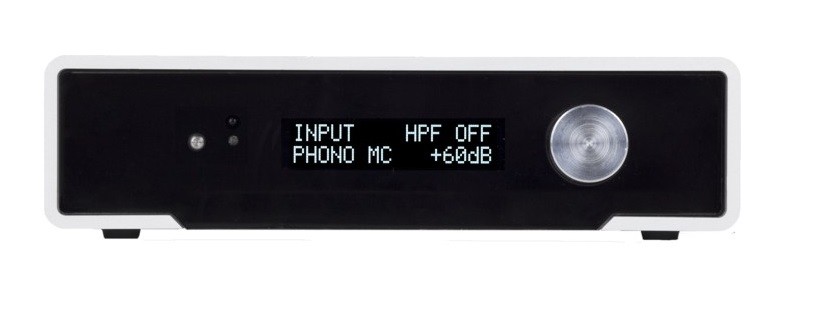

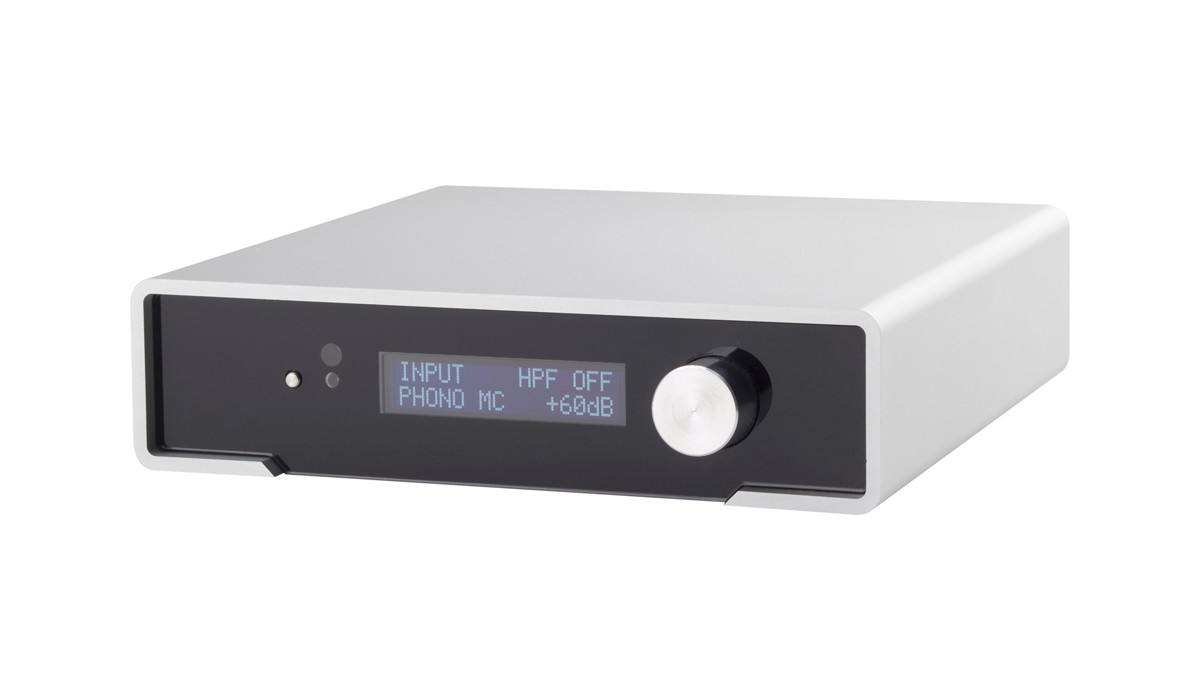

M2Tech Nash MC/MM Phono Preamplifier
The M2Tech Nash MC/MM Phono Preamplifier is a dedicated preamp and phono equalizer for any cartridge model. It has two phono inputs, one for low-end MC cartridges and the other for mid-range MC and MM cartridges.

The M2Tech Nash MC/MM Phono Preamplifier is a dedicated preamp and phono equalizer for any cartridge model. It has two phono inputs, one for low-end MC cartridges and the other for mid-range MC and MM cartridges.
Its FET input, all discrete component circuits have vanishingly low noise and high gain, resulting in a stunning 2.5Vrms output. from 5 mV to MM and 170 µV to MC. Passive RIAA is implemented using high precision polypropylene capacitors.

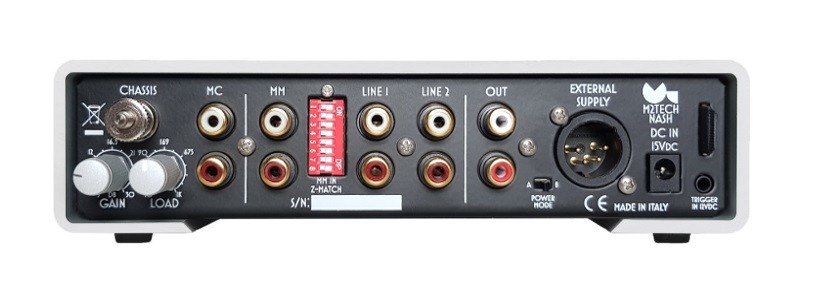

The parameters of the MC interface (input impedance and MC preamp) are set with a potentiometer on the rear panel. In addition, the MM interface parameters (input impedance and load capacity) are set by DIP switches, again from the rear panel.
The M2Tech Nash MC/MM Phono Preamplifier is equipped with a Bluetooth interface for control and setup. The Android/iOS app allows the user to take full control of the device and set configuration options. A comprehensive, constantly updated pickup truck database makes customization faster and easier.
You can control the Nash with the encoder on the front, with the remote control, or with the dedicated Android app via Bluetooth. Operating data is displayed on a highly readable OLED display. The menu allows you to set parameters such as: noise filter (anti-rumble), gain of the MM front end, etc.
Two auxiliary line inputs make the Nash a switcher or breakout box for analog sources, which is an interesting addition when the Nash is used in conjunction with the Young MkIII to make full use of the latter's single analog input. A Young MkIII- Nash based system can have a total of four analog sources: two phonos and two line levels.
The sound quality and noise level of the M2Tech Nash MC/MM Phono Preamplifier can be further improved by replacing the stock power supply with a low-noise Van Der Graaf MkII power supply.
Characteristics:
- Device type: phono preamplifier
- Installation method: shelf, desktop
- Output voltage: 2.5 Vrms (MM, 5mV input, 55dB gain)
- Inputs: phono MC (RCA), phono MM (RCA), 2 x line (RCA), external power supply (4-pin XLR), trigger (3.5 mm)
- Outputs: equalized line output (RCA), trigger loop (3.5mm jack)
- Gain (MM): 55dB/60dB/65dB
- Pre Gain (MC): 3 dB - 30 dB
- Total Gain (M)C: 58dB - 95dB
- Input impedance (MC): 10 Ohm - 50 kOhm
- Input impedance (MM): 47 kΩ / 15 kΩ
- Input capacitance (MM): 0pF/100pF/220pF/330pF or any combination of the above
- Signal-to-noise ratio: 85dBA (MM, 60dB gain) / 78dBA (MC, 70dB gain)
- Output impedance: 5 ohm
- Trigger input voltage: 5V - 12V
- Supply voltage: 15 V DC (adapter standard input)/+5 Vdc current; +15 VDC current; -15 VDC (external power supply input)
- Power Consumption (Operating): 4W
- Power consumption in standby mode: 0.23 W
- Control: remote control, application
- Dimensions (W x D x H): 200 mm x 200 mm x 50 mm
- Weight (incl. accessories): 2 kg
- Color: silver with black
- Country (head office): Italy
Brand | M2Tech |
---|---|
Model | Nash MC/MM Phono Preamplifier |
Inputs | фоно MC (RCA), фоно MM (RCA), 2 x линейных (RCA), внешний источник питания (4-х контактный XLR), триггер (3.5 мм) |
exits | эквализированный линейный выход (RCA), проходной триггер (разъем 3.5 мм) |
Signal to noise ratio | 85 дБА (MM, 60 дБ)/78 дБА (MC, 70 дБ) |
Input impedance | 47 кОм/15 кОм (MM), 10 Ом - 50 кОм (MC) |
Output voltage | 2.5 В среднекв. (MM, вход 5 мВ, усиление 55 дБ) |
Dimensions (W x D x H), mm | 200 мм x 200 мм x 50 мм |
Input capacitance | 0 пФ/100 пф/220 пф/330 пф или комбинация (MM) |
Weight | 2 кг |
