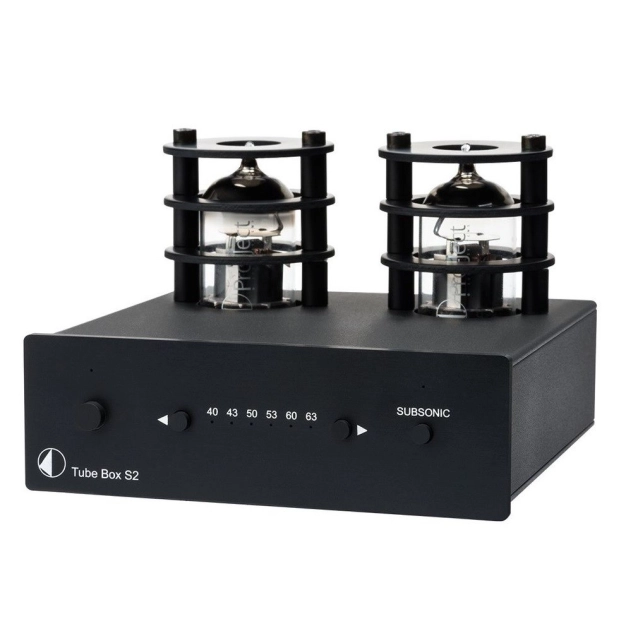

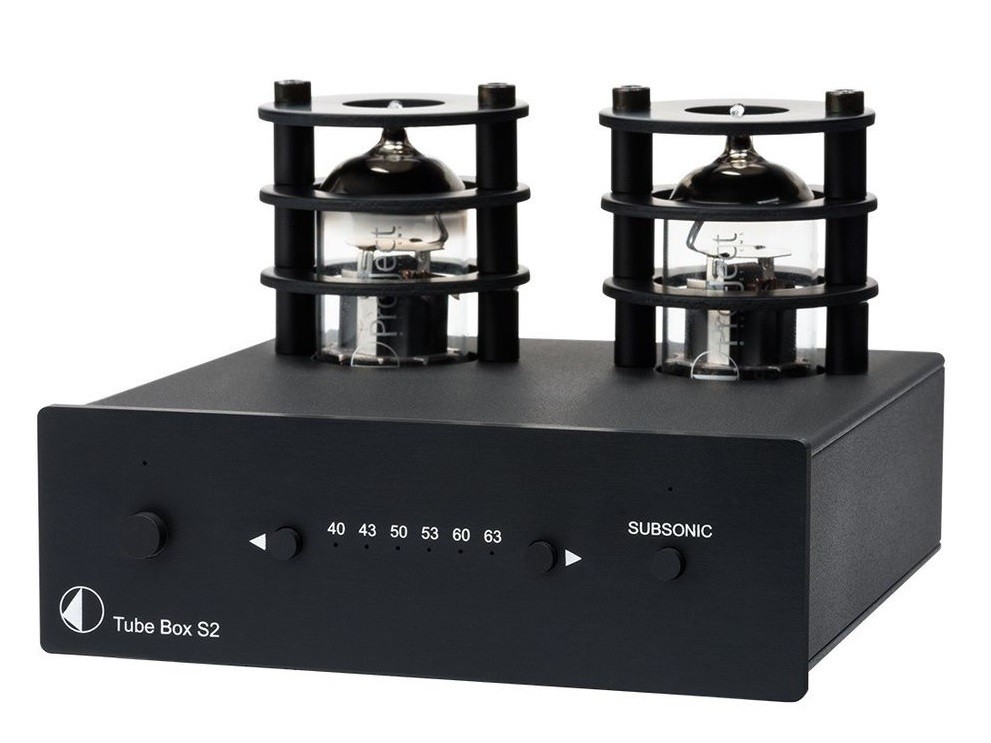

Phono stage Pro-Ject Tube Box S2 Black

The Pro-Ject Tube Box S2 Black is a premium phono stage with a tube output stage and high end sound. This machine is based on the advanced circuitry developed by the designer Sikora, and it uses the best components. Compatible with moving magnet (MM) and moving coil (MC) cartridges. The Pro-Ject Tube Box DS2 Black phono stage has the ability to connect to two turntables, as well as two line outputs and input impedance adjustment for low-output MC pickups while the record is playing! In addition, the input capacitance level for MM cartridges can be adjusted, and there is a switchable subsonic filter that protects the amplifier and speakers from ultra-low interference in the frequency range below 20 Hz. All components, including the tube output stage and polypropylene capacitors, are audiophile grade and provide an immersive sound experience. The perfect addition for aspiring vinyl lovers!

Peculiarities:

• Suitable for moving magnet (MM) and moving coil (MC) cartridges
• Fine tuning according to the requirements of the Recording Association of America RIAA
• Ultra-low noise circuit design
• Choice between two line inputs and two line outputs
• Dual mono circuitry for optimal channel separation
• Choice of input impedance (for MS: fixed or adjustable)
• Input capacitance level selection (for MM)
• Subsonic filter selection
• Gold plated unbalanced inputs and outputs
• Aluminum and steel sandwich housing protects against vibration and EMI

Specifications Pro-Ject Tube Box DS2 Black

• Lamps: 2x ECC83 (12AX7)
• Adjustable input impedance level: 10-1000 ohms, fixed - 47 kOhm
• Capacitance: 100 / 220 / 320pF
• Gain: MM / MC 40 / 45 / 50 / 60 / 65 dB
• Output voltage typ. 500 mV/1 kHz at 5 mV/1 kHz (at 40 dB)
• Signal-to-noise ratio 88 dBA
• THD < 0.04%
• Curve accuracy according to RIAA +/- 0.2 dB/20 Hz - 20 kHz
• Ultra Low Filter: 20Hz @ 18dB/octave
• Input/output connectors - unbalanced
• Electrical supply: 18V/1000mA DC
• Power Consumption: Maximum 490 mA DC / < 0.5 W standby
• Dimensions WxHxD: 206 x 91 x 227 mm
• Weight: 1.65 kg
