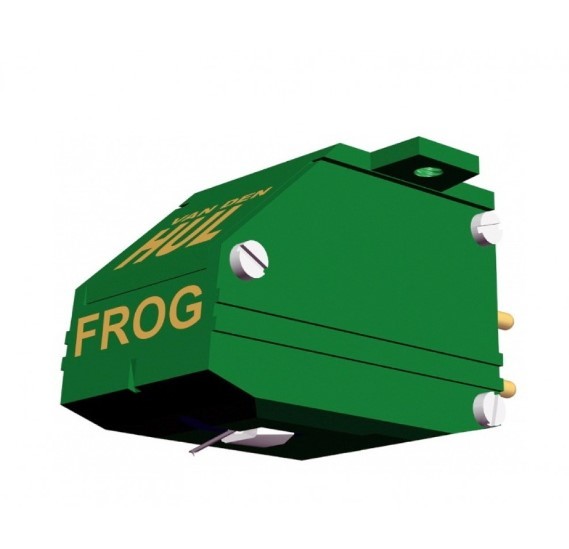

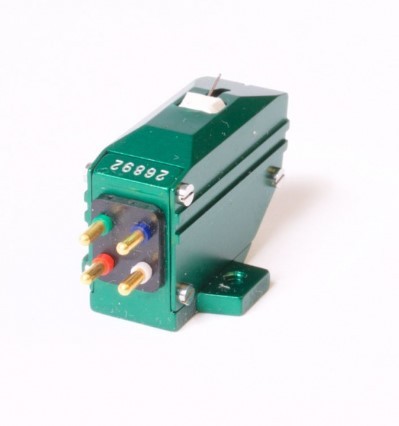

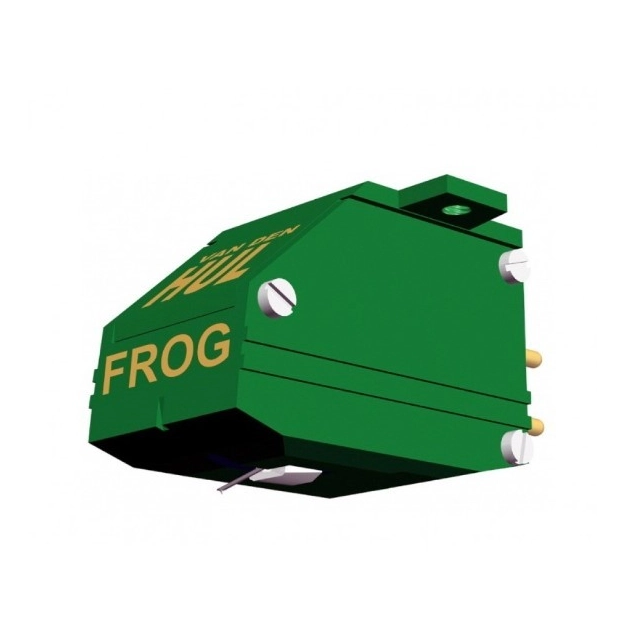

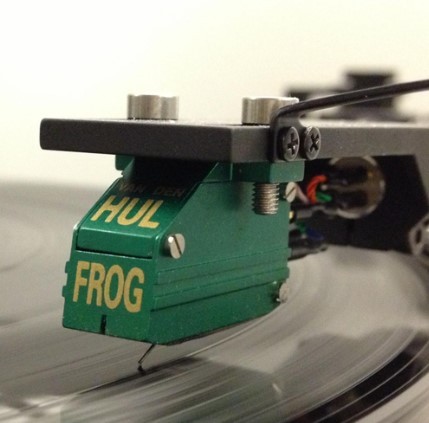

Van Den Hul The FROG cartridge

Van Den Hul The FROG cartridge.

Made by hand. Needle shape VDH - IS. Coil from GRASSHOPPER III. Frontpole magnet and suspension from GRASSHOPPER IV. This is probably the best cartridge in this price range.

Van Den Hul The FROG comes in 3 versions:
a) Standard - output 0.65 mV / per coil channel of copper conductors covered with a dense layer of silver and a modified magnet.
b) Gold - output 0.65 mV / per coil channel of copper conductors covered with a dense layer of gold and an extra modified magnet.
c) High Ouput - 2.25 mV output / per coil channel made of copper conductors coated with a dense layer of silver and an extra modified magnet.

Specifications

• VAN DEN HUL Versions aa) Standard; b) Gold; c) High Output
• Needle shape VDH - IS
• Needle radius 2 x 85 Micron
• Frequency response 2 x 85 microns
• Frequency range 5 - 55.000 Hz
• Downforce 13.5 - 16 mN
• Static plasticity 35 Micron/mN
• Contact area 15mN at 315Hz: 70-80 microns
• Output at 1 kHz at 5.7 cm/sec eff: a) 0.65 mV RMS b) 0.65 mV RMS c) 2.25 mV RMS Channel separation at 1 kHz / 10 kHz: > 35 / > 30 dB
• Channel imbalance < 0.3 dB
• Needle tip weight 0.32 mg
• Weight 8.2 g
• Needle angle 22 degrees
• Recommended load resistance a) 500 (> 200) ohm b) 500 (> 200) ohm c) 47k (> 1k) ohm
• Recommended effective tonearm weight 6 - 10 g
• Coil resistances (per channel) a) 21 ohm +/- 10% b) 16 ohm +/- 10% c) 96 ohm +/- 10%.
