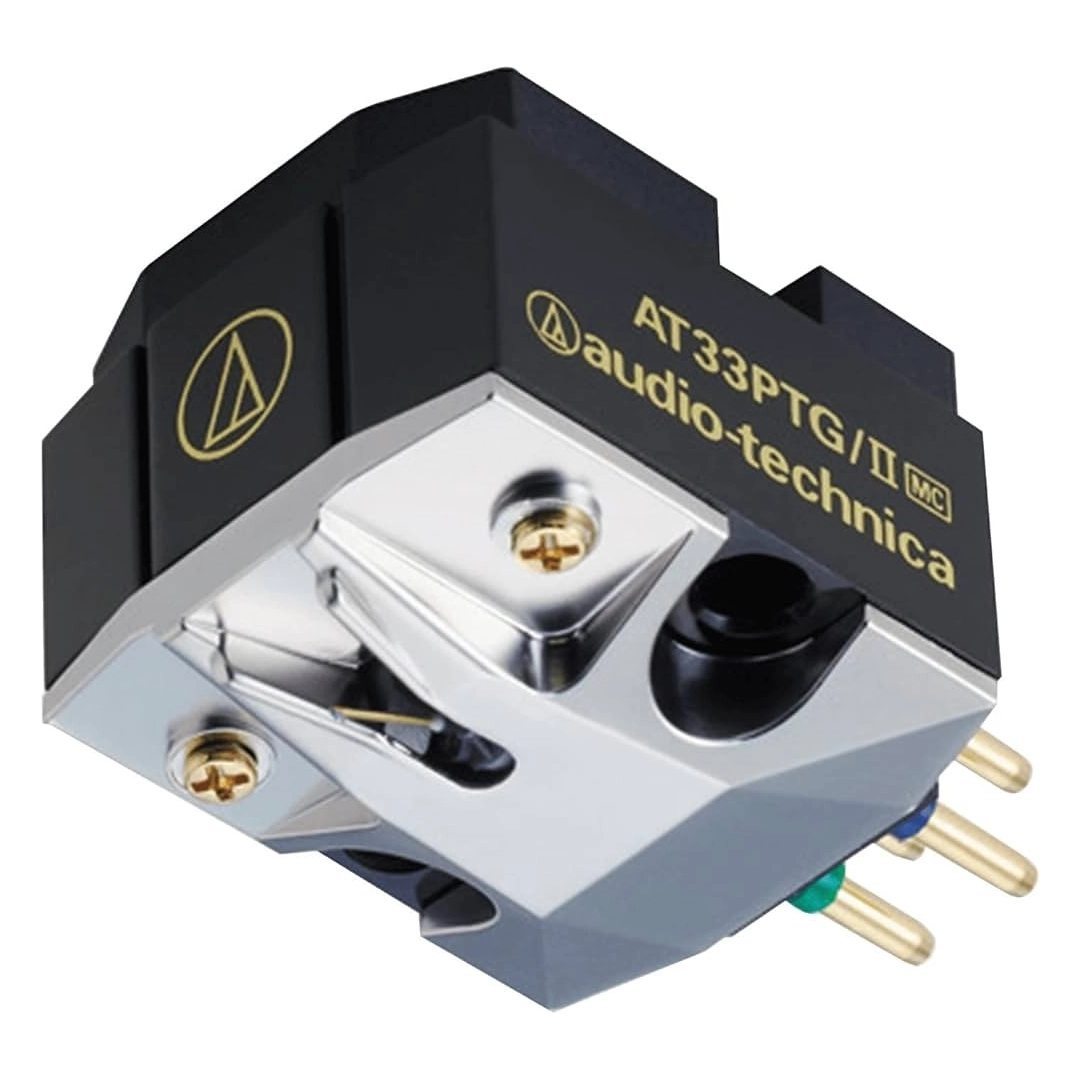

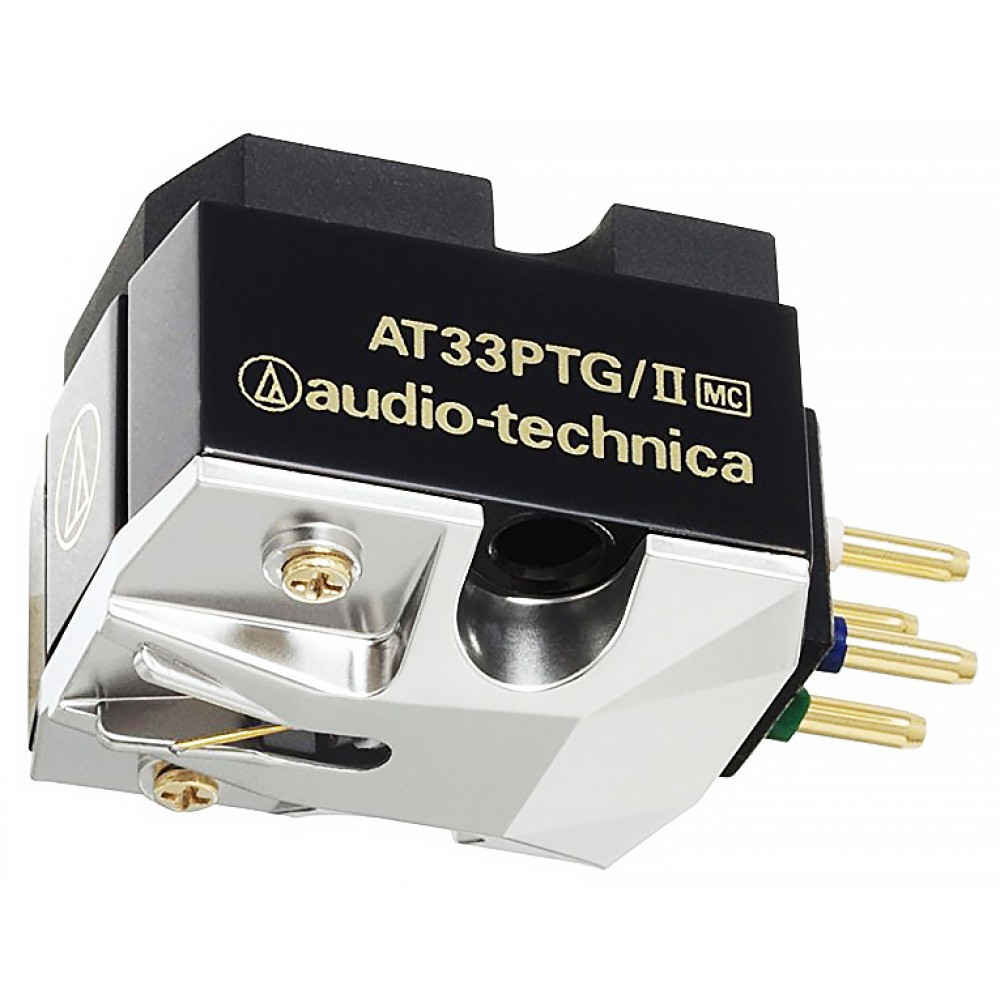

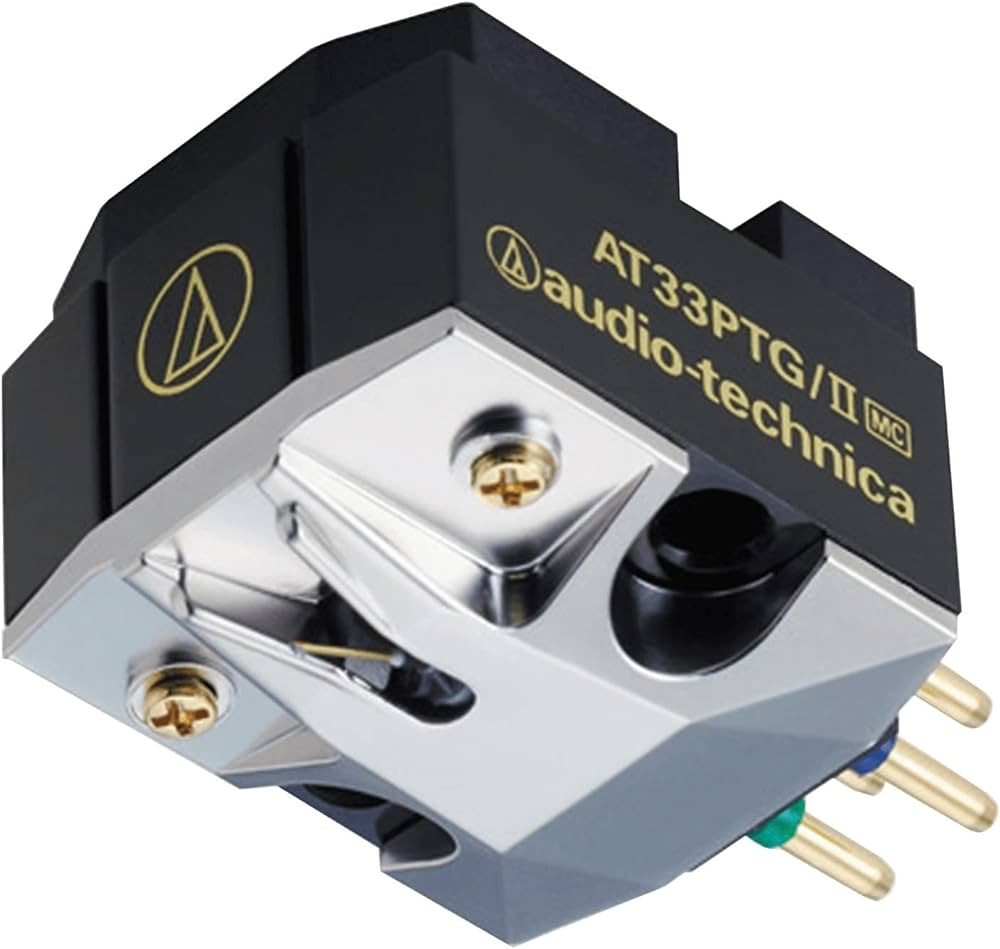

The Audio-Technica AT33PTG/II moving coil cartridge is the top of the AT33 series and has an output voltage of 0.3 mV.
The model received a characteristic wide body of silver-black color, made of solid aluminum alloy using high-precision casting technology. The housing has special inserts made of hard synthetic polymer designed to eliminate parasitic resonances.
View all products of the brand:
Audio-Technica
Description Audio-Technica cartridge AT33PTG/II
The converter uses a powerful neodymium magnet and a special element made of an alloy of cobalt with iron and vanadium (permendur), which enhances the magnetic field in the coil. The Audio-Technica AT33PTG/II cartridge is equipped with two coils that have a low impedance of 10 ohms and use wires made from PCOCC monocrystalline copper. This design makes it possible to increase the channel separation index up to 30 dB, as well as improve the quality of signal transmission. The weight of the moving system was reduced, which had a positive effect on sound accuracy.
The needle has a special MicroLinear (ML) profile. It is a highly polished diamond with a linear contact that minimizes distortion and also provides a wider frequency range than elliptical or conical profiles can provide. This needle also boasts a long service life, which is about 1000 hours. The cartridge cantilever is somewhat shortened compared to the previous model and is a lightweight, rigid conical tube made of boron and coated with a thin layer of gold.
The frequency range is from 15 to 50,000 Hz. To work with this model, you must use a high-quality phono stage with a minimum input impedance of 100 Ohms. Recommended tracking force range: 1.8 - 2.2 grams (optimum standard value - 2 grams). The cartridge weighs 6.9 g, which ensures that it can work with virtually all modern tonearms of traditional design.
The Audio-Technica AT33PTG/II cartridge is capable of accurately capturing every nuance of any music track while delivering clear, balanced and smooth sound with open highs, excellent midrange and well-developed bass.
Characteristics
- dimensions 26 × 17 × 16 mm
- weight 6.9 g
- moving coil (MC) cartridge type
- 10 ohm pickup coil impedance
- Pickup coil DC resistance 10 ohms
- pickup coil inductance 22 µH
- recommended connected load impedance 100 Ohm
- Micro Line needle sharpening
- solid square needle design
- boron fiber cantilever coated with gold
- vertical tracking angle 23°
- static cantilever flexibility 40 mm/N
- dynamic cantilever flexibility 10 mm/N
- half-inch pickup mount plug
- analog audio output
- stereo signal ✔
- signal level 0.3 mV
- frequency range from 15 to 50000 Hz
- channel separation 30 dB
- balance 0.5 dB
- set of wires for connecting the pickup to the AT6101 headshell
- length 35 mm
Included
- washer (2 pcs.)
- non-magnetic nut M2.5 (2 pcs.)
- non-magnetic screw M2.5×13 (2 pcs.)
- non-magnetic screw M2.5×19 (2 pcs.)
- non-magnetic screwdriver
- protective cover
| Frequency range | 15 Hz - 50 kHz |
|---|---|
| Impedance | 10 ohm |
| Cartridge type | MC |
| Channel separation at 1 kHz | 30 dB |
| Channel imbalance | 0.5 dB |
| Optimal downforce | 2.0 g |
| Vertical angle VTA | 23 degrees |
| Case/stylus color | Черный/Черный |
| Housing material | Aluminum |
| Dimensions (W x H x D), mm | 166 x 16 x 265 mm |
| Net weight | 6.9 g |
