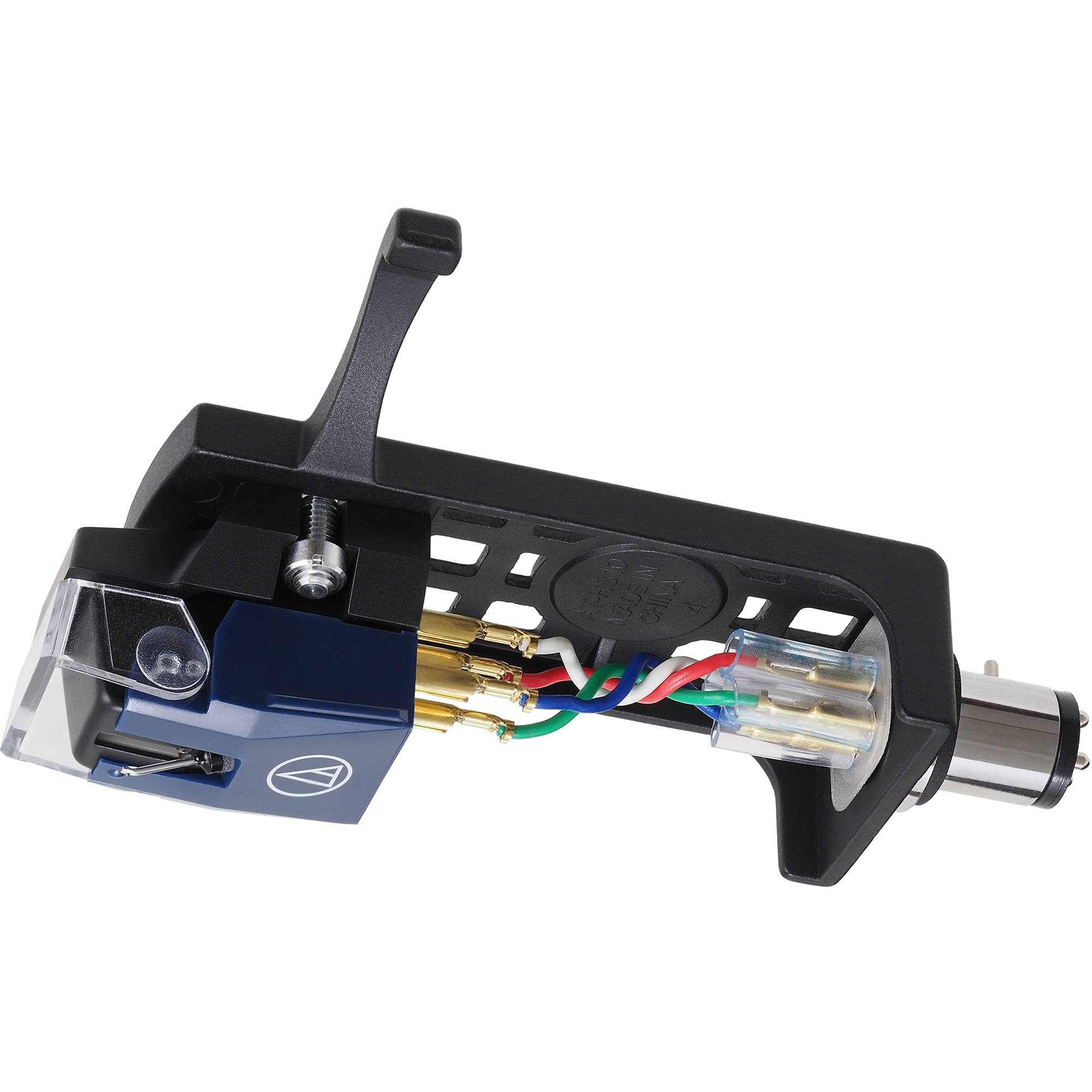

Cartridge Audio-Technica cartridge VM520EBH with Headshell
Standard elliptical model with an elliptical stylized stylus that reduces trace distortion and improves audio fidelity.

View all products of the brand:
Audio-Technica

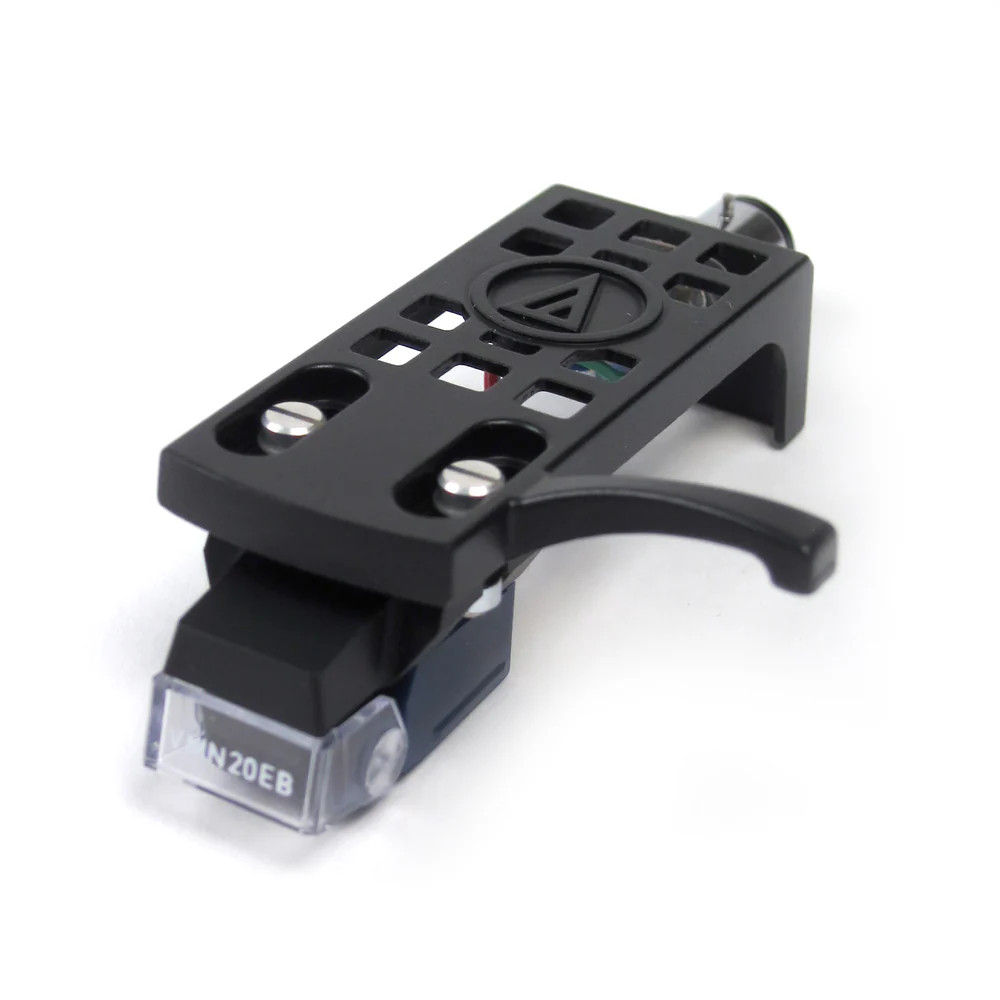

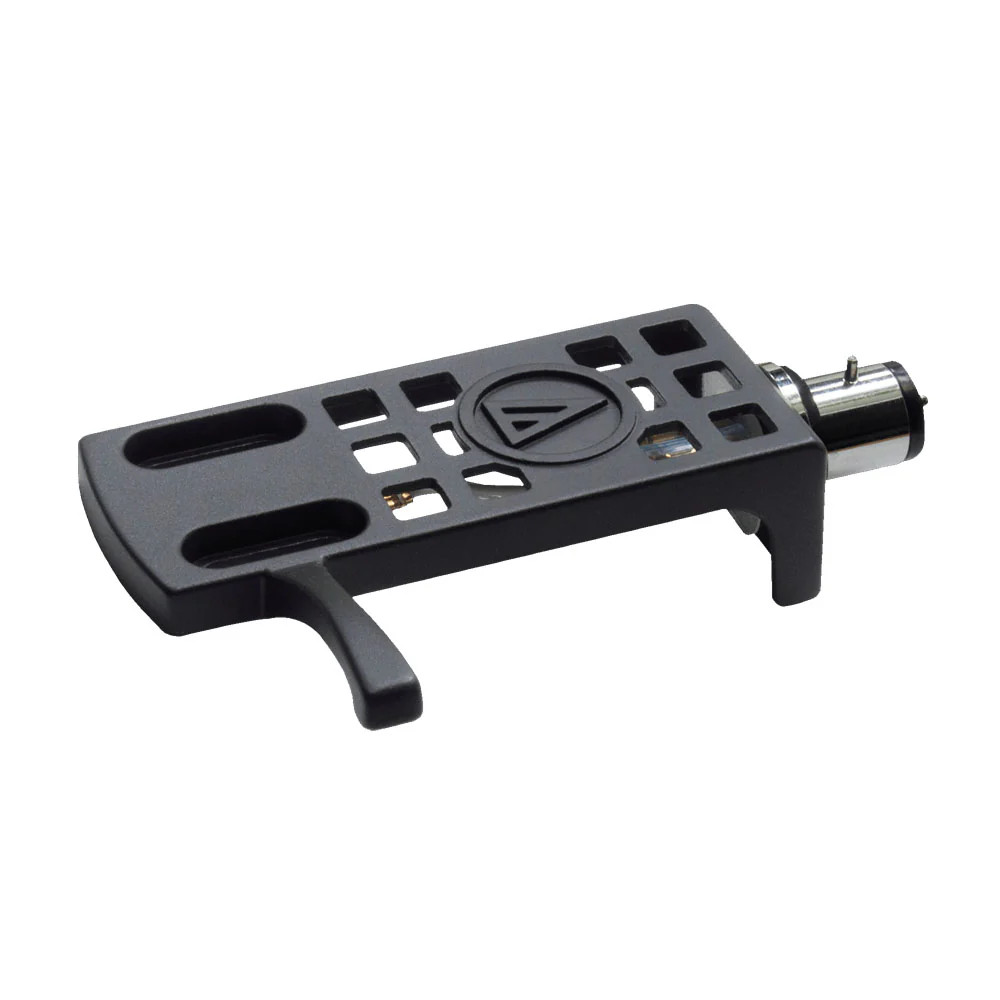

Pre-assembled with a lightweight aluminum AT-HS10 body for hassle-free use.
- Aluminum cantilever
- Para-toroidal coils improve lasing efficiency
- Center shield plate between left and right channels reduces crosstalk
- Pre-assembled with lightweight aluminum housing (AT-HS10) for faster and easier setup
The permalla plate shielding panel effectively separates the left and right channels while suppressing electrical crosstalk to levels below 40 dB. This is similar to the actual crosstalk value found in the grooves of the recording itself.
Characteristics:
- VM type type
- Mounting 1/2" centers
- Frequency response 20 - 23,000 Hz
- Channel separation 27 dB (1 kHz)
- Output channel balance 1.5 dB (1 kHz)
- Output voltage 4.0 mV (1 kHz, 5 cm/sec.)
- Vertical tracking angle 23
- Vertical tracking range 1.8 - 2.2g (standard 2.0g)
- Elliptical stylus shape
- Stylus size 0.3 x 0.7 mil
- Stylus Construction Bonded Round Shank
- Cantilever aluminum pipe
- Coil resistance 2,700 ohms (1 kHz)
- Static compliance 35 x 10-6 cm/din
- Dynamic compliance 8 x 10-6 cm/dyne (100 Hz)
- Recommended load resistance 47,000 ohms
- Recommended load capacity 100 - 200pF
- Weight 6.4 g
- Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
- Replacement Stylus VMN20EB
- Accessories Included: Screws for installing cartridge 5 mm × 2 and 10 mm × 2, Washer × 2, Hex nut × 2
Brand | Audio-Technica |
---|---|
Model | VM520EBH |
Type | Cartridge |
Frequency range | 20 Hz - 23 kHz |
Cartridge type | VM |
Output voltage | 4.0 mV (1 kHz, 5 cm/sec.) |
Channel separation at 1 kHz | 27 dB |
Channel imbalance | 1.5 dB (1 kHz) |
Optimal downforce | 2.0g |
Downforce Range | 1.8 - 2.2g |
Color | Black |
Dimensions | 17.3 x 17.0 x 28.2 mm |
Input load | 47 кОм |
Weight | 6.4 g |
Needle sharpening | Эллиптическая |
