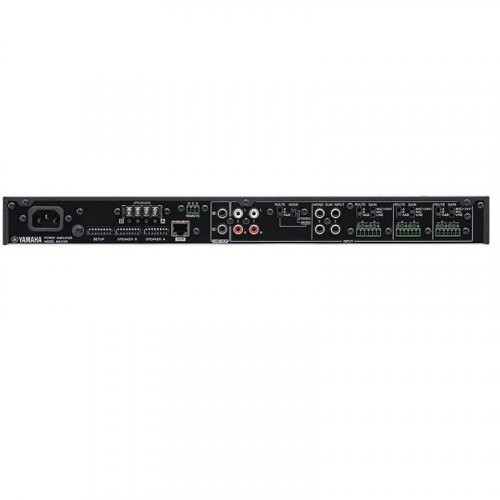

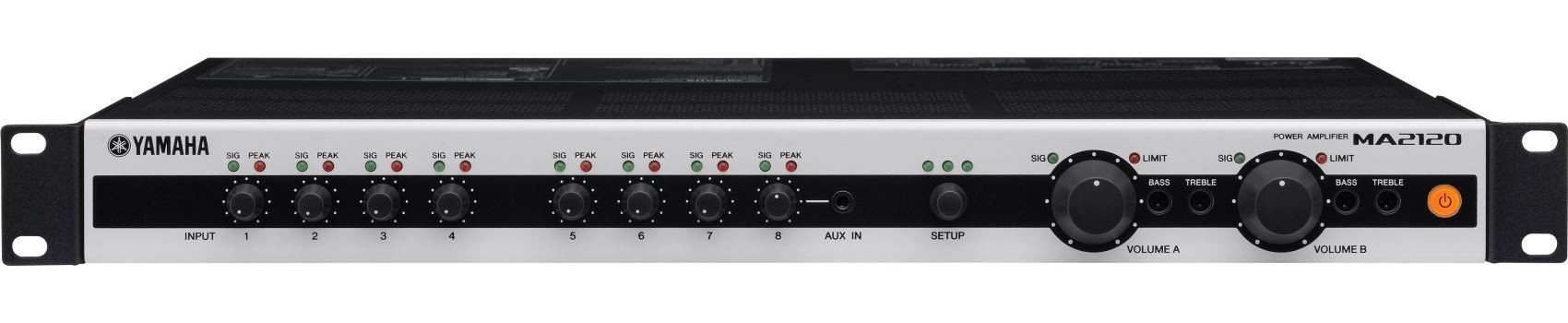

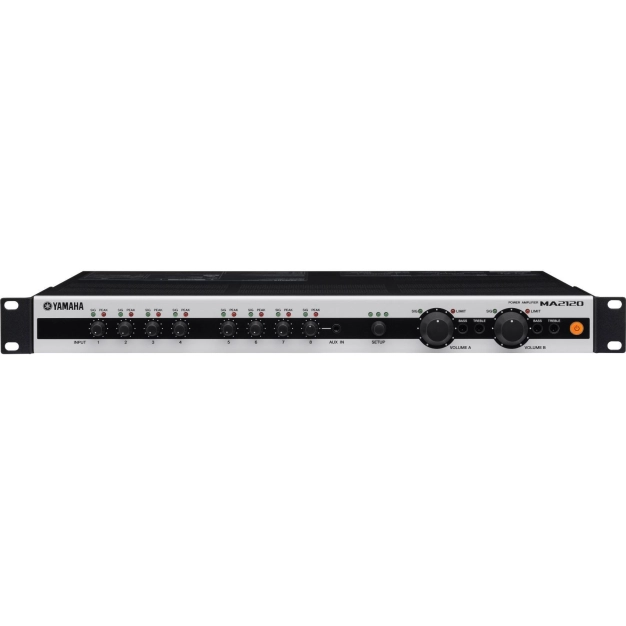

Power amplifier Yamaha MA2120 amplifier

The compact MA series amplifiers are the quintessence of Yamaha's years of experience in commercial audio and installation acoustics. They feature advanced functionality while maintaining ease of use.

The heart of the MA2120 is a high performance Class-D amplifier that is lightweight and energy efficient. The intelligent protection system inherited from Yamaha's flagship touring amplifiers reliably prevents damage to the amplifier or loudspeakers in the event of overload. For absolutely silent operation, all models of the MA/PA series amplifiers have a passive cooling system - forget about the whirring of fans.

Characteristics:

• power: 2x120W (4Ω), 2x100W (3Ω/8Ω) / 2x120W/1x200W (70/100V lines);
• frequency range: 0 dB, -2.5 dB, +1.0 dB (Line in to Line out, 20 Hz to 20 kHz), 0 dB, -3.0 dB, +1.0 dB (Line in to Speaker out, 50 Hz to 20 kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W);
• Analog Inputs: Mic/Line: Inputs 1-6 (3 x 3.5mm Euroblock 6-pin, balanced). Line: Inputs 7-8 Stereo RCA pin (unbalanced) x 2, Input 8: 3.5mm stereo mini-jack, Inputs 5-6: RCA (mono, unbalanced) x 4;
• analog outputs: Line output: mono RCA pin x 2 (unbalanced);
• dimensions: 480 x 45 x 379 mm;
• weight: 4.9 kg
