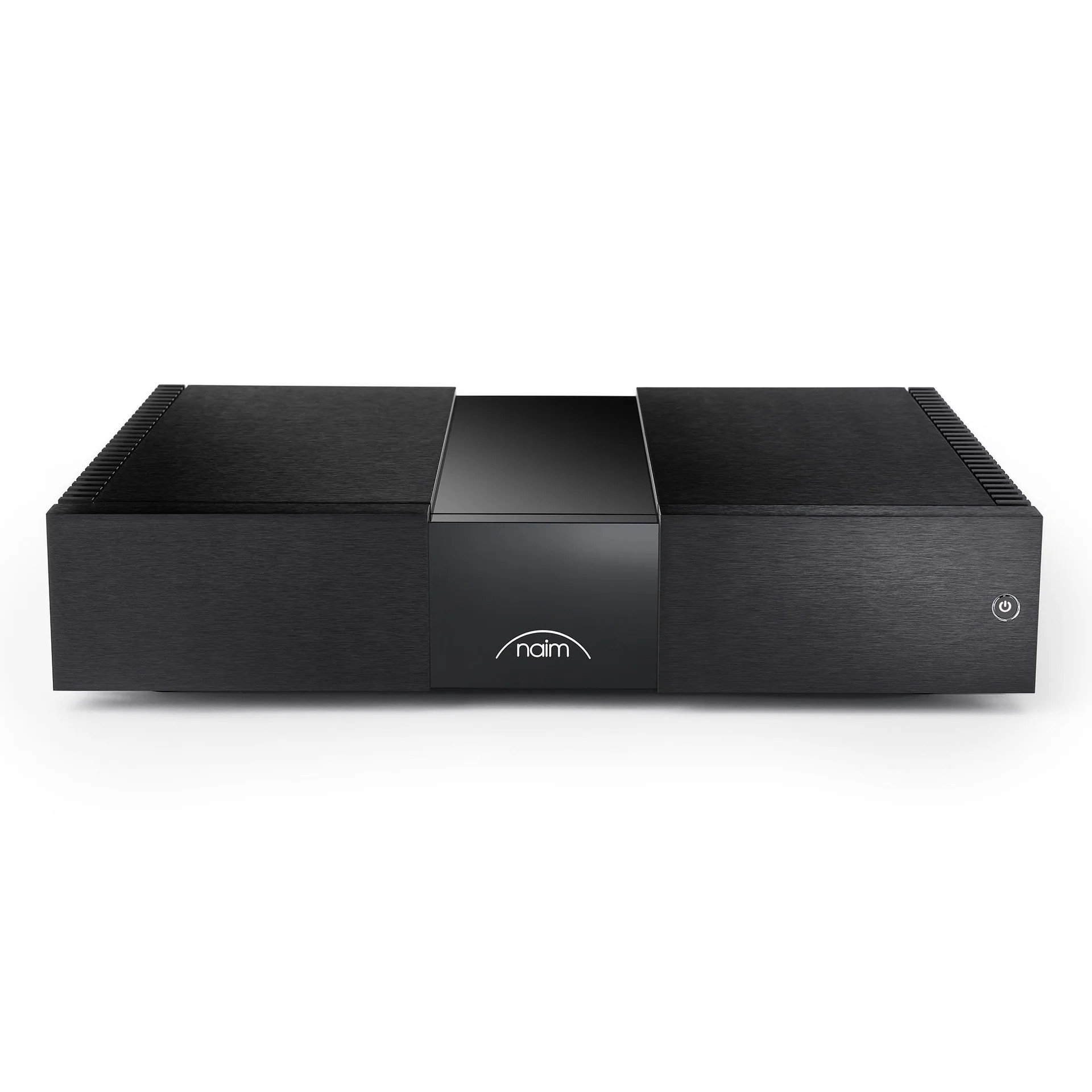

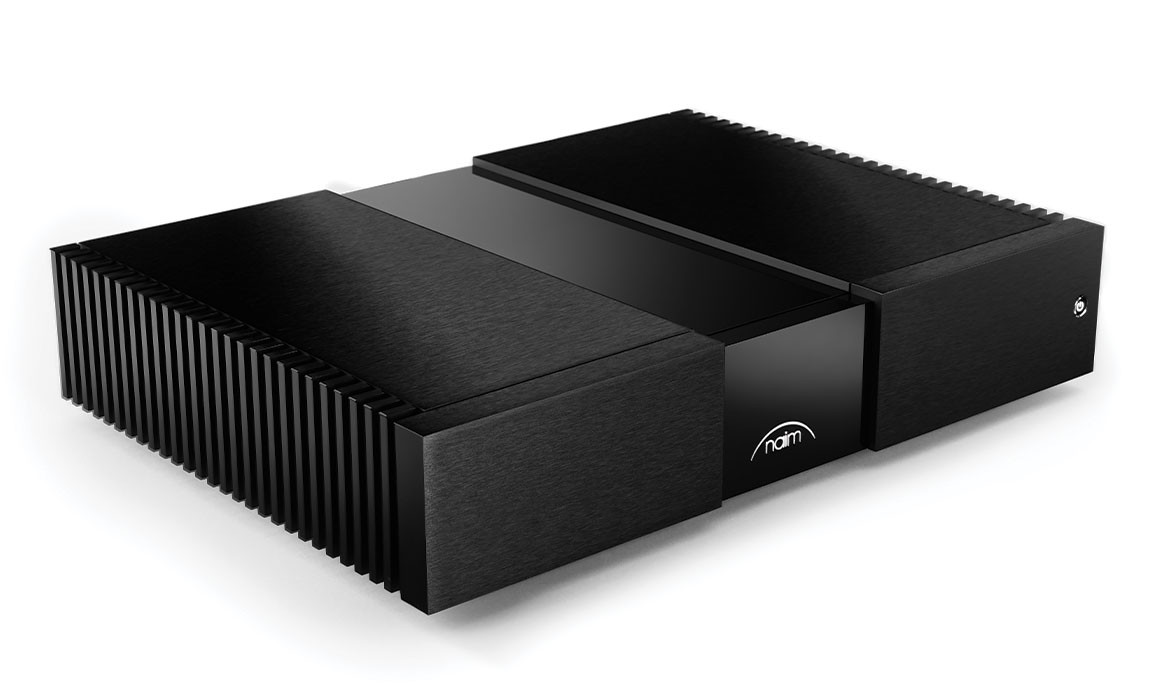

Naim NAP 350 monoblock power amplifier
Check availability and price
The NAP 350 reference power amplifier delivers high-fidelity sound reproduction and impressive power output, and is compatible with a range of Hi-Fi speakers. It can be used either independently or in combination with other amplifiers. Thanks to the silent cooling system, the amplifier is easy to connect and does not produce extraneous noise.
The 175W NAP 350 monoblock (up to 1.7kW output) delivers incredible dynamics and is compatible with the most demanding speaker systems. With a balanced XLR input for easy connection, the amplifier is compatible with a wide range of devices and can also be connected to one or more additional amplifiers.
Under the guidance of Technical Director Steve Sells, Naim's experienced engineers have developed custom circuits that are used in conjunction with high-performance DR technology to provide stable, low noise power - a prerequisite for superior amplifier performance. The device is equipped with the best audiophile quality components, such as NA009 transistors borrowed from the Statement line, a new power supply and capacitors made of polystyrene, which is considered one of the best dielectrics. All this improves the performance of the NAP 350.
type of product |
Amplifier |
Damping factor up to 8 |
36 |
Signal-to-noise ratio ref 100 W 8 A-weighted |
ref 175 W, 8 ohm, A-weighted: 114 dB |
Signal to noise ratio ref 1 W 8 A-weighted |
91 dB |
Input signal for limiting |
1.33 Vrms |
Peak current in 1 (1 kHz 1 ms) |
Peak +/-42 A (peak power 1.7 kW) |
Explosive Power 2 |
610 W, 2 Ohm at 1% THD+N |
Analog input |
1 x 47 kOhm, fully balanced via XLR |
Crosstalk |
NA (mono) |
SOI + noise |
0.006% |
Frequency response |
-3 dB at 1.4 Hz to 100 kHz |
Growth |
+29 dB |
Weight |
36.38 lbs (16.5 kg) |
Dimensions (HxWxD) |
35/8 x 17 x 121/2 inches (9.15 x 43.2 x 31.75 cm) |
Power supply |
115 V or 230 V, 50/60 Hz |
Power consumption |
Passive consumption: 24 W (standby) Standby consumption: <0.5W |
output power |
175 W, 8 Ohms at 0.1% THD+N (195 W at 1%) |
Brand | Naim |
---|---|
Model | NAP 350 |
Type | Усилители мощности |
Max power | 610 W, 2 Ohm at 1% THD+N |
Frequency range | -3 dB at 1.4 Hz to 100 kHz |
output power | 175 W, 8 Ohms at 0.1% THD+N (195 W at 1%) 345 W, 4 Ohms at 1% THD+N |
Inputs | 1 x 47 kOhm, fully balanced via XLR 1 x 34 kOhm, unbalanced, via legacy adapter |
THD + Noise | 0,006% |
Signal to noise ratio | 100 W - 114 dB, 1 W - 91 dB |
Power consumption | Passive consumption: 24 W (standby) Standby consumption: less than 0.5 W |
Color | Black |
Dimensions (H x W x D), mm | 91.5 x 432 x 317.5 mm |
Remote control | Есть |
Net weight | 16.5 kg |
Power supply | 115 V or 230 V, 50/60 Hz |
