Power amplifier Cary Audio CAD-805RS (PAIR) Black
Do you want to know more?
We are happy to answer all your questions, assist with the selection, and place your order.
Available from 9:00 AM to 9:00 PM
Delivery
In Kyiv:
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard
Delivery
In Kyiv:
Pickup is FREE
Revutskogo st., 5
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard

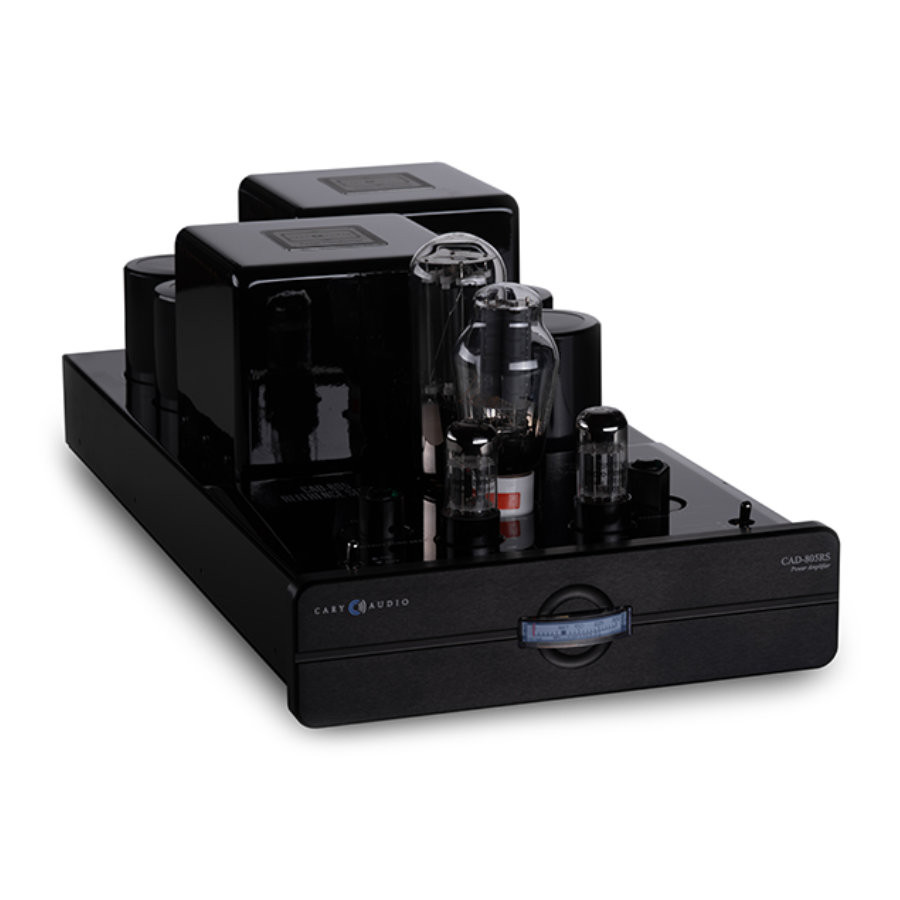

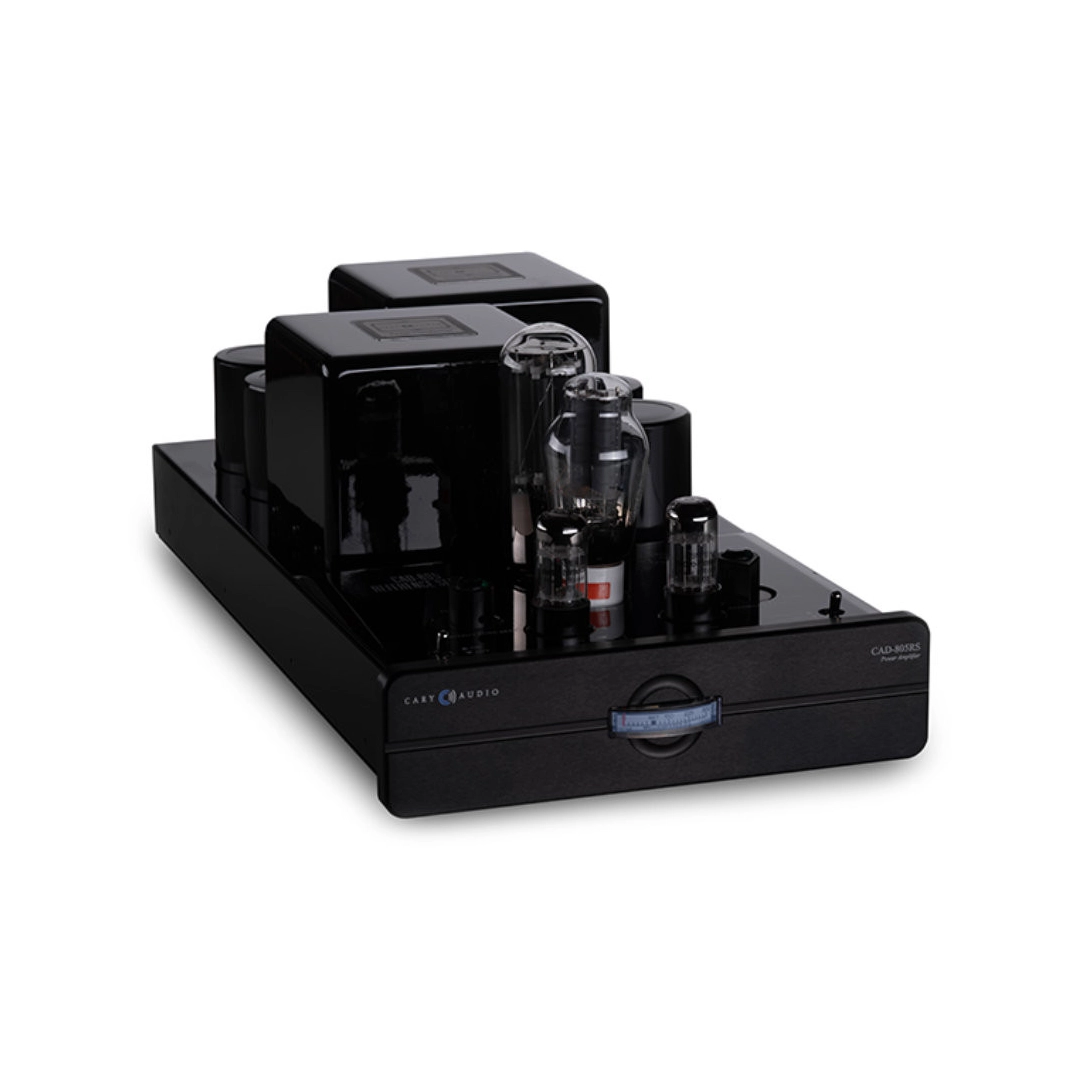

50 watts per channel, single-ended, pure Class A mono blocks with two 6SN7 tube input stages, a 300B tube driver stage, includes both 845 and 211 output tubes. Switch for output tube selection. Anthracite black chassis with anodized aluminum front panel.
View all products of the brand:
Cary Audio
The first monoblock CAD-805 from Cary Audio appeared in 1993. Over the course of 25 years, it has undergone several updates and now, in its anniversary year, has earned a place in the Reference line. The amplifier's circuitry is similar to the CAD-805 AE model. The input stage is made on a pair of 6SN7 double triodes: first the signal passes through the input stage on a double triode operating in parallel mode with resistor connections, and then enters the anode circuit built on the second lamp. The signal then travels through capacitors to the amplifier stage on a single 300B tube with an adjustable feedback level. You can install 211 or 845 tubes in the output stage (both are included in the kit). As a result, the amplifier produces 50 W of power in pure class A.

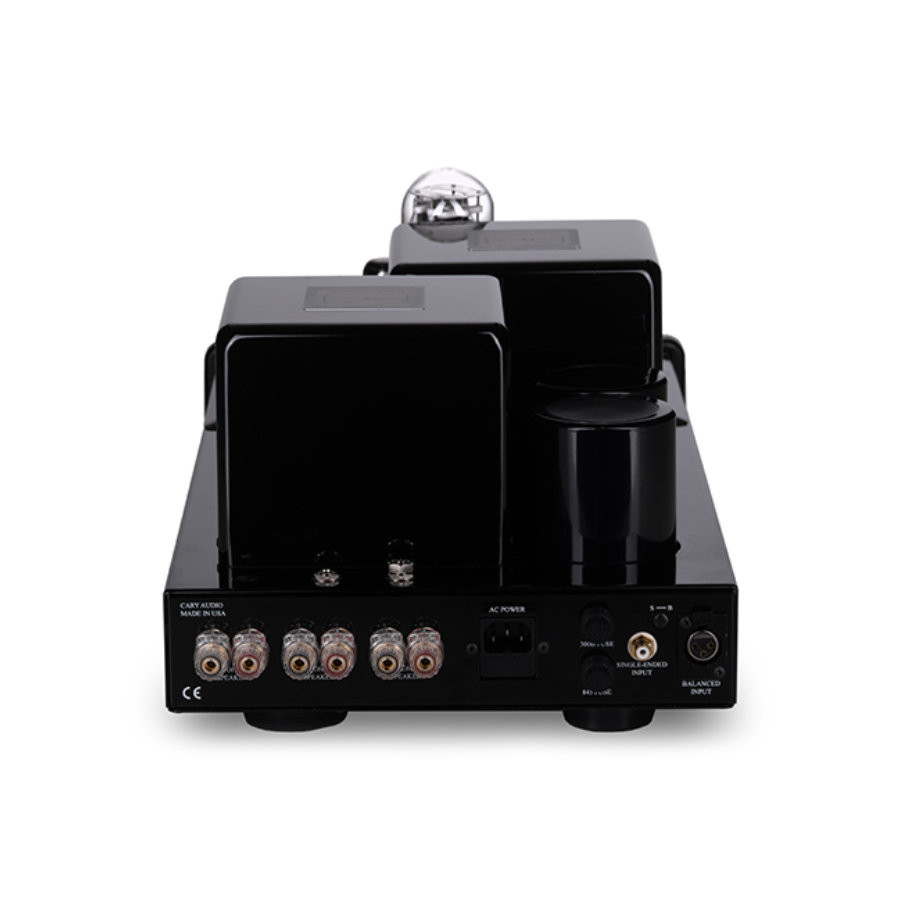

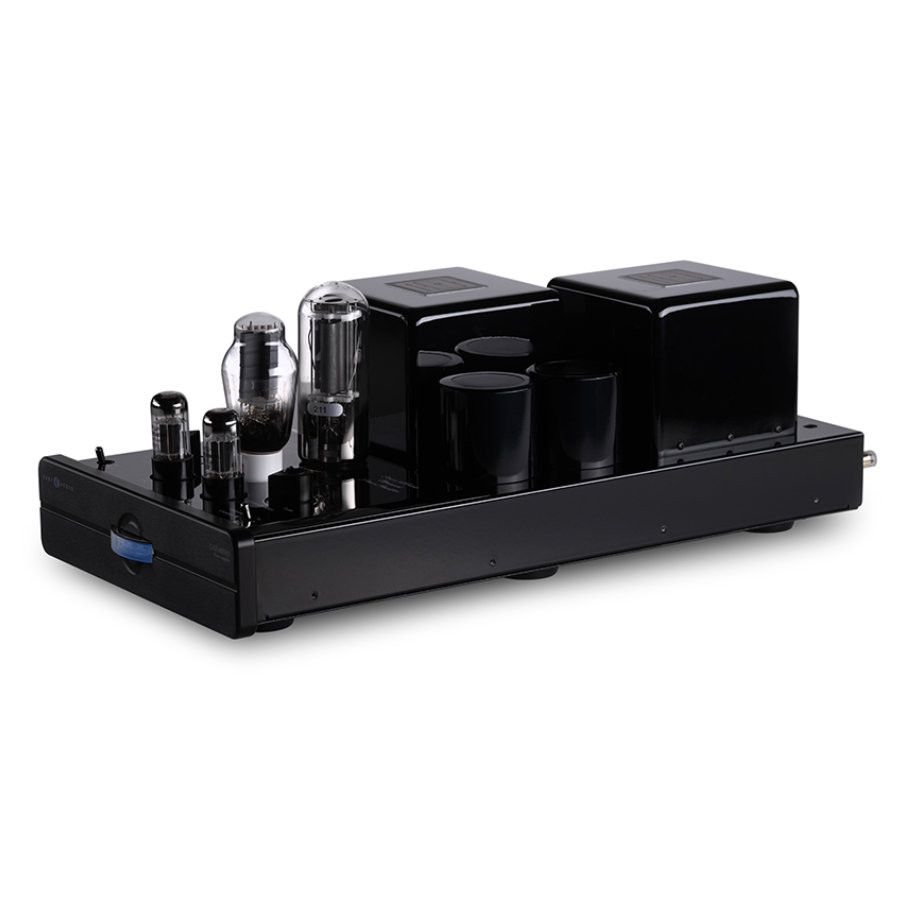

Behind the lamps are two massive transformers: one for the power supply, the other for the output stage. Four electrolytic capacitors are also located nearby. There is a bias current indicator on the front panel, but you can also connect an external one - the socket for it is located at the rear of the amplifier, in the same place as the bias current regulator. In terms of connectors, the CAD-805RS offers 4, 8 and 16 ohm speaker outputs and RCA and XLR inputs. There are two fuses located near the connectors on the rear panel - one for the 300B lamp, the other for the lamps in the output stage. The fuse is also built into the plug, and the power cord is removable.
Characteristics:
- Type: Tube Amplifier
- Remote control: no
- Country (head office): USA
- Type: Mono
- Power consumption, W: 230
- Power consumption in standby mode, W: 76
- Dimensions: 254 x 305 x 607 mm
- Weight, kg: 38.6
- Minimum frequency, Hz: 20
- Maximum frequency, Hz: 20000
- Signal to noise ratio, dB: 80
- Lamp model: 6SN7, 300B, 845, 211
- Gain channels: 1
- RDS (FM radio) support: no
- Direct mode: no
- Built-in DAC: no
- Phono stage: no
- Power per channel (4 Ohm), W: 50
- Power per channel, W: 50
- Power per channel (8 Ohm), W: 50
- Dial indicator: no
- Separate terminals for different resistances: yes
- Front panel headphone output: no
- Number of XLR analog inputs: 1
- Number of RCA line inputs: 1
- Headphone Out: No
- Color: Black/Black
| Brand | Cary Audio |
|---|---|
| Model | CAD-805RS |
| Type | Усилители мощности |
| Frequency range | 20 Гц - 20 кГц ( ±3 Дб ) |
| Power per channel at 4 ohms | 50 W |
| Power per channel at 8 ohms | 50 W |
| Number of channels | 1 |
| Signal to noise ratio | 80 dB |
| Power consumption | 230 W, standby 76 W |
| Color | Black |
| Dimensions | 254 x 305 x 607 mm |
| Amplifier type | Tube |
| Weight, kg | 38,6 |
