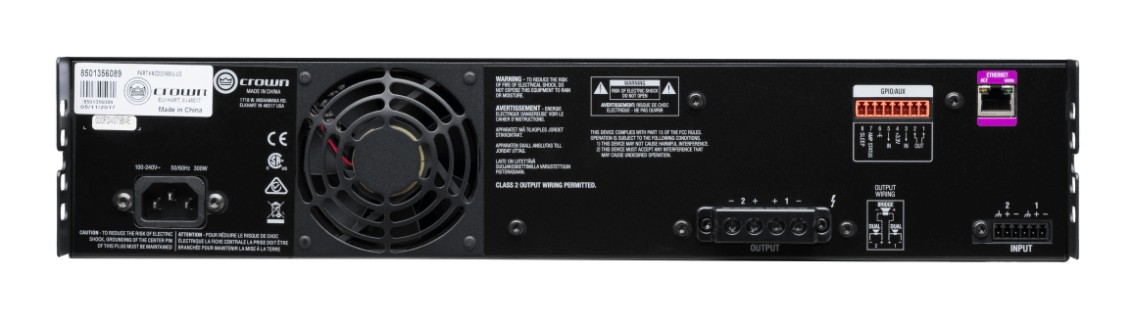

Power Amplifier CROWN CDi DriveCore 2|600

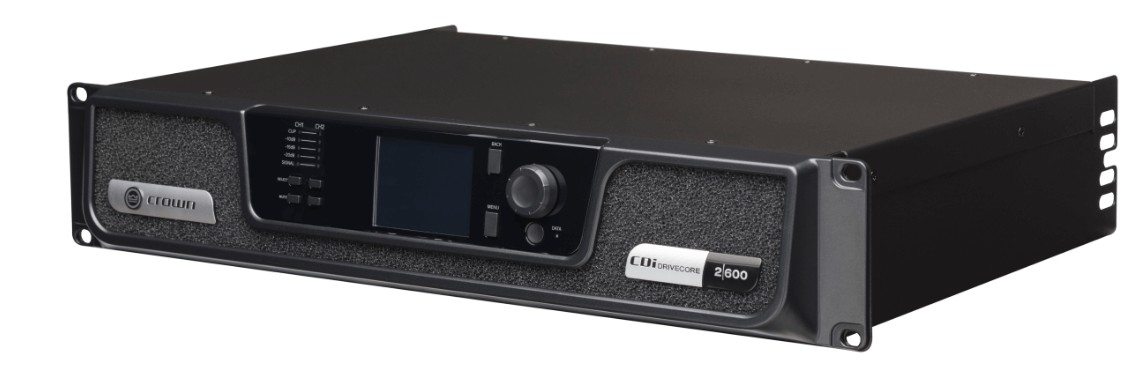

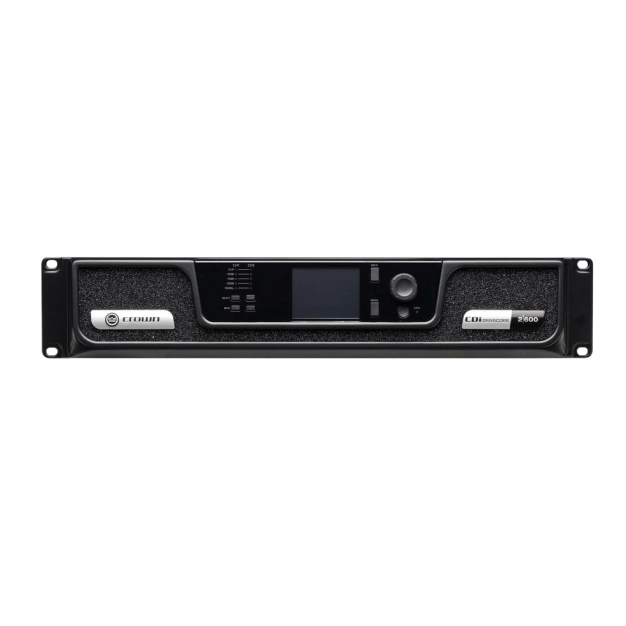

The Crown CDi DriveCore 2|600 is a two-channel amplifier with DSP
The Crown CDi DriveCore 2|600 is a two-channel amplifier with DSP. Amplifier power: 300W x 2 (2 ohms), 600W x 2 (4 ohms), 600W x 2 (8 ohms), 300W x 2 (16 ohms), 600W - 70/100V. All amplifiers of the American brand Crown, the CDi DriveCore series, combine a rich feature set with an unparalleled high level of performance. Each model of the CDi DriveCore line is capable of operating with low-resistance loads from 2 to 16 ohms, as well as in broadcast systems - 70/100V. These power amps feature 32-bit DSPs that include an 8-band parametric EQ, crossover, LevelMax limiters and delay.

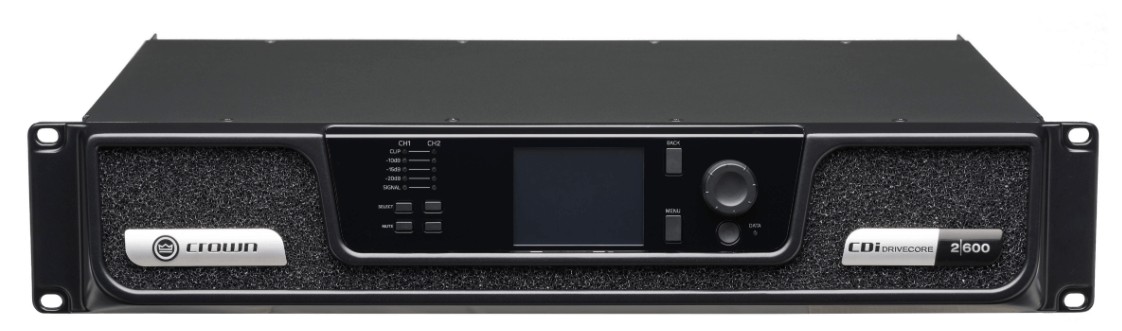

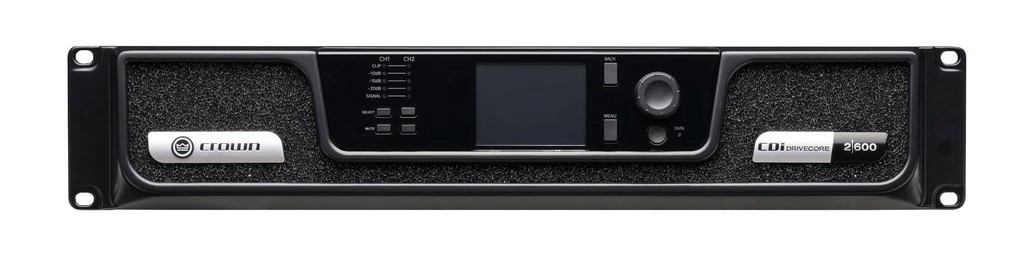

These amplifiers can be controlled either manually or via a network connection. On the front panel is a bright, color LCD display. The possibility of remote monitoring and control over the TCP/IP network protocol has been implemented. There is a set of ready-made factory tuning presets and slots for 19 user presets. Intelligent protection system against short circuits, DC output, overheating and voltage surges.
Country of origin: CHINA
Type: | amplifier |
Number of channels: | 2 |
Output power: | 300W (2 ohms) / 600W (4 ohms) / 600W (8 ohms) / 300W (16 ohms) / 600W (70/100V) (stereo mode); 600W (4Ω) / 1200W (8Ω) / 1200W (16Ω) / 1200W (140/200V) (Bridge mode) |
Input sensitivity for full rated power (at 4 ohms): | 0.7V (-0.8dBu, -3.0dBv) - 37dB/8Ω |
DSP Processor: | 96 kHz, 32-bit |
Voltage (at maximum level): | 34 dB |
Frequency response (8 ohms): | 20Hz - 20kHz, +/-0.5dB |
Signal to noise ratio: | >108 dB |
Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz): | 0.35% |
Analog input signal to noise figure (rated power, 100 V, 20 Hz - 20 kHz): | >104 dB |
Intermodulation distortion: | ≤0.35% |
Damping factor, 20Hz-100Hz: | > 1000 |
Crosstalk (below rated power, 20 Hz - 1 kHz): | >80 dB |
Common mode rejection ratio: | >70 dB |
DC output offset: | ±10 mV |
Input impedance: | 20 kΩ balanced, 10 kΩ unbalanced |
Maximum input level: | +20 dBu |
Nutrition: | 220-240 V, 50/60 Hz |
Power supply connector: | IEC connector |
Cooling system: | forced system, ventilation type, through ventilation, 3 modes |
Load impedance (stereo mode): | 2 ohm - 16 ohm; 70/100V |
Load resistance (Bridge mode): | 4 ohm - 16 ohm; 140/200 V |
Maximum Fan Noise: | 51 dBA |

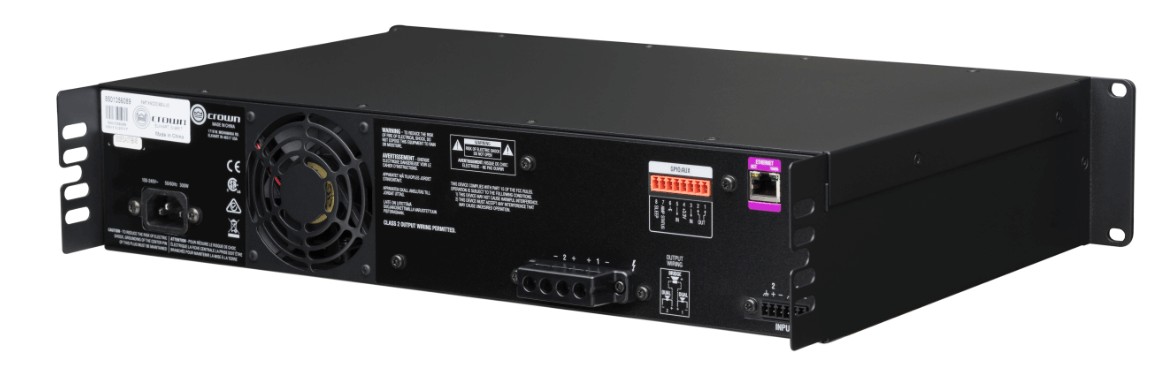

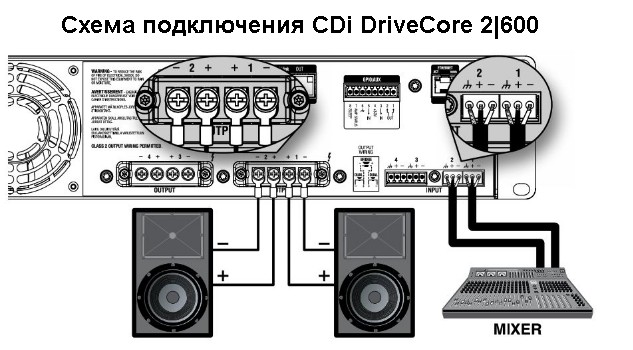

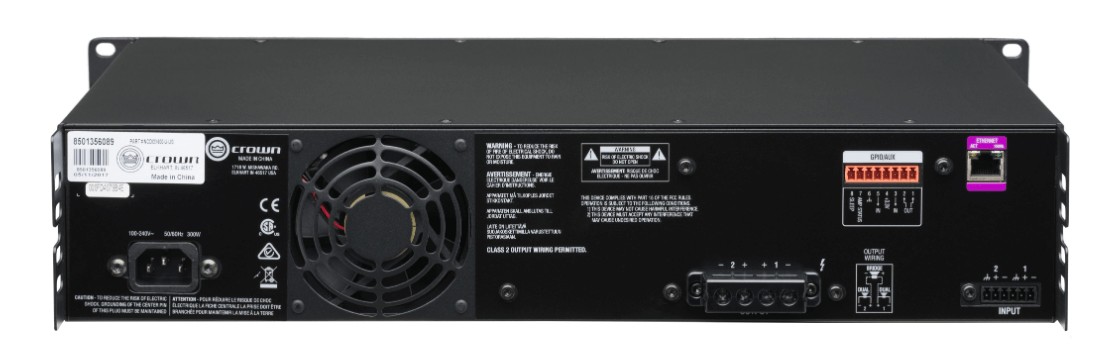

Inputs: | switching terminals, RJ45 network connector |
Outputs: | switching terminals |
Electronic overload protection: | eat |
Short circuit protection: | eat |
Dimensions (W x D x H): | 483 x 344 x 89mm |
The weight: | 6.6 kg |
Brand | Crown |
---|---|
Model | CDi DriveCore 2|600 |
Type | усилитель мощности |
Frequency range | 20 Гц - 20 кГц, +/-0.5 дБ |
output power | 300 Вт (2 Ом) / 600 Вт (4 Ом) / 600 Вт (8 Ом) / 300 Вт (16 Ом) / 600 Вт (70/100 В) (режим стерео); 600 Вт (4 Ом) / 1200 Вт (8 Ом) / 1200 Вт (16 Ом) / 1200 Вт (140/200 В) (режим Bridge) |
Inputs | коммутационные клеммы, сетевой разъем RJ45 |
THD + Noise | 0.35% |
Nutrition | 220-240 В, 50/60 Гц |
Country of manufacture | Китай |
Sensitivity | 0.7В (-0.8 дБу, -3.0 дБв) - 37 дБ/8 Ом |
Input impedance | 20 кОм сбалансированное, 10 кОм несбалансированное |
Dimensions (W x D x H), mm | 483 х 344 x 89 мм |
Weight | 6,6 кг. |
