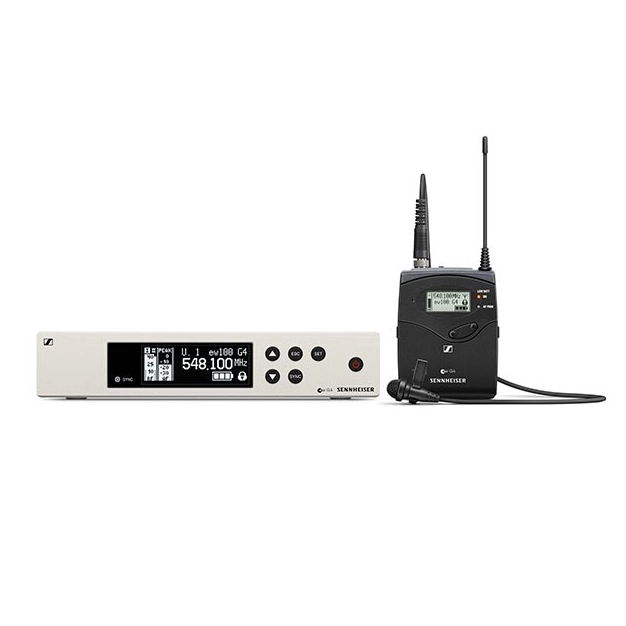

Radio system Sennheiser EW 100 G4-ME2

Universal protected microphone system for professional work with live sound, designed specifically for presenters and moderators.

The all-in-one wireless microphone system is made in a reliable and durable case and is designed for professional presenters and moderators. The model provides a bandwidth of up to 42 MHz with a choice of 1680 tunable reception frequencies in a stable UHF band and the function of simultaneously and quickly tuning up to 12 connected receivers.

Designed for everyday active use, the system is equipped with a compact wireless bodypack transmitter in a well-protected housing and a miniature lavalier microphone ME 2-II (omnidirectional), capable of providing the highest quality speech transmission and allows you to work with full dedication on any stage and in any conditions.

Benefits of the Sennheiser EW 100 G4-ME2

• Versatile, highly protected microphone system for professional live sound
• designed specifically for professional presenters and moderators;
• equipped with a wireless bodypack transmitter in a lightweight and durable aluminum housing and lavalier microphone ME 2-II (omnidirectional);

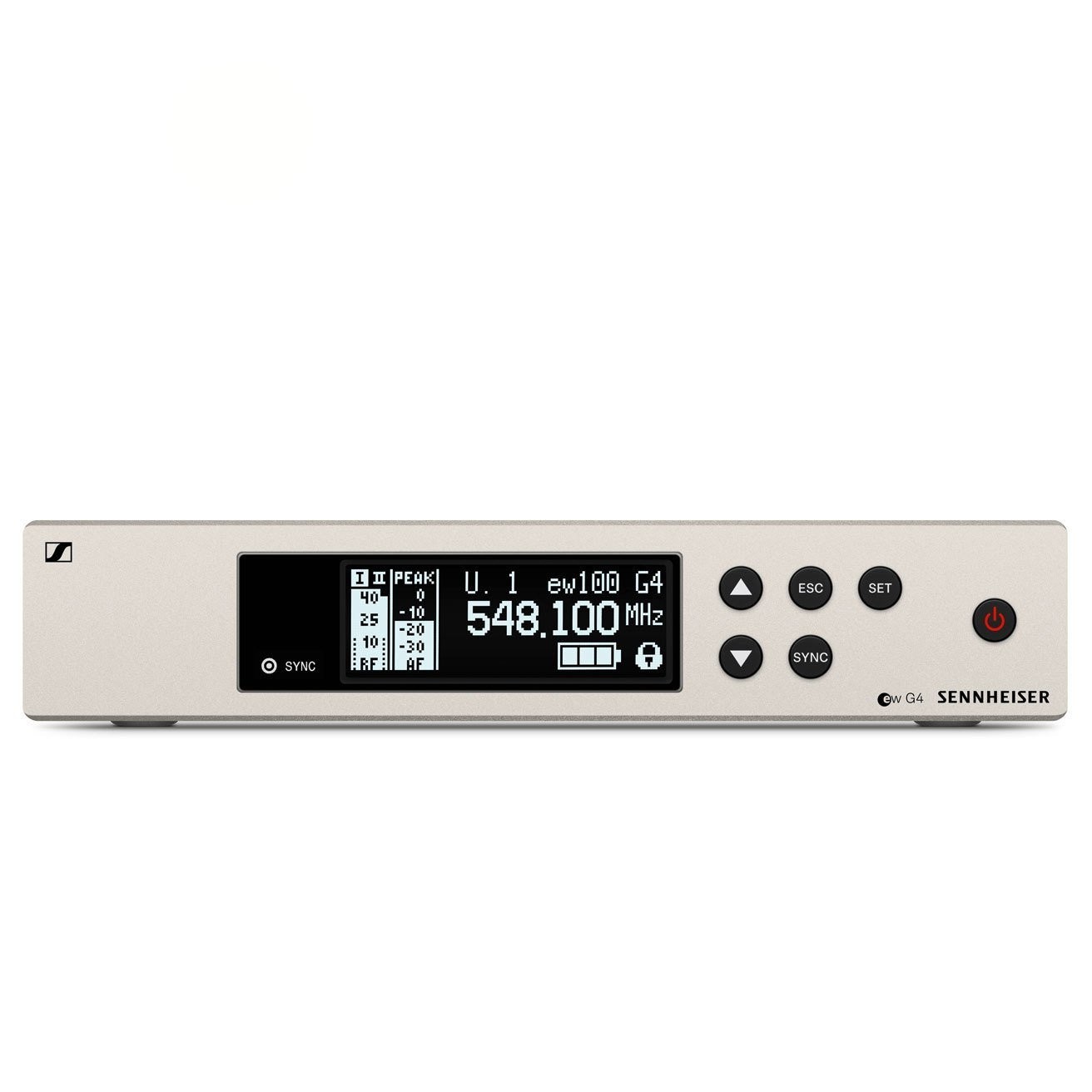

• the receiver True Diversity (technology "true diversity") is made in an all-metal case the size of half the width of the rack and is equipped with an informative and intuitive LCD screen;
• synchronization of the transmitter and receiver is easy and simple - through the infrared port;
• the new "binding" function allows you to very quickly assign frequencies to each of the receivers (max. up to 12 units);
• up to 20 compatible channels;
• bandwidth up to 42 MHz with a choice of 1680 configurable reception frequencies in the UHF band;
• signal transmission radius - up to 100 m;
• increased signal transmission power - up to 30 mW (in some countries it may be limited by law).

Equipment

• diversity receiver EM 100 G4 True Diversity;
• bodypack transmitter SK 100 G4;
• lavalier microphone ME 2-II with clip;
• proprietary Sennheiser GA 3 adapter for installing the system receiver in a standard 19" rack;
• power unit;
• 2 AA batteries;
• 2 antennas;
• RJ 10 cable;
• quick user guide for quick connection of the system;
• quick user guide for safe operation of the system.

Main technical characteristics:

• RF frequency range, MHz: A: 516 - 558 MHz; B: 626 - 668 MHz; C: 734 - 776 MHz; D: 780 - 822 MHz;
• Number of frequencies: 1680
• Frequency bandwidth, MHz: 42
• Musical frequency range, Hz: 25 - 18000
• Signal-to-noise ratio, dB(A): 110
• Harmonic distortion factor, %: less than 0.9%
• Output level (balanced XLR output), dBu: XLR: +18 dB (max.)
• Output level (Unbalanced output Jack), dBu: 6.3 mm jack: +12 dB (max.)
• Receiver power: 12 V DC
• Receiver dimensions, mm: 190 x 212 x 43
• Receiver weight, g: 980
• RF transmitter output signal power, mW: 30
• Transmitter power, V: 2 AA batteries, 1.5 V or BA 2015 accupack
• Duration of continuous operation of transmitter batteries, h: 8
• Microphone type: pre-polarized condenser; dynamic
• Microphone directivity: omnidirectional
• Transmitter dimensions, mm: 82 x 64 x 24; 50×265
• Transmitter weight, g: 160
