Radio system Sennheiser EW 300 G4-HEADMIC1-RC

The Sennheiser evolution wireless 300 G4-HEADMIC1-RC wireless microphone system is optimally suited for both commercial and educational applications and meets the current (and even future) requirements for audio equipment in today's higher and secondary educational institutions.

In any working situation, anytime, anywhere, the G4 300 guarantees a sufficiently powerful and reliable audio signal with an extended up to 88 MHz and configurable bandwidth. With 11 frequency options in the 470-865 MHz range, it more than compensates for any regional legal restrictions, because the ew 300 G4 is, first of all, the ability to work quietly on any stage, including multi-channel systems, including both portable and stationary microphones .

Professional presenters and moderators call the ew 300 G4 "all in one" because it delivers the highest quality sound at events of all sizes and sizes, in a wide variety of environments, indoors and outdoors. Any public speaking - lectures, meetings with voters, conferences, presentations and trainings, music shows and live concerts - this is exactly what the ew 300 G4 microphone system can and is ready to work with.

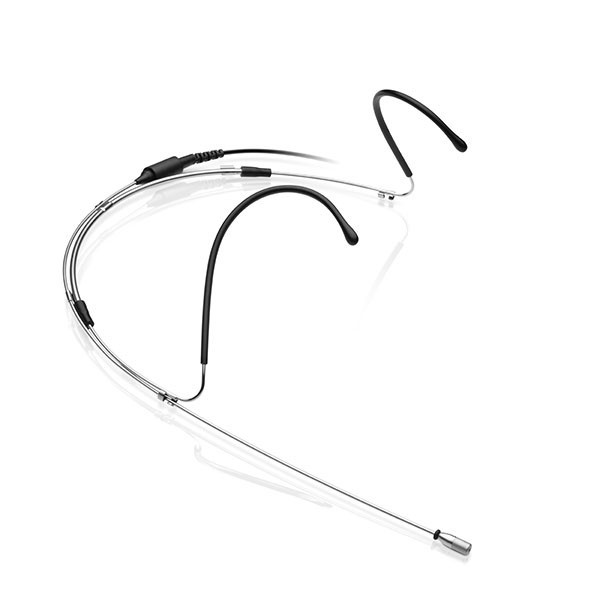

The model is equipped with a wireless bodypack transmitter with a remote "Mute" switch, a professional SL HEADMIC 1 microphone with an omnidirectional Sennheiser MKE 1 microphone capsule and a lightweight, very comfortable and almost invisible headset. SL HEADMIC 1 is optimized for spoken language and is ideal for live performances such as lectures, presentations, stand-up shows and more. The headset weighs only 7 grams, so it is always equally comfortable in it, even if you have to work for several hours in a row.

Benefits of the EW 300 G4-HEADMIC1-RC

• universal wireless microphone system of the latest, fourth generation;
• powerful and stable wireless signal (with the possibility of manual step-by-step adjustment - 10 / 30 / 50 mW);
• simple and intuitive control;
• minimum time for pre-configuration;
• the built-in network port allows you to manage the system, monitor its operation and make all the necessary settings through the Sennheiser Control Cockpit and Wireless Systems Manager applications (including remotely);
• a large set of accessories and compatibility with various Sennheiser microphones and microphone capsules;
• bandwidth - up to 88 MHz, support for up to 32 channels;
• signal transmission radius - up to 100 m;
• Pairs perfectly with the Sennheiser LSP 500 PRO Wireless Speaker Set to form a fully functional, mobile and fully wireless speaker system for events of all sizes and sizes.
• The transmitter is equipped with a remote "Mute" switch.

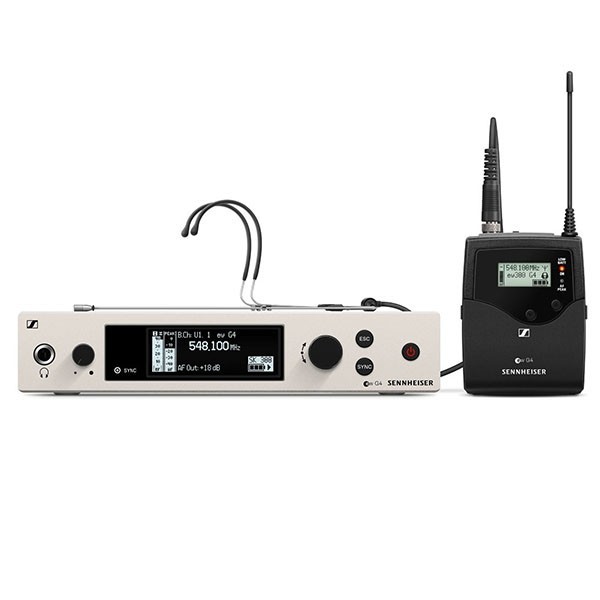

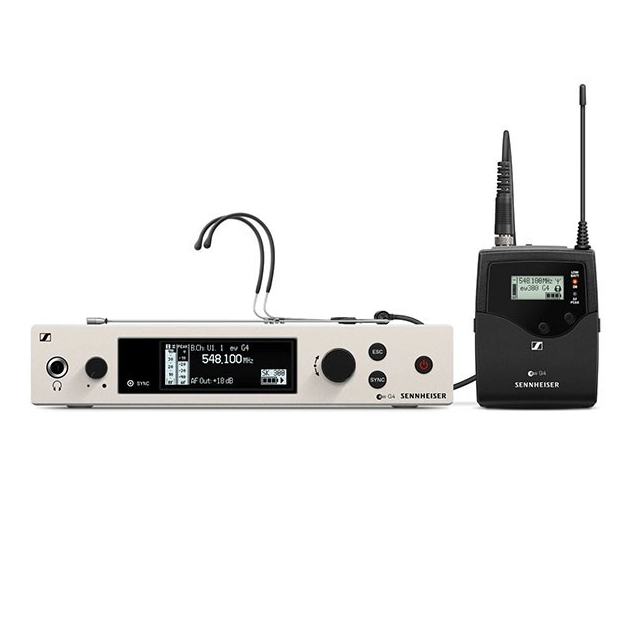

Equipment

• diversity receiver EM 300-500 G4 True Diversity;
• compact bodypack transmitter SK 300 G4;
• SL HEADMIC 1 microphone with lightweight headset;
• proprietary Sennheiser GA 3 adapter for installing the system receiver in a standard 19" rack;
• power unit;
• 2 AA batteries;
• 2 antennas;
• quick user guide for quick connection of the system;
• quick user guide for safe operation of the system.

Main technical characteristics:

• RF frequency range, Aw+: 470 - 558 MHz ; Bw: 626 - 698 MHz ; Cw: 718 - 790 MHz; Gw: 558 - 626 MHz
• Number of frequencies: 3520
• Frequency bandwidth, MHz: 88
• Musical frequency range, Hz: 25 - 18000
• Signal-to-noise ratio, dB (A): more than 115
• Harmonic distortion factor, %: less than 0.9%
• Output level (balanced XLR output), dBu: XLR: +18 dB (max.)
• Output level (Unbalanced output Jack), dBu: 6.3 mm jack: +12 dB (max.)
• Receiver power: 12 V DC
• Receiver dimensions, mm: 202 x 212 x 43
• Receiver weight, g: 980
• RF transmitter output signal power, mW: 30
• Transmitter power, B: 2 AA batteries, 1.5V or BA 2015 accupack
• Duration of continuous operation of transmitter batteries, h: 8
• Microphone type: pre-polarized condenser
• Microphone directivity: omnidirectional
• Transmitter dimensions, mm: 82 x 64 x 24;
• Transmitter weight, g: 160
