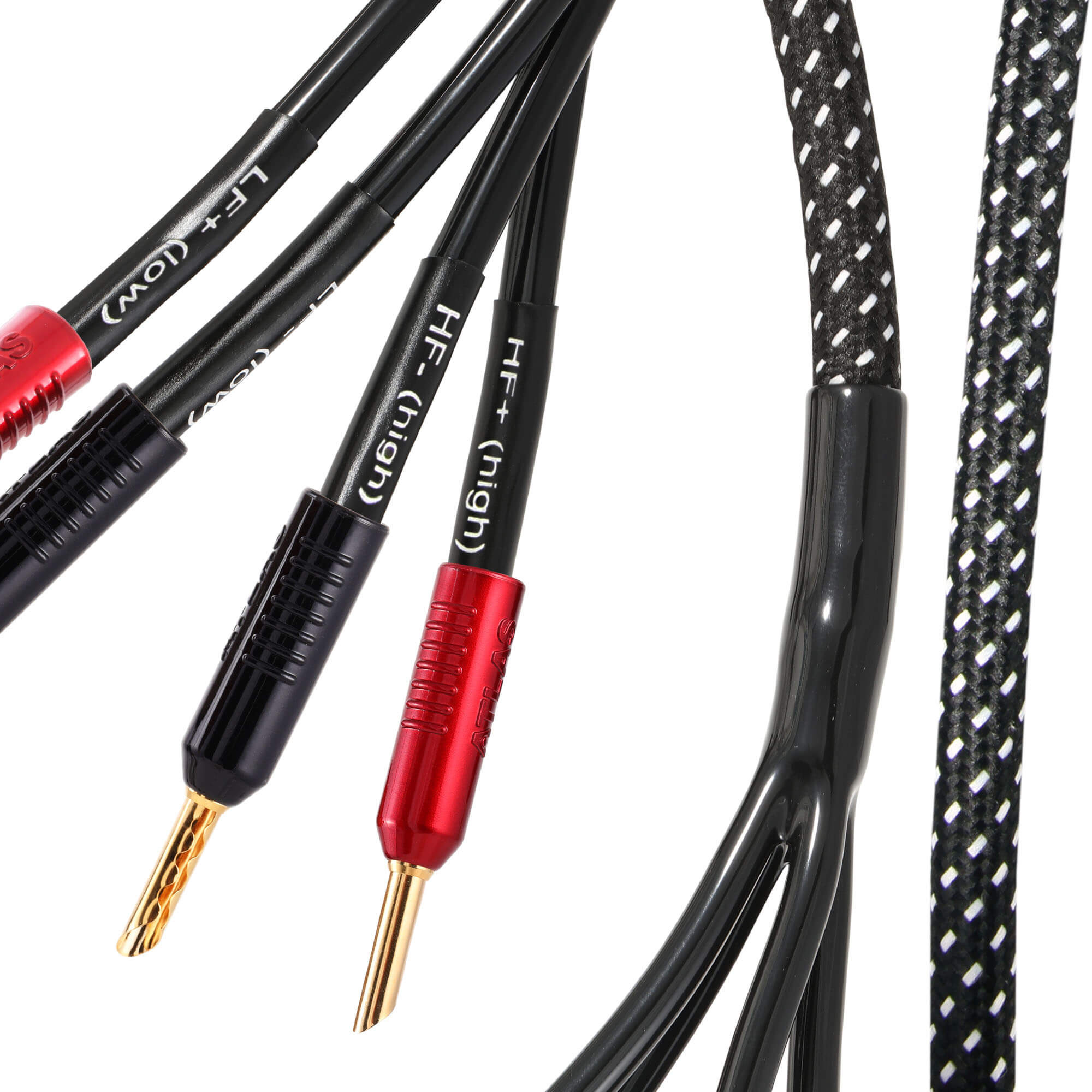

Acoustic cable Atlas Hyper Achromatic Bi-wire 4-4 3 m with bananas Z plug

Bi-wire is a version of the legendary Hyper cable. Bi-wire cables can improve the sound - depending on the speakers used, the quality of the crossover and the possibility of separate amplification (bi-amping). A sophisticated cable design that provides increased levels of sound transparency and expanded dynamic range.

The Hyper speaker cable is made of 72 conductors with a cross section of 0.25 mm² from ultra-pure oxygen-free copper OFC (99.9999%), coated with a highly efficient Teflon dielectric. The entire structure rests in an anti-vibration filler inside a black shell. The Bi-Wire version of the Hyper speaker cable significantly improves the high-frequency sound.

The cable uses the proprietary Transpose modular connector system. Cables are terminated with patented Achromatic Z-plug connectors, lightweight connectors with a solder-free, self-cleaning design. In addition, 4mm banana or spade connectors are available in OFC copper (gold-plated or silver-plated).

Technical characteristics of Atlas Hyper Achromatic Bi-wire Z-plug

• Type: speaker cable
• Conductor cross-sectional area: 2.0/1.2 mm²
• Construction: Concentric stranded conductor for LF/MF, solid core conductor for HF (1.2 mm²)
• Conductor material: OFC 6n oxygen-free copper
• Dielectric: microporous Teflon PTFE
• External insulation: polyvinyl chloride (PVC)
• Outer braid: no
• Connectors: Achromatic Z-plug
• Termination configuration: Bi-Wire 4-4
• Capacitance: 163.98 pF/m
• Resistance: 0.0060 ohm/m
• Inductance: 0.2303 µH/m
• Signal propagation speed: 0.690
• Section shape: round
• Outer section: 8.5mm
• Length: 3.0 m
