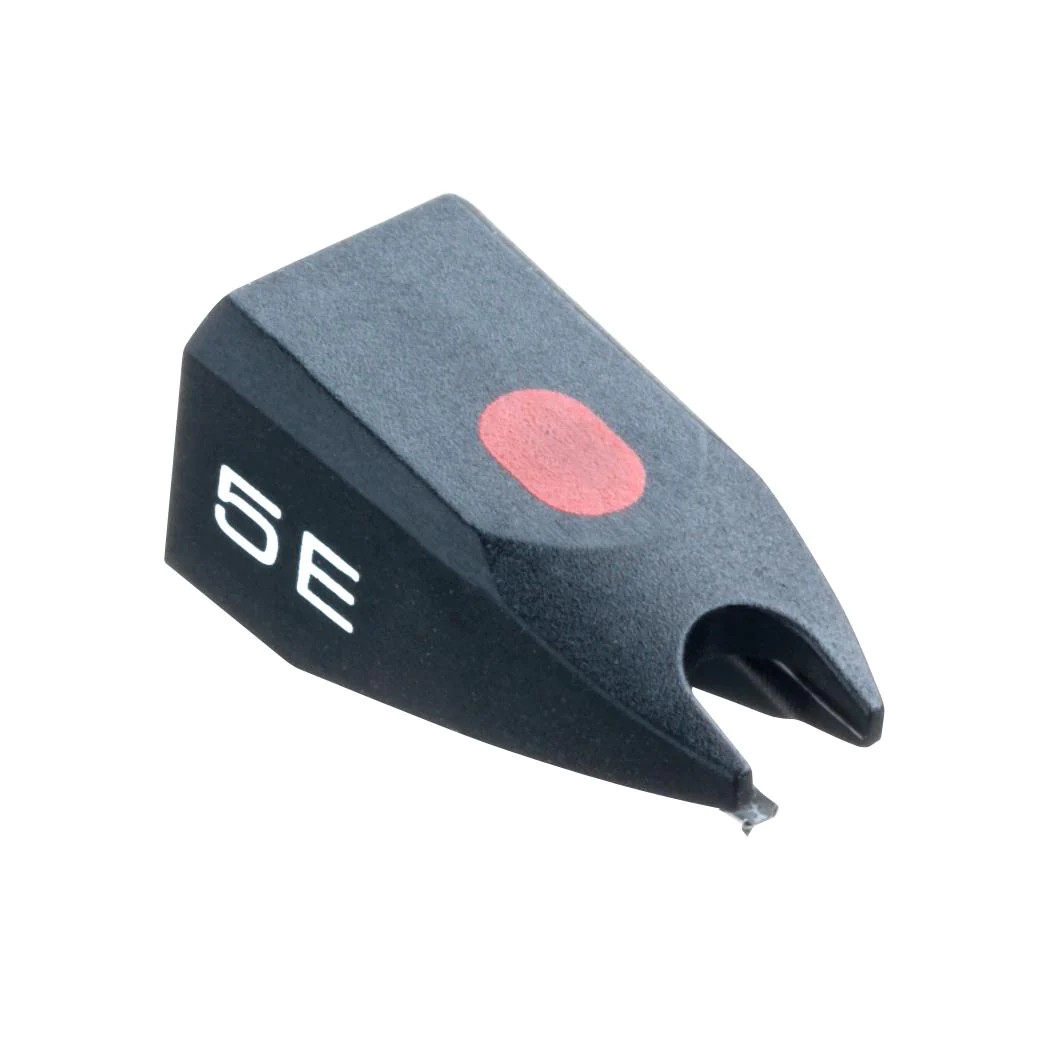

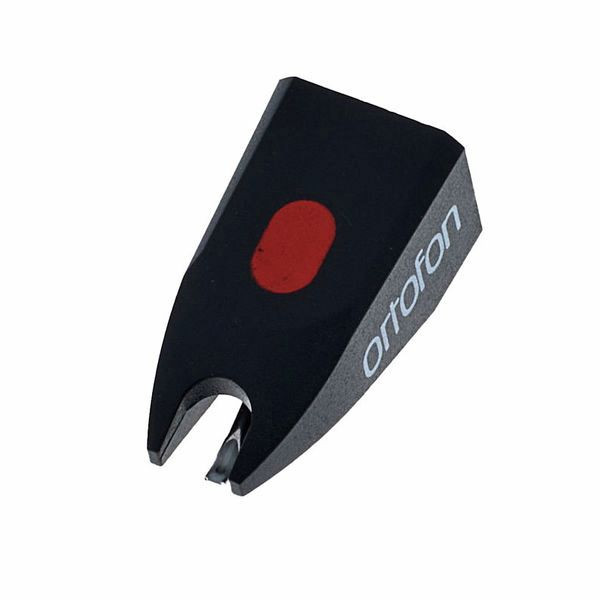

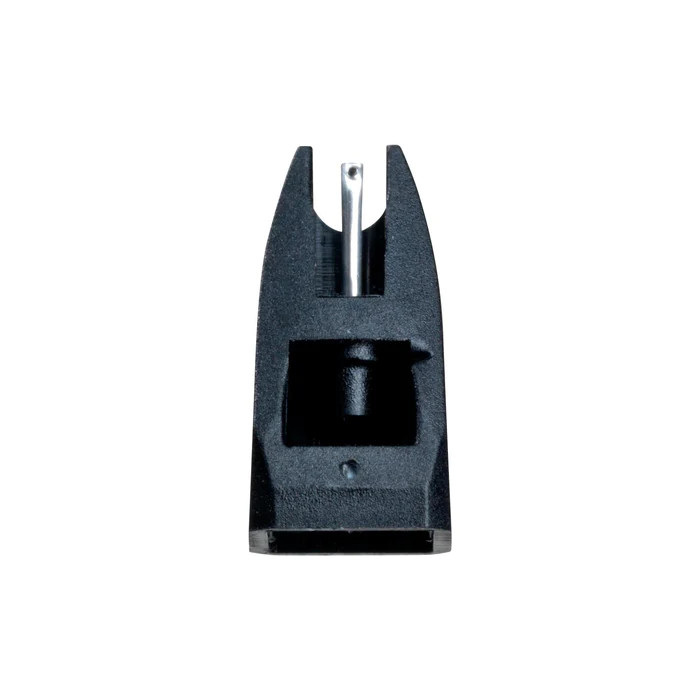

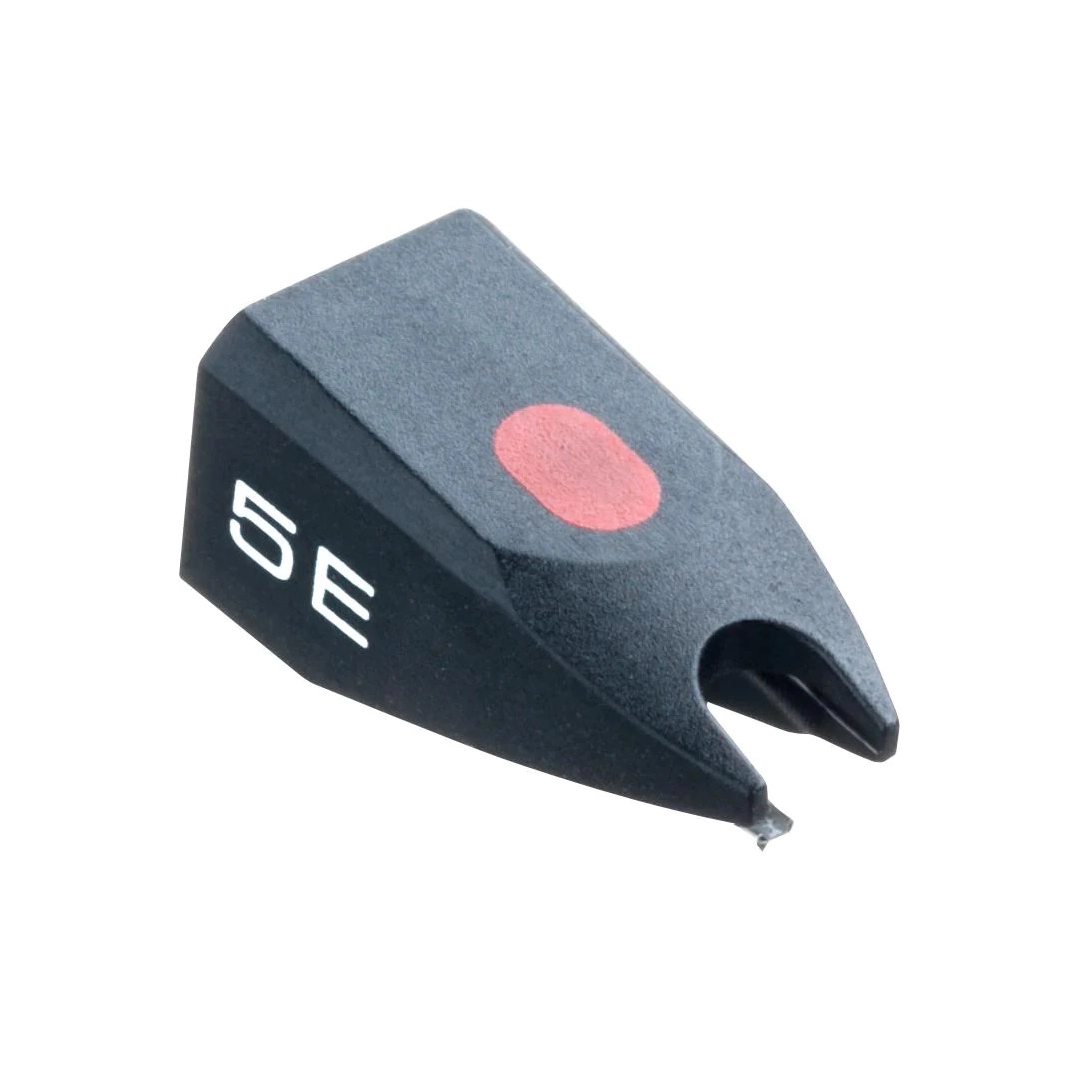

Stylus Ortofon cartridge STYLUS 5 E

The head has a high output voltage (4 mV), which allows you to connect it to almost any standard phonorector with a nominal input impedance of 47 kOhm. The case material is a combination of Noryl polymer and glass and is characterized by increased rigidity and resistance to resonances. A lightweight magnetic system is used. Attached to the lightweight cantilever is a diamond stylus with an elliptical profile that provides precise track tracking for a balanced, clear sound. The removable front body (including the cantelliver) allows for quick replacement, and since all OM heads are of a similar design, it is possible to upgrade the OM5E to a higher level by installing an older model OM10, OM20, OM30 or OM40 stylus. The cartridge weighs only 5g and can be used with most modern tonearms.

Its installation and adjustment is not particularly difficult, and to facilitate this process, there is a special red oval mark on the body. The company's recommended downforce is 1.75 m. The model will be an excellent option for replacing the complete pickup heads of entry-level vinyl players. Thanks to its well-thought-out design, it can provide excellent natural sound with correct tonal balance, good detail and musicality. The head reproduces pop and rock music perfectly. She also treats complex jazz arrangements and acoustic instrumental pieces with importance. The OM5E cartridge is an ideal choice in terms of price/quality ratio and can compete even with more expensive models.

Technical characteristics of Ortofon cartridge STYLUS 5 E:
Type: stylus
Purpose: universal
Cartridge type: MM
Needle sharpening type: Elliptical
Replaceable stylus: yes
Compatibility: OM 5E; Super OM 5E
Cantilever material: aluminum
Body material: noryl (polymer)
Needle pressing force, (recommended), g 1.75
Phono stage input capacitance, pF: 200 – 500
Phono stage input impedance, Ohm: 47000
Weight: 5.0 h
