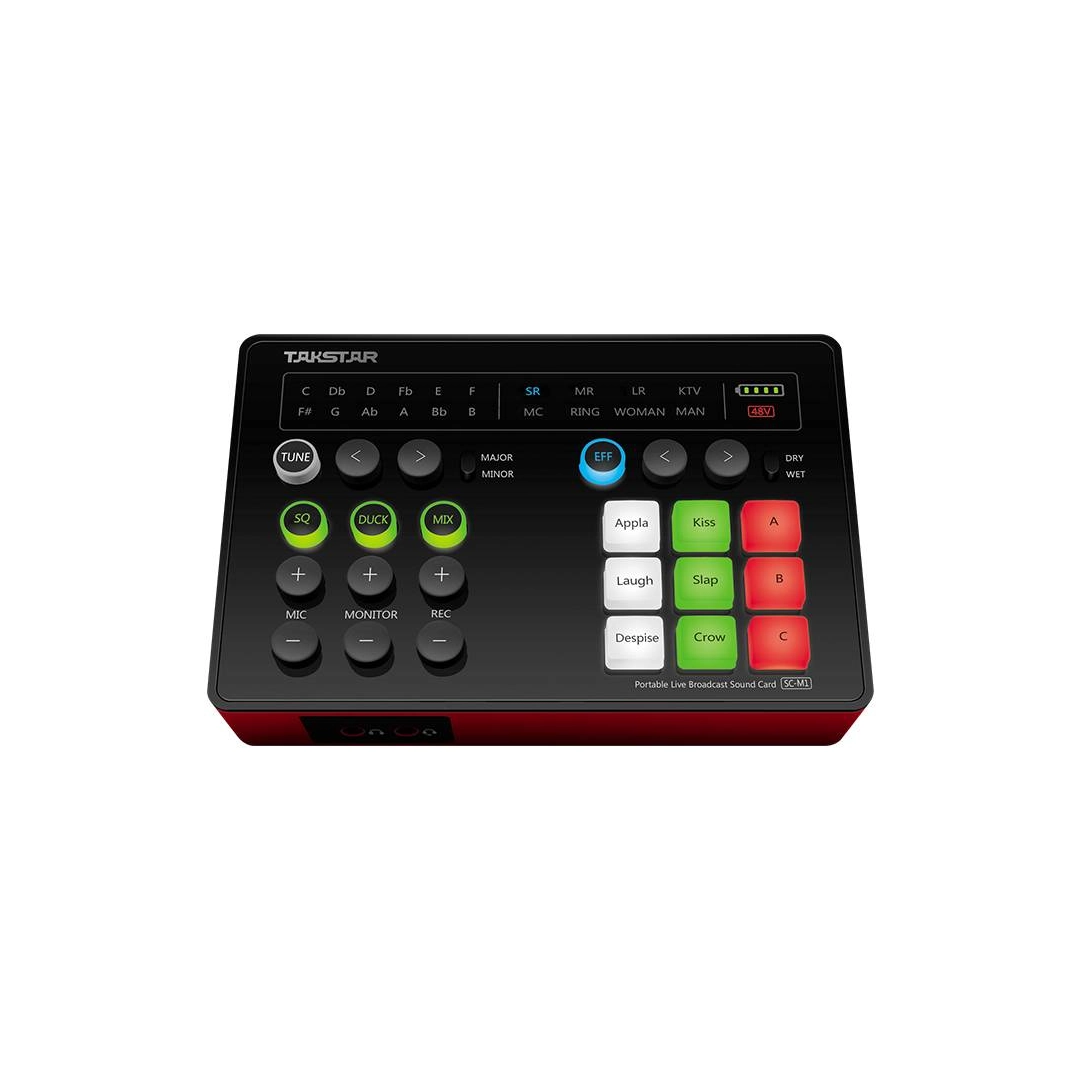

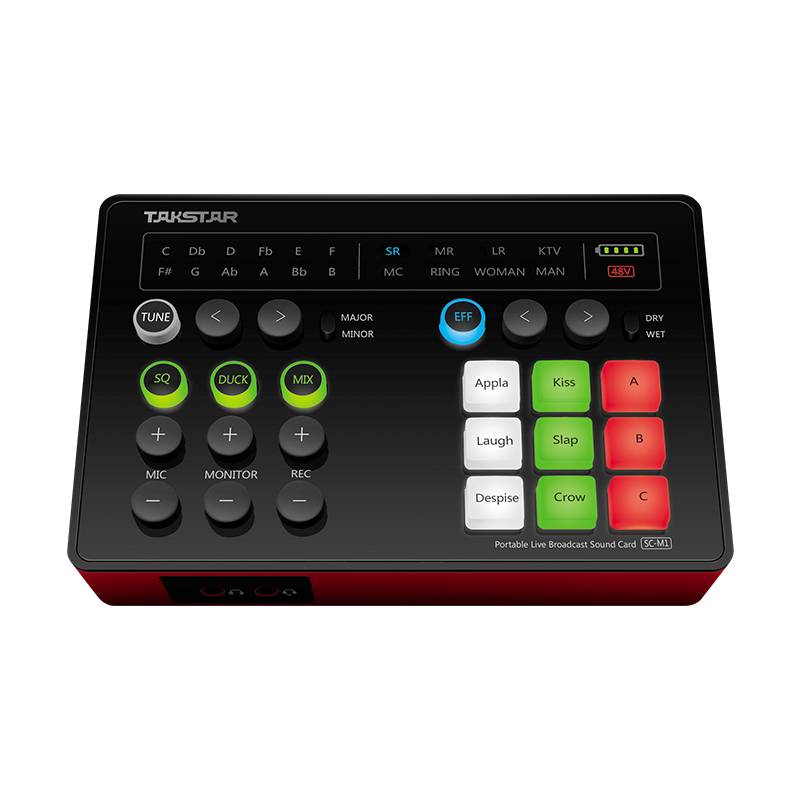

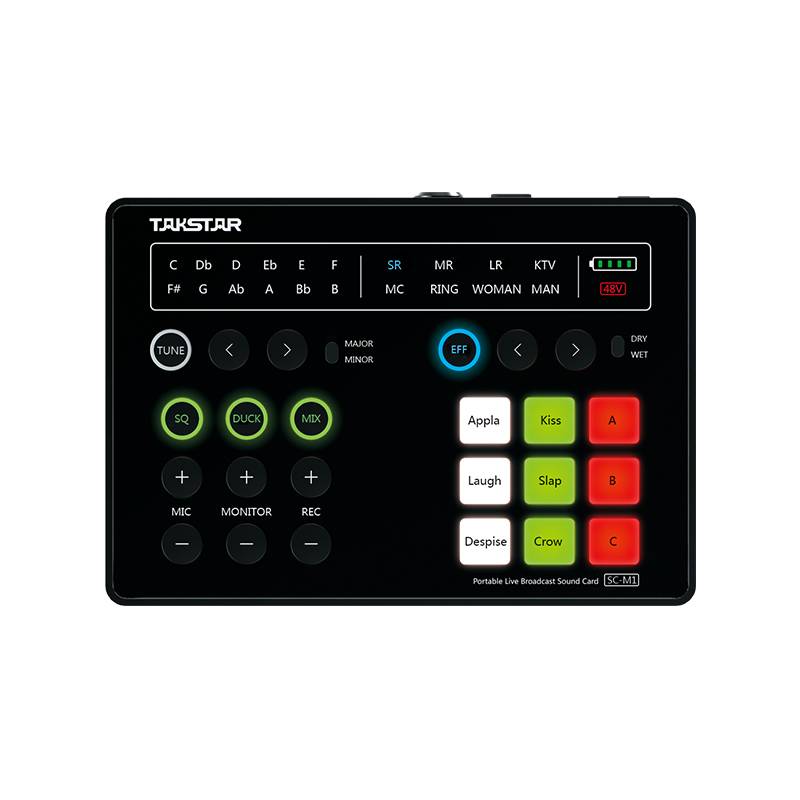

Portable sound card for live broadcasting Takstar SC-M1

Portable sound card for live broadcasting Takstar SC-M1

   •Suitable for network karaoke/live broadcast, suitable for smartphone/tablet/PC• Built-in DSP chip with 9 processing effects, one button to switch, easy operation

   • 9 effects that a camboy/camgirl can choose for a more interesting live broadcast; Three out of nine can be replaced
   • One button to enable the monitoring function; Listen to what you sing
   • Intelligent Noise Canceling to automatically screen out ambient noise picked up by the microphone.
   • One button to enable background mute function
   • Independent control of microphone volume, monitoring or recording volume, flexible control
   • Multiple microphone jacks, compatible with condenser microphone, dynamic microphone, headphone microphone.
   • Accompaniment jack for connecting to an external audio source to play accompaniment during live broadcasts.
   • Built-in lithium-ion battery for more than 7 hours of operation; charging while working

Sound card specification:
   • Data transfer: USB2.0
   • Sampling frequency: 48 kHz/16 bit
   • Frequency response: 20Hz-20kHz (±3dB)
   • THD: <0.5% 1 kHz
   • Headphone output power: 167.7 mW/32 ohms
   • Signal-to-noise ratio for headphones: 88 dB (A-weighted)
   • Main chip: DSP
   • Reverb Mode: Reverb
   • Auto-tuning: 24 types of auto-tuning.
   • Digital Equalizer: Adjust the equalizer
   • Product size: 142*98*22 mm (L*W*H)
   • Net weight: 288g

Battery Specification:
   • Battery type: Li-ion battery
   • Charging: USB 5V/1.5A
   • Battery capacity: 2700 mAh
   • Operating time: approximately 7 hours (with 48 V off)
approximately 5 hours (when switched to 48 V)

Connector Specification:
   • Audio jack: mobile phone jack (3.5mm), accompaniment jack (3.5mm)
   • Microphone jack: Mic 1 (Mini XLR), Mic 2 (3.5mm)
headphone jack (3.5mm), headphone mic jack (3.5mm)
   • Power connector: Micro USB interface
