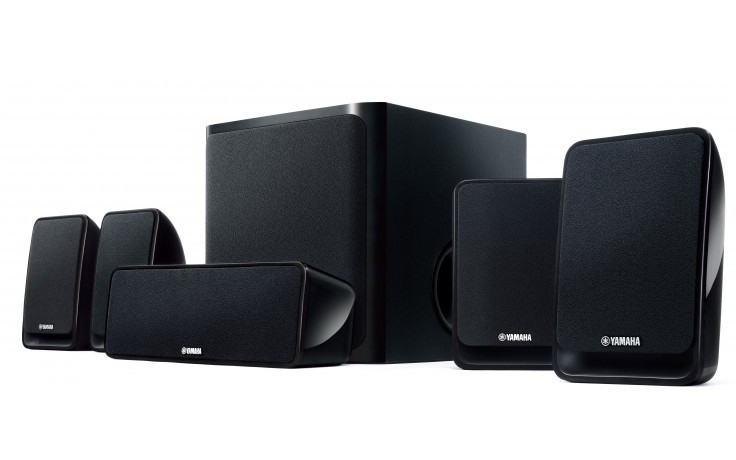

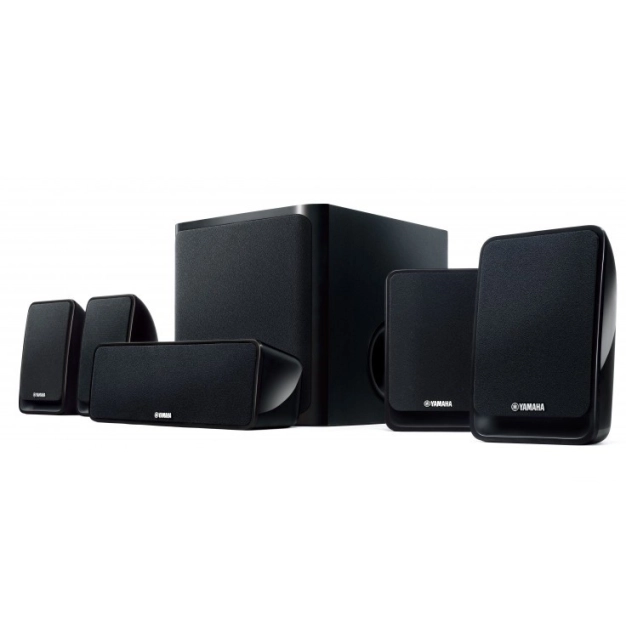

Yamaha NS-P20 speaker set

Stylish speaker set in curved cabinets for 5.1-channel home theater system. Subwoofer with Advanced YST II technology provides strong and clear bass.

Curved shapes for sophisticated interiors

Surround speakers have a curved shape that fits perfectly into any interior. They are just the right size for good sound quality and fit comfortably almost anywhere.

Glossy black cabinet finish
The glossy black speaker cabinets blend in perfectly with the look of most modern flat-screen TVs.

Wall mountable (front speakers, center speaker and surround speakers)
Thanks to the mounting holes on the rear panel, these speakers can be mounted to the wall.

HD Audio support for great movie sound
The NS-P20's speakers are tuned to produce crisp, clear sound that's a pleasure to listen to for long periods of time. Both in music and in films, the sound will be rich and voluminous.

5.1 channel speaker set for home theater system
These optimally sized speakers deliver a tight, well-balanced sound. Affordable yet high quality, the NS-P20 speakers are an excellent choice for home theater applications.

Advanced YST II technology for powerful and deep bass
Yamaha's newly developed Advanced YST II (Yamaha Active Servo Technology II) technology combines the principles of negative impedance and DC current to more effectively control the speaker cone. Using advanced impedance converter (ANIC) circuits, this system dynamically optimizes the speaker's true total impedance to maintain an ideal linear response. This means a more even and accurate response in the lower frequency range, as well as an increased sound pressure level for a more natural and punchy bass response.

Linear port bass reflex
The use of a Linear Port type bass reflex reduces external noise for even higher sound quality.
The Linear Port bass reflex helps to ensure an even bass response, keeping outside noise to a minimum.

Stylish 5.1 channel speaker package
Stylish speakers in curved cabinets look unusual and attractive in any interior
Glossy black finish matches the design of modern TVs
Stylish speakers with good sound that meet the HD Audio standard
Subwoofer delivers clear, punchy bass with Advanced YST technology
Wall mountable (front speakers, center speaker and surround speakers)

Acustic systems
System frequency response 30 Hz - 25 kHz
Impedance 6 ohm (without subwoofer)
Front speakers
Type Acoustic suspension, wideband design
7 cm cone driver, full range design
Rated input power 30 W
Maximum input power 100W
Sensitivity 83dB/2.83V/1m
Dimensions (WxHxD) 115 x 176 x 88 mm
Weight 0.48 kg each

Central AS
Type Acoustic suspension, wideband design
7 cm cone driver, full range design
Rated input power 30 W
Maximum input power 100W
Sensitivity 84dB/2.83V/1m
Dimensions (WxHxD) 291 x 101 x 103 mm
Weight 0.68 kg

Surround speakers
Type Acoustic suspension, wideband design
7 cm cone driver, full range design
Rated input power 30W
Maximum input power 100W
Sensitivity 83dB/2.83V/1m
Dimensions (WxHxD) 115 x 176 x 88 mm
Weight 0.48 kg each
Subwoofer Advanced YST Type with Linear Port Bass Reflex
16 cm cone driver

Subwoofer
Power: 50 W (5 ohms, 100 Hz, THD 10%)
Dynamic power 100W
Dimensions (WxHxD) 262 x 264 x 299 mm
Weight 7 kg
