Ламповый усилитель Vincent T.A.C.- T22

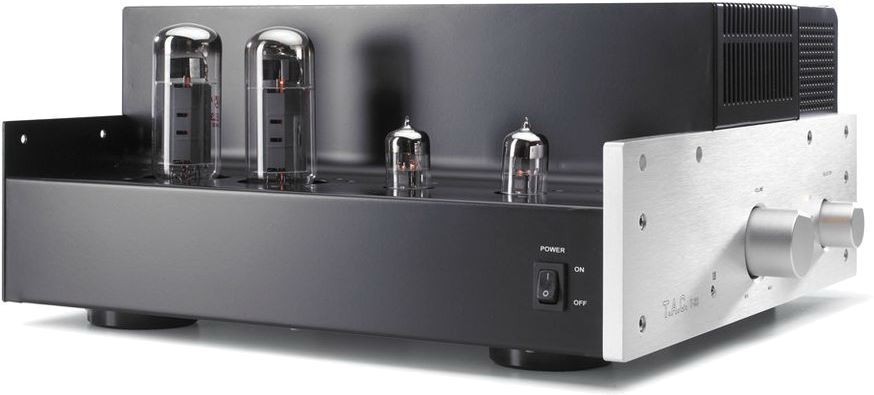

The TAC T-22 tube amplifier is a beautiful device with rich features. The device is divided into two parts: a body, along the perimeter of which the main working elements are assembled, and a three-section plane on it, where the lamps are directly located. On two of the three sections there is a possibility to remove the cover. The last section is additionally shaped along with slots to stabilize the operation of the lamps.

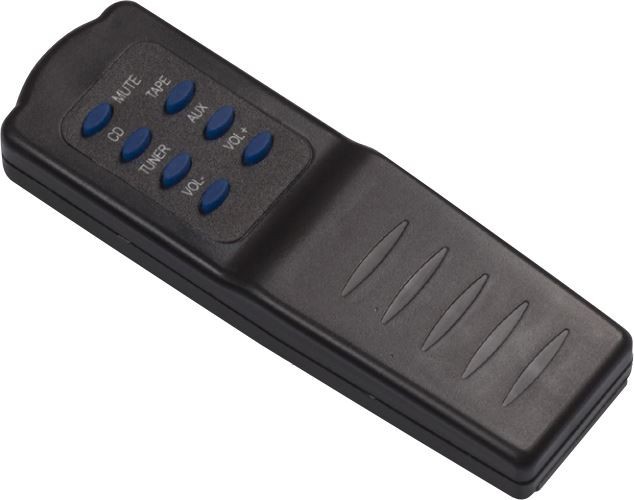

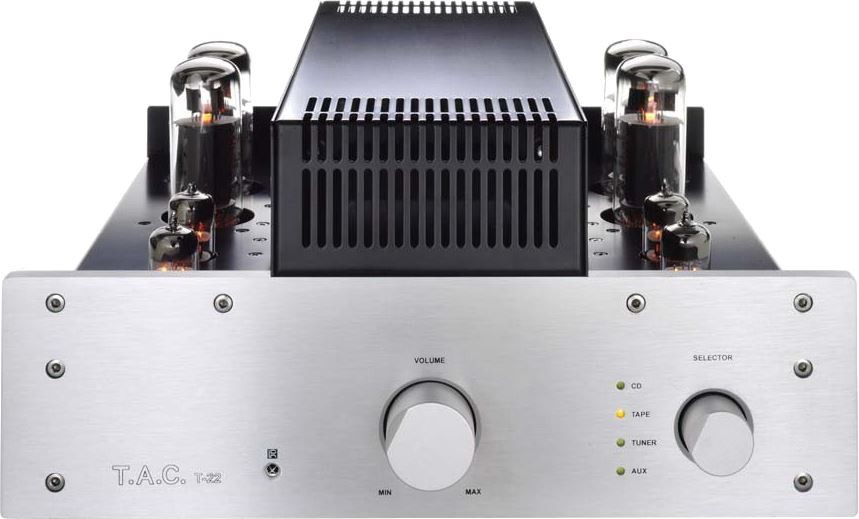

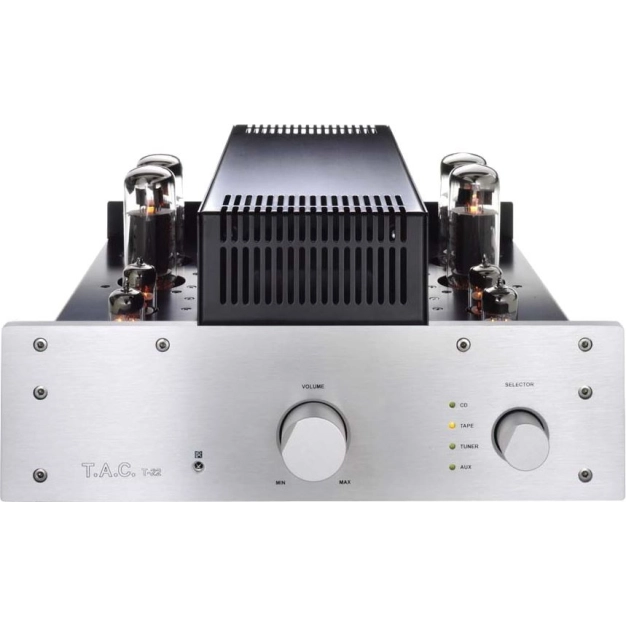

The TAC T-22 tube amplifier allows you to control itself both with the help of the set parameters using the keys on the front panel, and by turning on the desired functions and values from the remote control.

The amplifier is built according to the classical push-pull scheme. The role of drivers and phase inverters in the pre-amplification section is performed by a 6N3 lamp - a double triode of indirect heating, they use 4 lamps. In the output stage, EL34 lamps are installed, switched on in pentode mode, operating on the push-pull principle, two lamps per channel. To minimize the signal path, it was decided to abandon the use of the tone block. All structurally important parts and elements undergo additional selection before installation.

The dimensions of the device are compact, it can be installed on a shelf.

• Number of channels: 2
• Power 8 ohm: 2 x 40
• Power 4 Ohm: 2 x 40
• Frequency range, Hz-kHz: 20 - 60 (+/- 1.5 dB)
• S/W ratio, dB: 90
• Harmonic distortion: 1% (1kHz, 1W)
• Input impedance: 100 kOhm
• Remote control: yes
• Lamp set: 4x 6N3, 4 x EL34

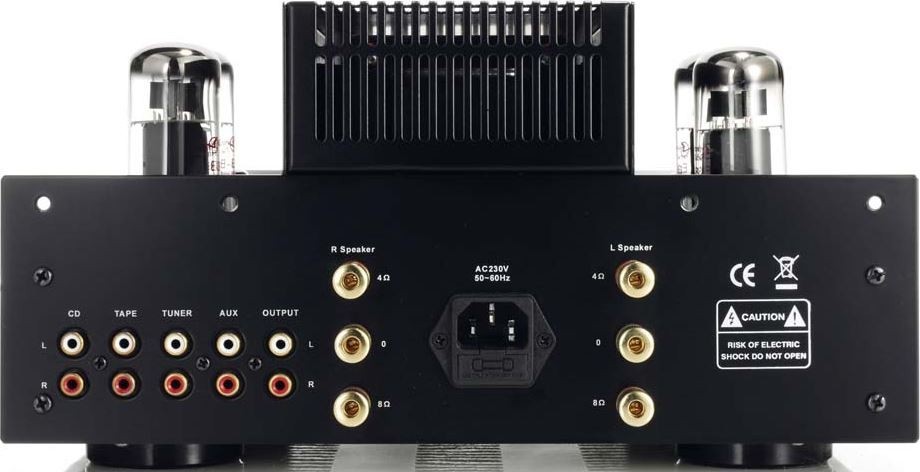

• Analog Audio Connectors Input: 4 x RCA
• Analog audio connectors output: 1 x RCA
• Speaker connectors: 2 x 3 (4 and 8 ohms)
• Supply voltage, V: 230 V / 50 Hz
• Dimensions, mm: 330 x 165 x 390
• Weight, kg: 19.6
• Color: Silver
