Цифровой интегральный усилитель FX-Audio D2160 Silver
Stereo 2-channel Hi-Fi class integrated digital amplifier.
Bluetooth 4.2, USB DSP D/A converter supporting 24bit/192kHz
TAS5614 provides 2x65W into 8Ω or 2x125W into 4Ω

Stereo 2-channel Hi-Fi class integrated digital amplifier.

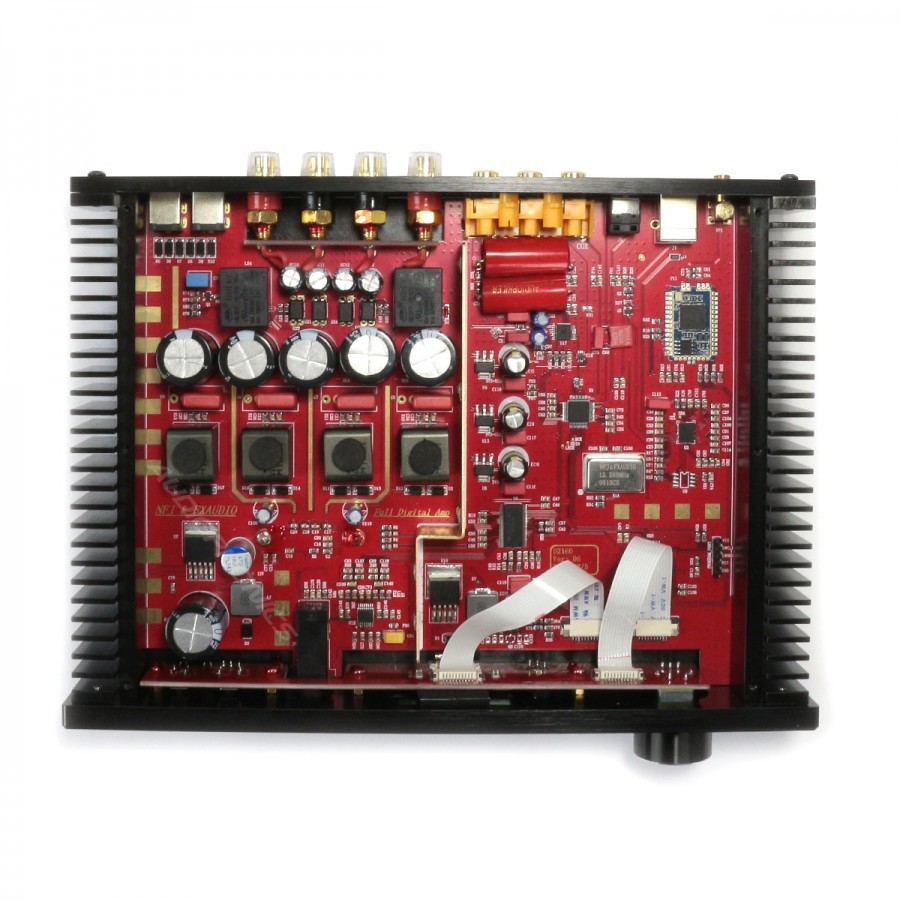

TAS5614 & Quality Components
The FX-Audio D2160 is based on the TAS5614 amplifying chip. This allows for 2x65W at 8 ohms or 2x125W at 4 ohms. TAS5614 is supported by STM32 microcontroller (MCU). It delivers clear and precise sound while offering deep bass. Thus, the amplifier provides a signal-to-noise ratio of -105 dB, a THD of 0.04% and a frequency response of 20 Hz - 20 kHz.
This amplifier also includes a CM6642 USB chip, a TI PCM1808 ADC for analog input, a Maxim MAX9722 amplification chip for headphone output, and an AKM AK4118 Toslink coaxial/optical receiver.
Bluetooth: enjoy music easily and everywhere
Equipped with a Bluetooth 4.2 CSR 64215 chip specially designed for audio, the FX-Audio D2160 lets you enjoy music right from your sofa. Simply pair your reader (smartphone, tablet...) with the amplifier and the music starts.
Bluetooth CSR 64215 chip supporting A2DP protocol provides faster transmission speed and more stability for better sound reproduction quality. In addition, aptX and aptX Low-Latency technologies are integrated into the chip, allowing you to achieve sound quality close to that of a CD.
The antenna is attached to the rear panel to increase the transmission range.
Powerful audio features
The FX-AUDIO D2160 offers simple yet highly effective audio features. The TAS5548 DSP device offers to change the bass and treble curves. There is also a "Hi-Fi" mode corresponding to the Direct Audio mode to bypass the DSP and enjoy a perfect match to the original signal.
Complete set of connections

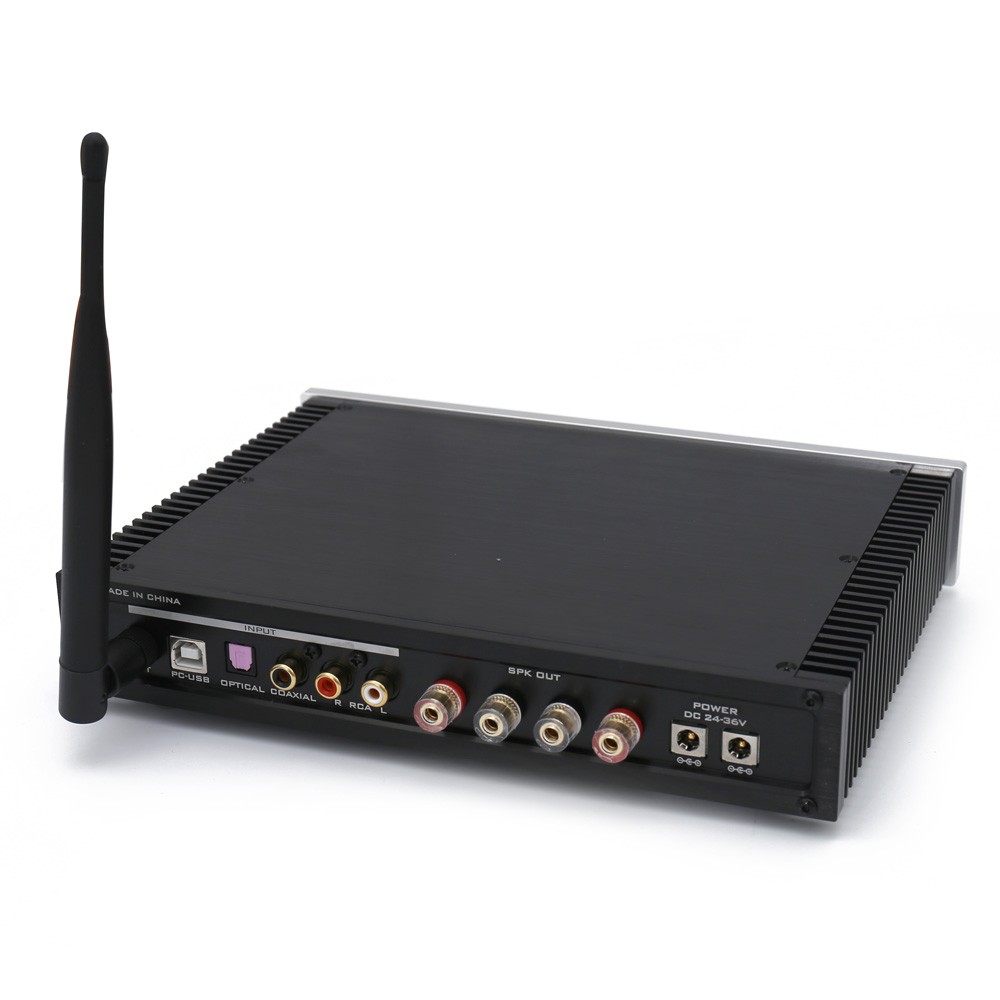

The D2160 offers a complete set of connections that will allow you to seamlessly connect your system. Thus, at the input we see Toslink optics, digital coaxial input, USB-B and stereo RCA. You can also connect an external antenna through the connector for a longer transmission distance.
Dual power supply
The D2160 can use up to two power supplies at the same time, this configuration can improve its performance even further by increasing power and stability. When using two power supplies, RMS power can reach 160W at 6 ohms. Please note that the second power supply must be the same (36V 6A).
Remote control
It would be a shame to be able to stream music directly from the couch while getting up to change the source or adjust the volume. Therefore, the D2160 is equipped with an IR remote control. This will allow you to access all the functions of your device, such as volume control, turning on "Mute", switching sources, adjusting bass and treble or switching to Hifi mode.
Simple and durable design

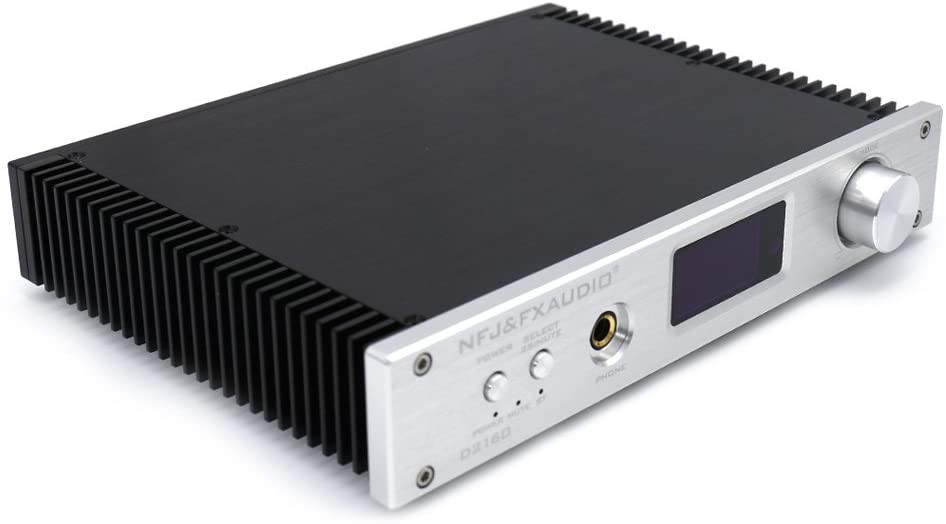

FX-Audio with its D2160 offers a simple design that allows it to easily integrate into the vast majority of audio systems while showing a stronger side with the integration of two heatsinks on the sides. Radiators allow the amplifier to effectively remove the generated heat.
The brushed aluminum case reliably protects internal components from dust.
Specifications
Amplifier Chips:
- Amplifer: TAS5614
- MCU: STM32
- DSP: TAS5548
- SPDIF chip: AK4118
- USB chip: CM6642
- Bluetooth Chip: CSR64215
- Headphone Amplifier Chip: MAX9722
output power
- 2x125W @ 4 ohms; 2x65W @ 8 ohms with 1 power supply
Audio inputs
- 1x USB-B
- 1xOptical
- 1xCoaxial
- 1x RCA stereo
- 1xBluetooth
Connectors Outputs
- stereo output for connecting speakers
- 6.35 mm headphone jack
SNR
- -106dB
- Headphone SNR: -95dB
THD
- 0.02%@1W
- Headphone THD: 0.02%@25mW
frequency response
- ±1dB 20Hz-20kHz
- Headphone: ±2dB 20Hz-20kHz
Sampling frequency
- 16-24bit / 48kHz-192kHz
Load impedance
- 4-8Ω
Power supply
- DC 5.5x2.5mm
- 2x 36V 6A (one power supply included)
Dimensions (without antenna)
- 23.8 x 19.5 x 4.5 cm
The weight
- 2.3kg
Colour
- Silver
Included
- 1 x D2160
- 1 x USB-B
- 1 x User Manual
Brand | FX-Audio |
---|---|
Model | D2160 |
Type | Bluetooth усилитель |
Frequency range | 20 Гц - 20 кГц при -1 дБ |
Power per channel at 4 ohms | 125 Вт |
Power per channel at 8 ohms | 65 Вт |
Bluetooth | Available |
Inputs | USB-B 1x (OTG); Optical 1x Коаксиальный 1xRCA Stereo |
exits | Акустическая пара Разъем для наушников, разъем 6.35мм |
Signal to noise ratio | 106dB |
Nutrition | DC 36V 6A (БП в комплекте) |
Impedance | 4-8 Ом |
Package | 1 шт. блок питания, 1 шт. USB-A к штекеру USB-B, 1 шт. Антенна для Bluetooth, 1 шт. ИК-пульт |
Color | Silver |
Dimensions (W x D x H), mm | 238 х 195 х 45 |
Delivery/payment | Price is for 1 pc |
Remote control | Есть |
Guarantee | 12 months |
Weight | 2,3 кг |
