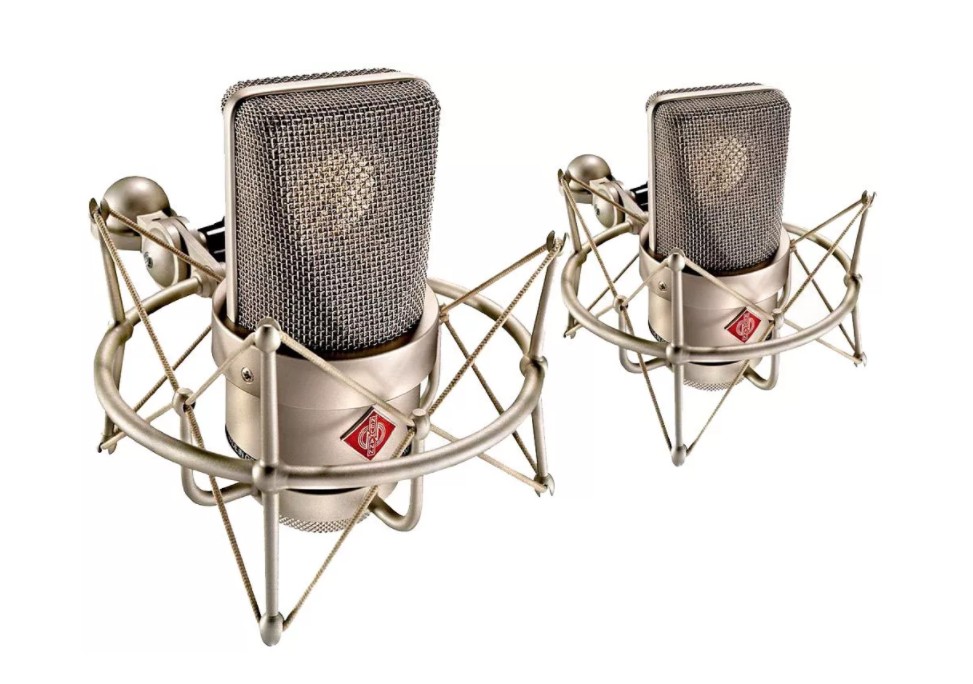

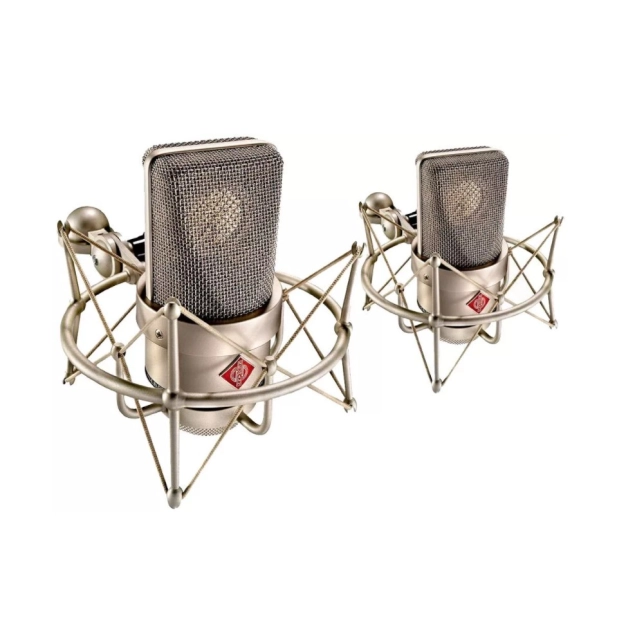

Студийный микрофон Neumann TLM 103 Stereo Set

Studio Microphone TLM 103 Stereo Set

TLM 103 Stereo Set - microphone. Using robust and truly transformerless circuitry, identical to some other Neumann microphones, the TLM 103 has very low self-noise and is capable of transmitting high SPL signals. Its capsule, a derivative of the U 87, provides a cardioid pattern that is acoustically well balanced and effectively attenuates off-axis signals. The TLM 103 is available in two body versions - light nickel-plated and matte black.

Characteristics:

acoustic principle: pressure gradient transducer;

polar pattern: cardioid;

frequency response: 20 Hz-20 kHz;

sensitivity at 1 kHz at 1 kΩ: 21 mV/Pa;

nominal impedance: 50 Ohm;

rated load resistance: 1000 Ohm;

equivalent sound pressure level according to CCIR 468-3: 17.5 dB;

equivalent sound pressure level according to DIN/IEC 651: 7 dB-A;

signal-to-noise ratio according to CCIR 468-3: 76.5 dB;

signal-to-noise ratio according to DIN/IEC 651: 87 dB;

typical sound pressure level: 138 dB;

with SOI: < 0.5%;

maximum output voltage: 13 dBu;

microphone amplifier dynamic range according to DIN/IEC 651: 131 dB;

power supply: phantom, 48 V +/-4 V;

current consumption: 3 mA;

microphone connector: XLR3F;

weight about: 500g;

diameter: 60 mm;

length: 132 mm.
