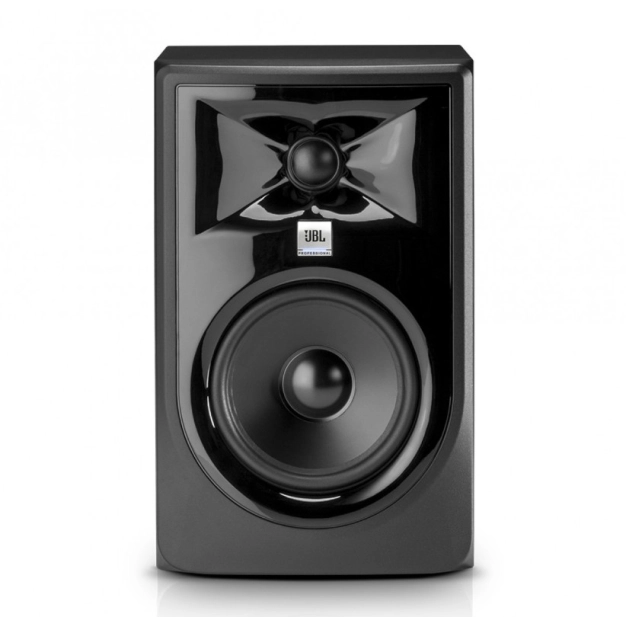

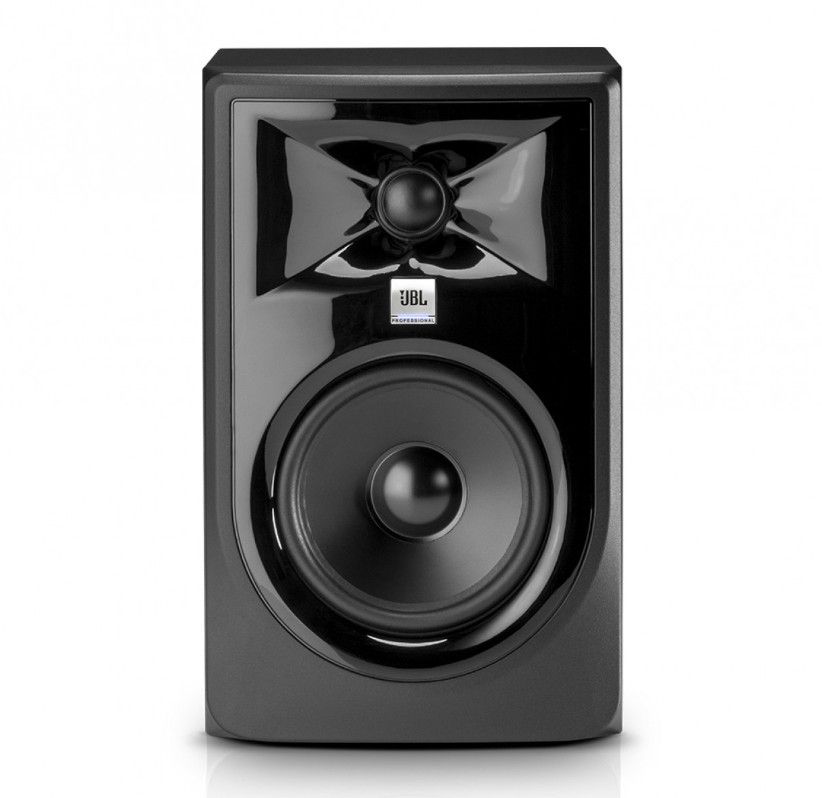

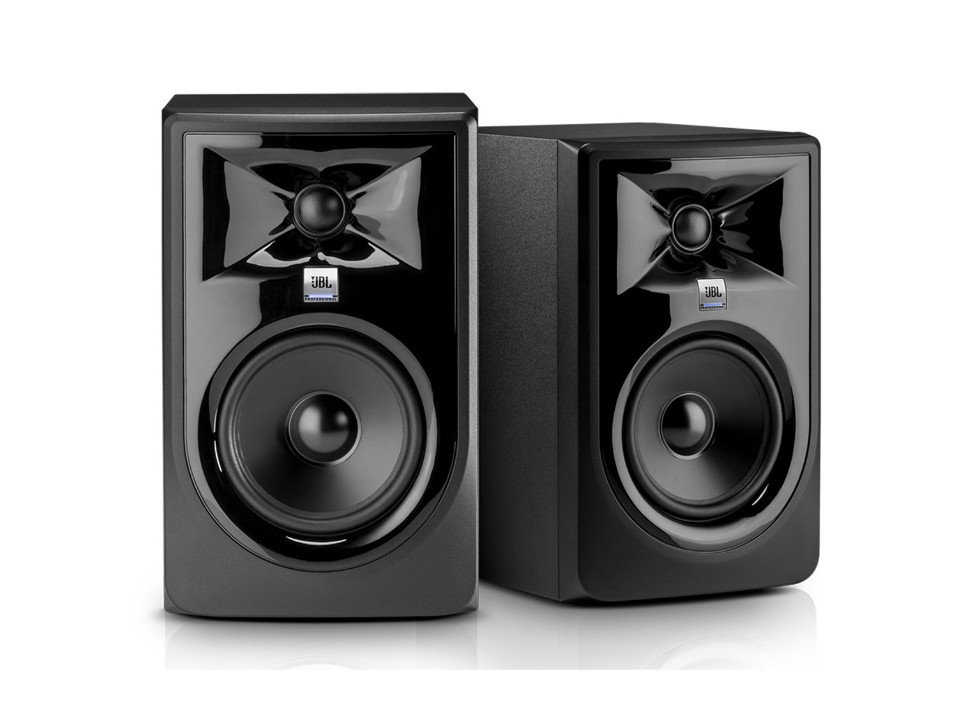

Studio monitor JBL 305P MKII (EU)

JBL 305 P MKII (EU) - studio monitor 5', 43 Hz - 24 kHz, 41 W LF + 41 W HF, ICW ™ (Image Control Waveguide) technologies. Modernizations and enhancements bring legendary JBL performance to every studio. Featuring the revolutionary JBL Image Control Waveguide and advanced transducers, the JBL 305P MkII offers stunning detail, accurate imaging, wide sound, and an impressive dynamic range that enhances the critical listening capabilities of any modern workspace.

With patented technologies derived from the mainstream JBL 7 and M2 reference monitors, and a sleek, modern design, the JBL 305P MkII monitor delivers great performance and an enjoyable mix at an affordable price.

Characteristics:

type: active studio monitor;

Woofer: 5";

HF driver: 1";

HF driver type: Soft dome;

crossover : 1725Hz 4th order acoustic Linkwitz-Riley;

suitable for use near magnetically sensitive equipment: Yes;

input sensitivity (-10dBV INPUT): 92dB / 1m;

power configuration: Bi-amplified;

RF amplifier power: 41W, Class-D;

LF amplifier power: 41W, Class-D;

frequency response (±3dB): 49Hz - 20kHz;

frequency range (-10dB): 43Hz - 24kHz;

bass extension (-10dB): 43Hz;

maximum continuous SPL: 94dB;

Max Peak SPL: 108dB

maximum peak input level (-10dBV / +4dBu): +6dBV / +20.3dBu;

system distortion criteria : <10% THD at maximum output with full compressor / limiter engagement;

electrical distortion criteria : 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output;

signal -to - noise ratio : 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output;

coverage (horizontal/vertical): 120° x 90°;

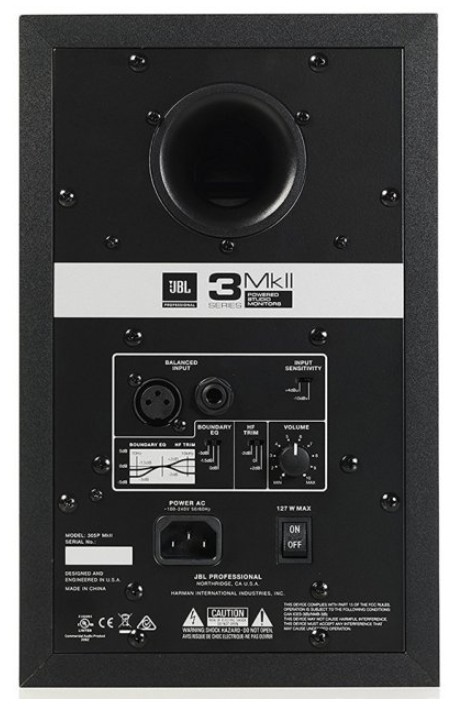

analog inputs: 1 x XLR female, 1 x TRS female, balanced;

RF Trim Control: -2dB, 0dB, +2dB;

LF EQ control: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB;

power supply: 100 - 240VAC (±10%), 50 / 60Hz;

body material: 15mm MDF;

case cover: Matte black PVC;

baffle : Injection-molded structural ABS;

dimensions: H x W x D - 298 x 185 x 231mm (11.7" x 7.3" x 9.1");

weight: 4.73 kg (10.43 lbs).
