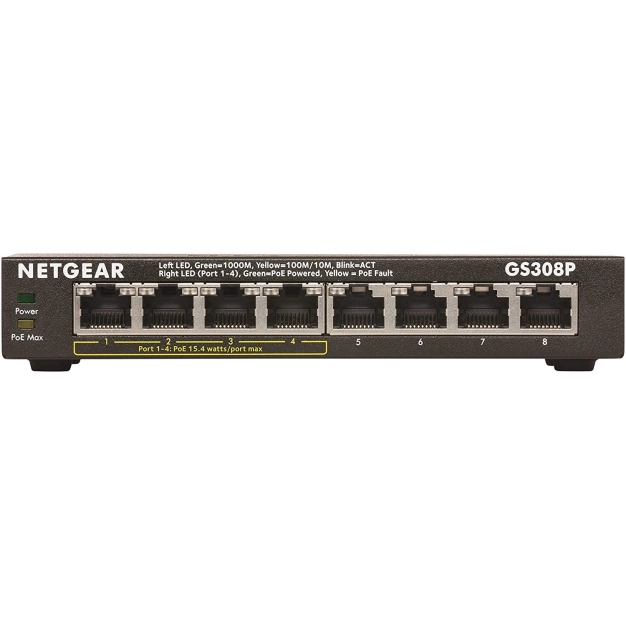

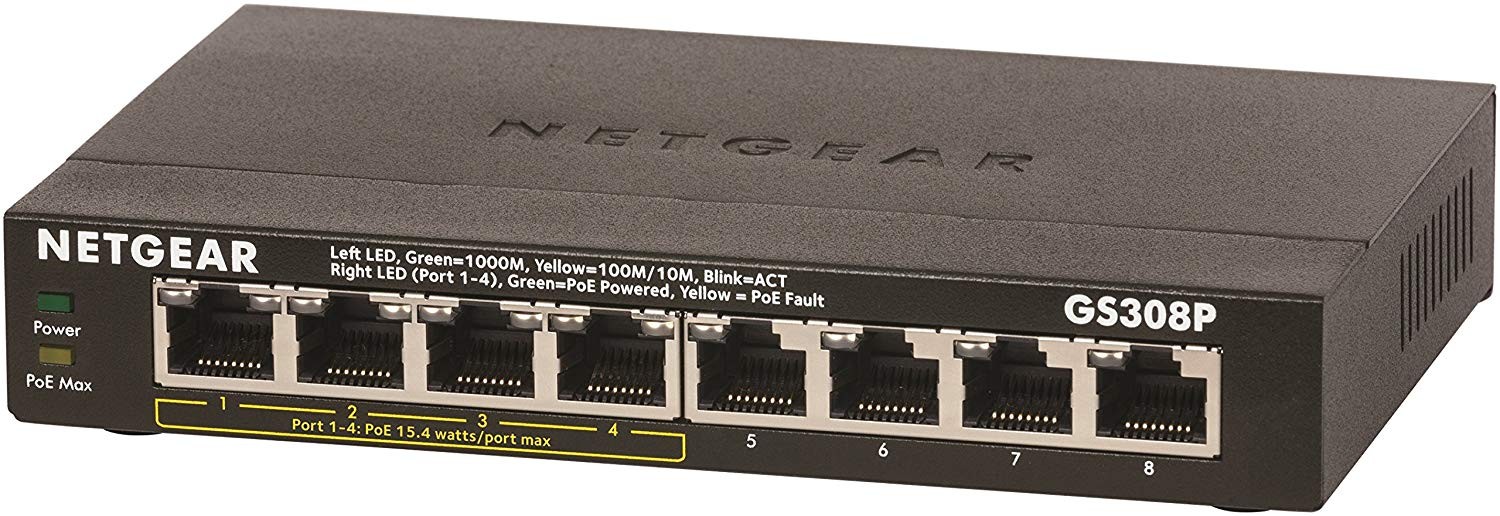

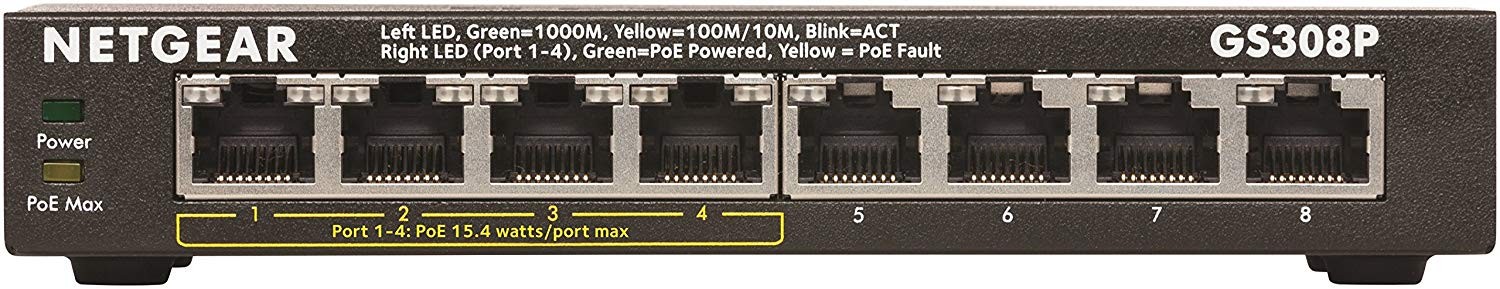

Netgear GS308P 8-Port Gigabit Ethernet Switch
- 8-Port Gigabit Ethernet PoE Switch
NETGEAR SOHO Unmanaged Ethernet Switches are an affordable solution for home and small business deployments. They are easy to use, reliable and equipped with a durable metal housing. PoE support provides power and data transmission over a single CAT-5 Ethernet cable for devices such as security IP cameras, VoIP phones, wireless access points, etc. With Plug-N-Play, the switches allow you to quickly and simply connect several devices to the network without additional configuration of each of them. The number of ports that these switches are equipped with varies from 5 to 48. These switches support energy-saving technologies, which saves energy and money.
NETGEAR Switch Features SOHO Ethernet :
- Ability to connect Fast Ethernet and Gigabit Ethernet devices
- Use of energy saving technologies
- Automatic MDI/MDIX connection type detection eliminates the need for crossover cables
- Non-blocking switching architecture ensures maximum data transfer rate according to port speed
- Auto-negotiation and automatic connection between the switch and the user device at the maximum supported speed
- PoE power for devices such as security IP cameras, VoIP phones, wireless access points, and more
- No fan ensures quiet operation
- Desktop, wall or rack mount
Peculiarities | ||||
GE Ports |
|
|
| 8 |
ENCLOSURE |
|
|
| metal |
CONNECTOR TYPE |
|
|
| metal |
Performance | ||||
bandwidth |
|
|
| 16Gbps |
Buffer Memory |
|
|
| 192KB |
Jumbo Frames |
|
|
| 9,720 bytes |
Forwarding Rate |
|
|
| 1,448,000pps |
Latency |
|
|
| <3.0µsec |
MAC Address Table Size |
|
|
| 4K |
PoE support | ||||
802.3af PoE Ports |
|
| Ports 1-4 | |
PoE Max Power Per Port |
|
|
| up to 15.4W |
Total PoE Power Budget |
|
|
| up to 53W |
Nutrition | ||||
Energy Efficient Ethernet (EEE) IEEE 802.3az |
|
|
| Yes |
Auto Power Down |
|
|
| Yes |
Short Cable Detection |
|
|
| Yes |
DC input |
|
|
| 48V/1.25A |
Power Consumption (Max and Standby) |
|
|
| 60.0W / 0.28W |
Power On/Off Switch |
|
|
| no |
Heat Dissipation (Max and Standby) |
|
|
| 205.20 BTU/ 0.96 BTU |
PORT LEDS |
|
|
| Power, Link/Activity (Left), Ports 1-4: PoE Power (Right) |
Physical Data | ||||
Width x Depth x Height |
|
|
| 158 x 101 x 29mm |
Weight |
|
|
| 0.46 kg |
Environment | ||||
operating temperature | 0° to 40°C | |||
storage temperature | -20° to 70°C | |||
Operating Humidity | 90% maximum relative humidity, non-condensing | |||
Storage Humidity | 5% to 95% relative humidity |
