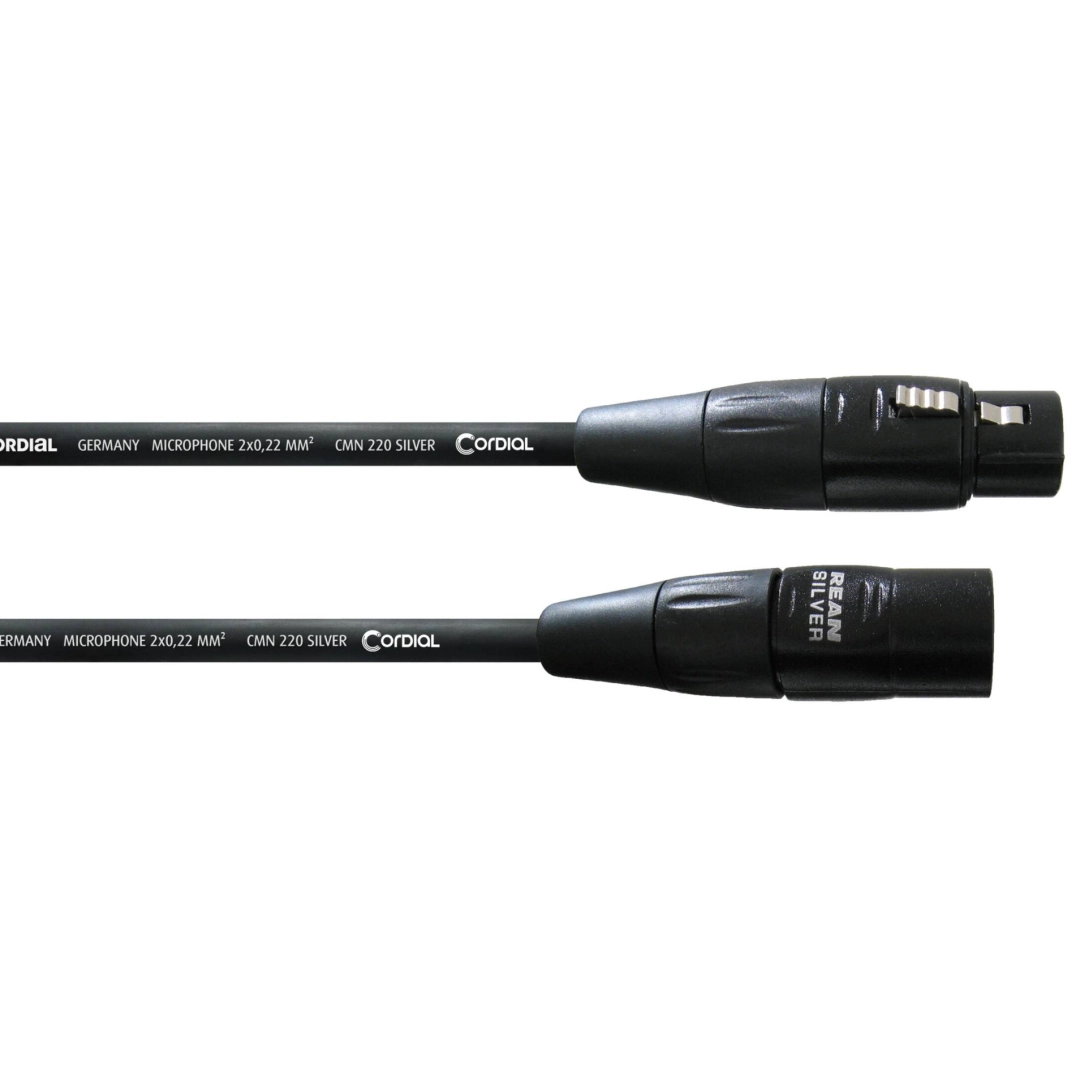

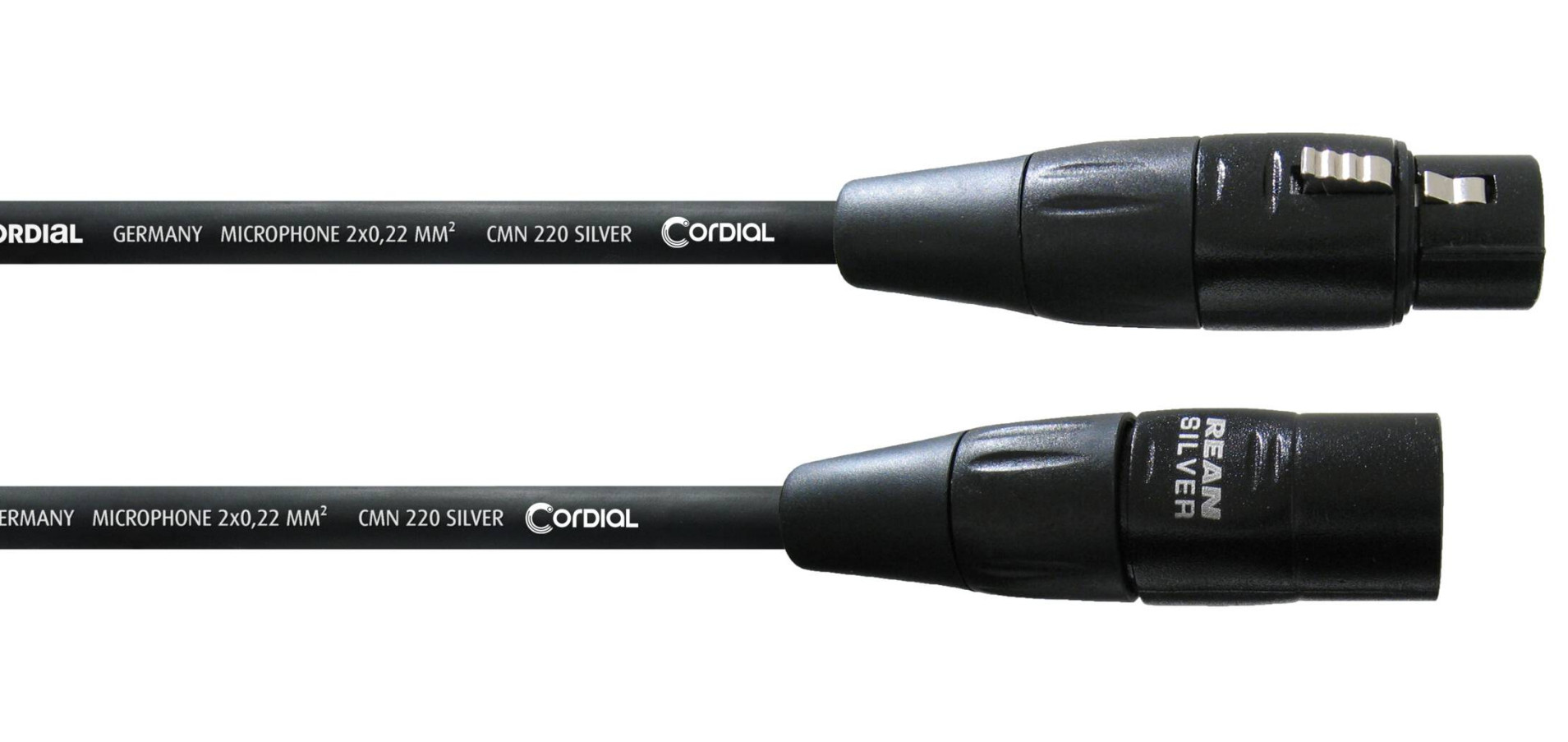

Microphone cable Cordial CIM 2.5 FM
The CIM FM microphone cable impresses with its REAN SILVER® by NEUTRIK XLR® connectors in a discreet black color. Based on our Essentials Cable 1 bulk cable, it has 0.22 mm² (AWG 24) conductor area and a spiral shield of bare copper wires. The composition of the conductors (28 x 0.10 mm) makes it very flexible and easy to wind.
In many respects, CIM FM is a cheaper alternative to CPM FM, but has a much higher conductor/conductor capacitance, so signal attenuation is possible, especially over longer distances.
The CIM FM microphone cable is used for balanced transmission of audio signals, for example from a microphone to the stereo inputs of audio interfaces, mixers or workstations.
Neutrik's REAN Silver plugs come in a discreet black color and are designed specifically for Cordial.
CIM FM is in many ways a cheaper alternative to CPM FM, and CIM FM has a much higher conductor capacitance, so signal attenuation is possible, especially over longer distances.
Main characteristics:
- REAN Silver connectors from Neutrik
- PVC sheath
- Core cross-section 0.22 mm²
- Caliber AWG 24
- Capacitance 80 pF/m
- Cable diameter 5.9 mm
Brand | Cordial |
---|---|
Model | CIM 2.5 FM |
Type | Cables |
Cable type | Microphone, Balance |
Cord type | XLR F - XLR M |
Cord length | 2.5 m |
Cable diameter | 5.9 mm |
Insulation material | LDPE |
Conductor material | Pure copper |
Conductor gauge (section) | 0.22 sq. mm |
Number of conductors | 2 |
Number of cores in the conductor | 28 x 0.10 mm |
Resistance | 80 Ohm/km |
Capacitance conductor-conductor | 80 pF/m |
Shielding | Yes |
Color | Black |
