Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m
Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m
Phono cable Van Den Hul D-501 Hybrid, m
Phono cable Van Den Hul D-501 Hybrid, m
  • Out-of-Stock
Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m
Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m
Phono cable Van Den Hul D-501 Hybrid, m
Phono cable Van Den Hul D-501 Hybrid, m
Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m
Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m Van Den Hul D-501 Hybrid RCA-RCA Phono Interconnect Cable 1.0 m Phono cable Van Den Hul D-501 Hybrid, m Phono cable Van Den Hul D-501 Hybrid, m
ID item: 29134
Reference: D-501 Hybrid RCA-RCA 1.5
Out-of-Stock

Van Den Hul D-501 Hybrid RCA-RCA 1.5 Phono Interconnect Cable

Do you want to know more?​

We are happy to answer all your questions, assist with the selection, and place your order.
Available from 9:00 AM to 9:00 PM

Delivery
In Kyiv:

By courier 90 UAH.

1-2 working days

For orders over 5,000 UAH

FREE

In Ukraine:

Nova Poshta

Order dispatch on the next day

Check cost and delivery times for details

Guarantee

Exchange/return within 14 days

Payment
  • By card on the website
  • Cash on delivery
  • Transfer via Visa/MasterCard
Delivery
In Kyiv:

Pickup is FREE

Revutskogo st., 5

By courier 90 UAH.

1-2 working days

For orders over 5,000 UAH

FREE

In Ukraine:

Nova Poshta

Order dispatch on the next day

Check cost and delivery times for details

Guarantee

Exchange/return within 14 days

Payment
  • By card on the website
  • Cash on delivery
  • Transfer via Visa/MasterCard

Van Den Hul D-501 Hybrid is a very high shielding cable. Sound-wise, this is one of the best cables out there. Not very expensive and with very high quality workmanship.

The Van Den Hul D-501 Hybrid was designed specifically for connecting tonearms to phono stages, as well as for internal wiring of mixing boards: highly flexible with excellent electrical qualities.

Van Den Hul
View all products of the brand: Van Den Hul

Van Den Hul D-501 Hybrid is a very high shielding cable. In terms of sound, this is one of the best cables in our program. Not very expensive and with very high quality workmanship.

The Van Den Hul D-501 Hybrid is regularly used as a mic cable in important professional recordings and as a standard product for, for example, SMEs in England, together with the prestigious Type V arm. This has been around since 1987.

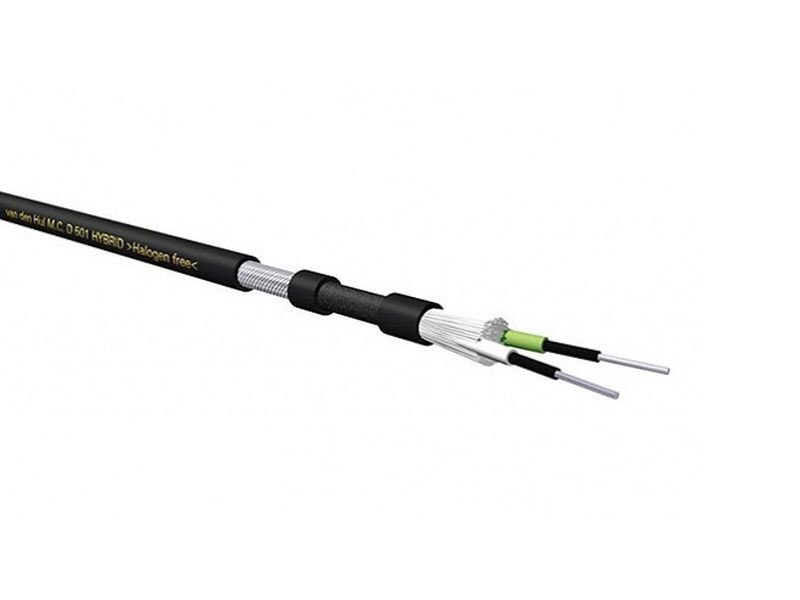

The two signal lines are 19 x 0.1 mm each. Very high quality oxygen-free copper wire with the highest density pure silver coating.

  • As an additional layer around the metal group, we use a rich Linear Structured Carbon ® (LSC) coating.
  • The signal line insulation in white and yellow is made of cellular polyethylene, so stripping can be done even with fingernails to prevent damage to the wires on silver-plated copper strands, usually caused by mechanical stripping.
  • The resistance of each signal wire is: 11.3 ohms / 100 meters.
  • The capacitance between the two signal wires is: 75pF/meter.
  • Highly flexible, specially treated man-made fibers are used as filler to prevent any damage caused by outside moisture or chemicals.
  • The screen consists of 96 x 0.10 mm. high quality OFC Matched Crystal (MC) wires with a dense and very clean silver coating and LSC impregnated helical band.
  • Screen resistance: 2.3 ohm / 100m.
  • The highly flexible black outer shell is made from non-migratory HULLIFLEX® to prevent any chemical degradation over an extended period.
  • The font printing is repeated every 25cm (10″) to make it easier to cut to a given length.
  • External cable diameter: 4.5 mm.

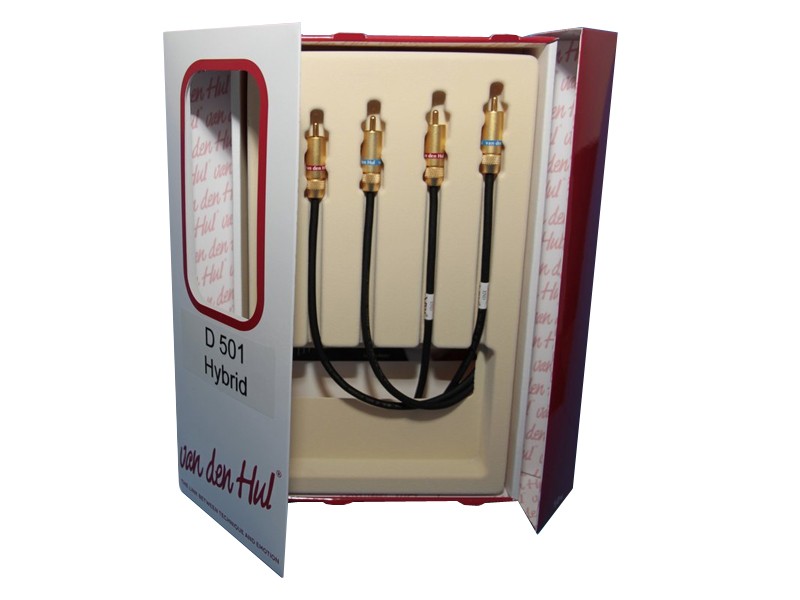

The cable is terminated at the factory with branded RCA Van den Hul C-5.5 connectors with a three-layer coating of copper, silver and 24K gold. Supplied in manufacturer's original packaging.

Key features of the Van Den Hul D-501 Hybrid:

  • Consists of 2 conductors 0.15 mm² (25.4 AWG) each
  • Conductor material: Silver-plated oxygen-free copper with matched crystal structure MC OFC and linear structured carbon LSC
  • Insulation material: porous polyethylene (cell-PE)
  • Shielding: Silver Plated MC OFC Oxygen Free Copper and LSC Impregnated Spiral Tape
  • Outer sheath: halogen-free HULLIFLEX®
  • Resistance: 0.0113 Ohm/m
  • Capacitance: 75pF/m
  • Connectors: proprietary RCA Van den Hul C-4.0
  • Outer Diameter: 4.5mm
  • Length: 1.5m
  • Cable color: black
  • Country (head office): Netherlands
Brand Van Den Hul
ModelD-501 Hybrid
Cable typeVinyl turntable cable
Cord type2RCA M - 2RCA M
Cord length1.5 m
Diameter4,5 мм
Insulation materialпористый полиэтилен (cell-PE)
Conductor materialMC OFC и линейно-структурированный углерод LSC
Outer shellHULLIFLEX®
Wave impedance 11,3 Ом / 100 м
экран - 2,3 Ом / 100 м.
Conductor gauge (section)2* 0,15 mm² (25,4 AWG)
Number of cores in the conductor19
Core diameter0,1 мм
Halogen-free and flame retardantYes
Resistance11,3 Ом / 100 м
экран - 2,3 Ом / 100 м.
Capacitance conductor-conductor75 пФ / м
Country of manufactureНидерланды
ColorBlack
