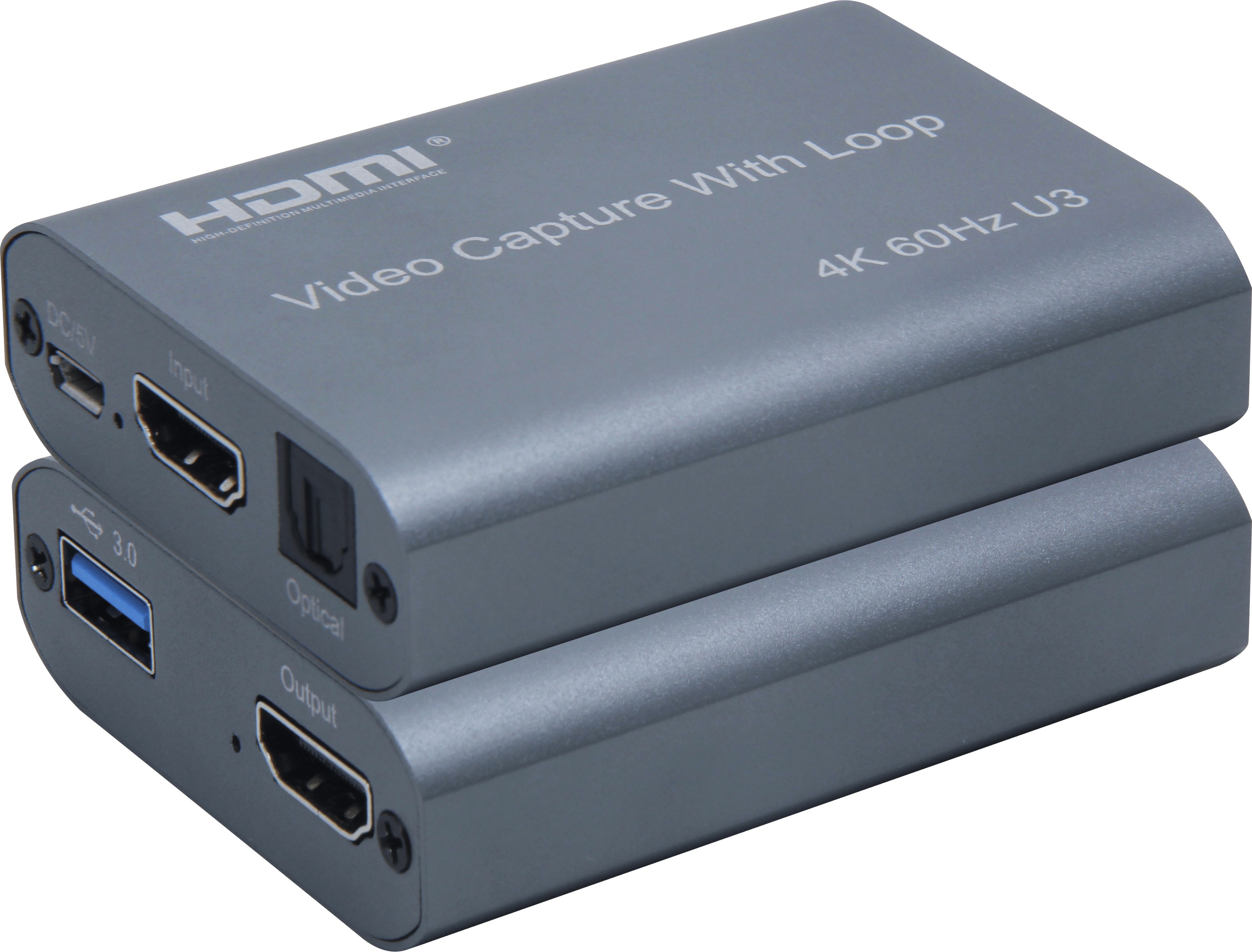

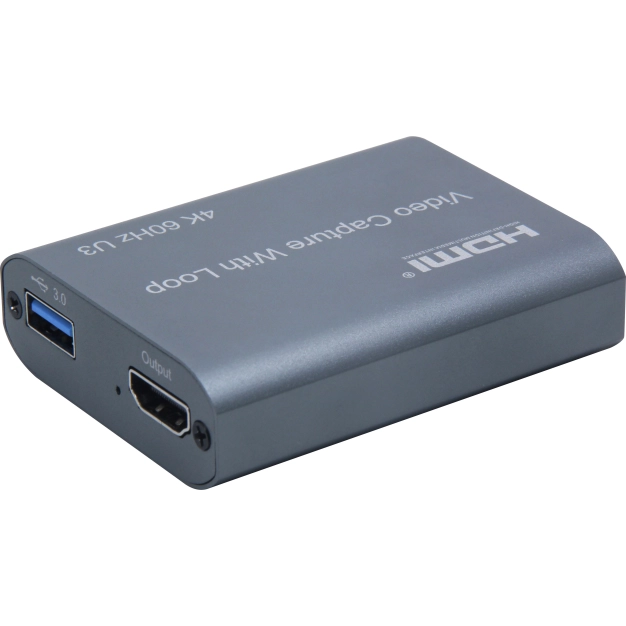

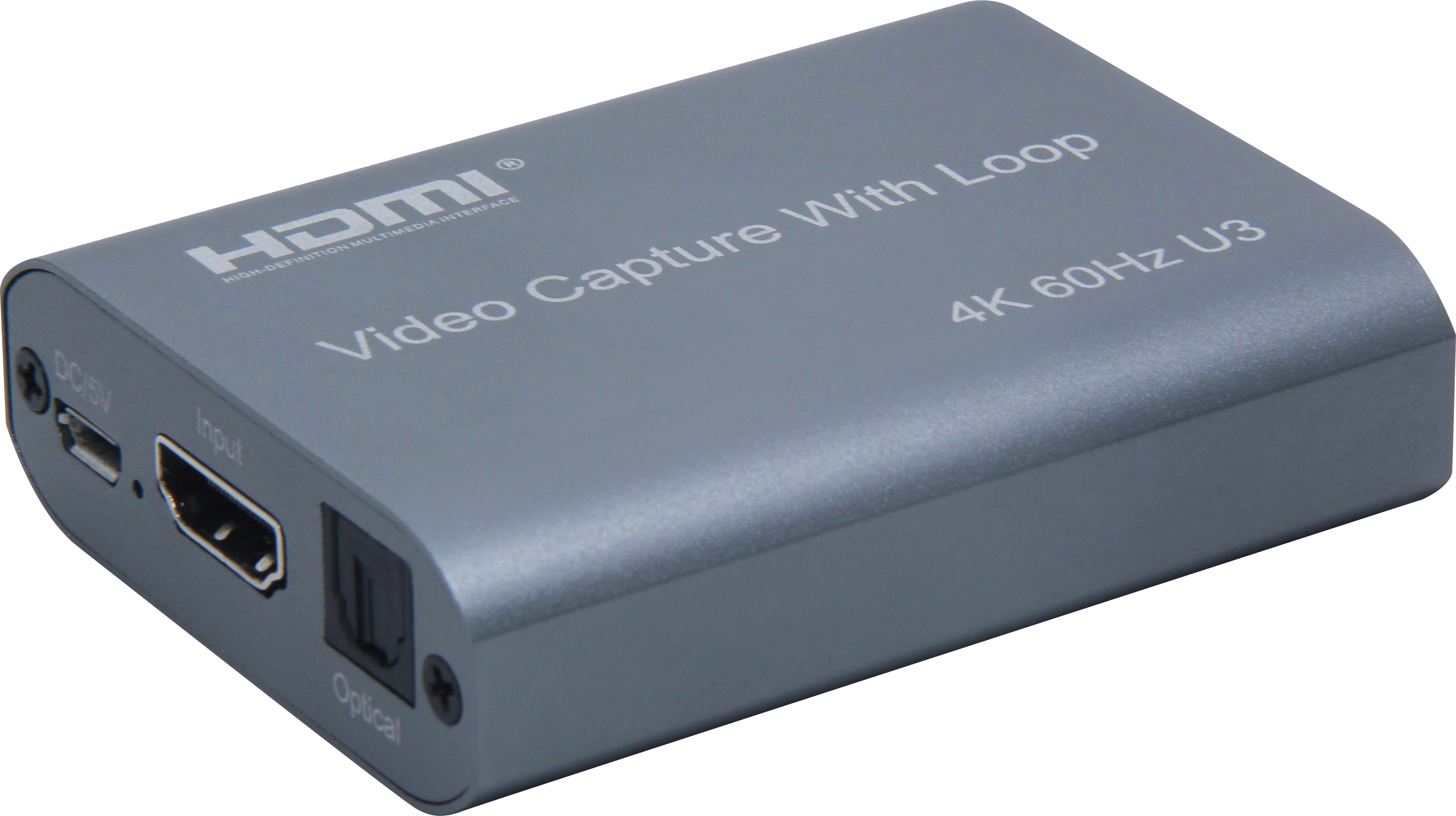

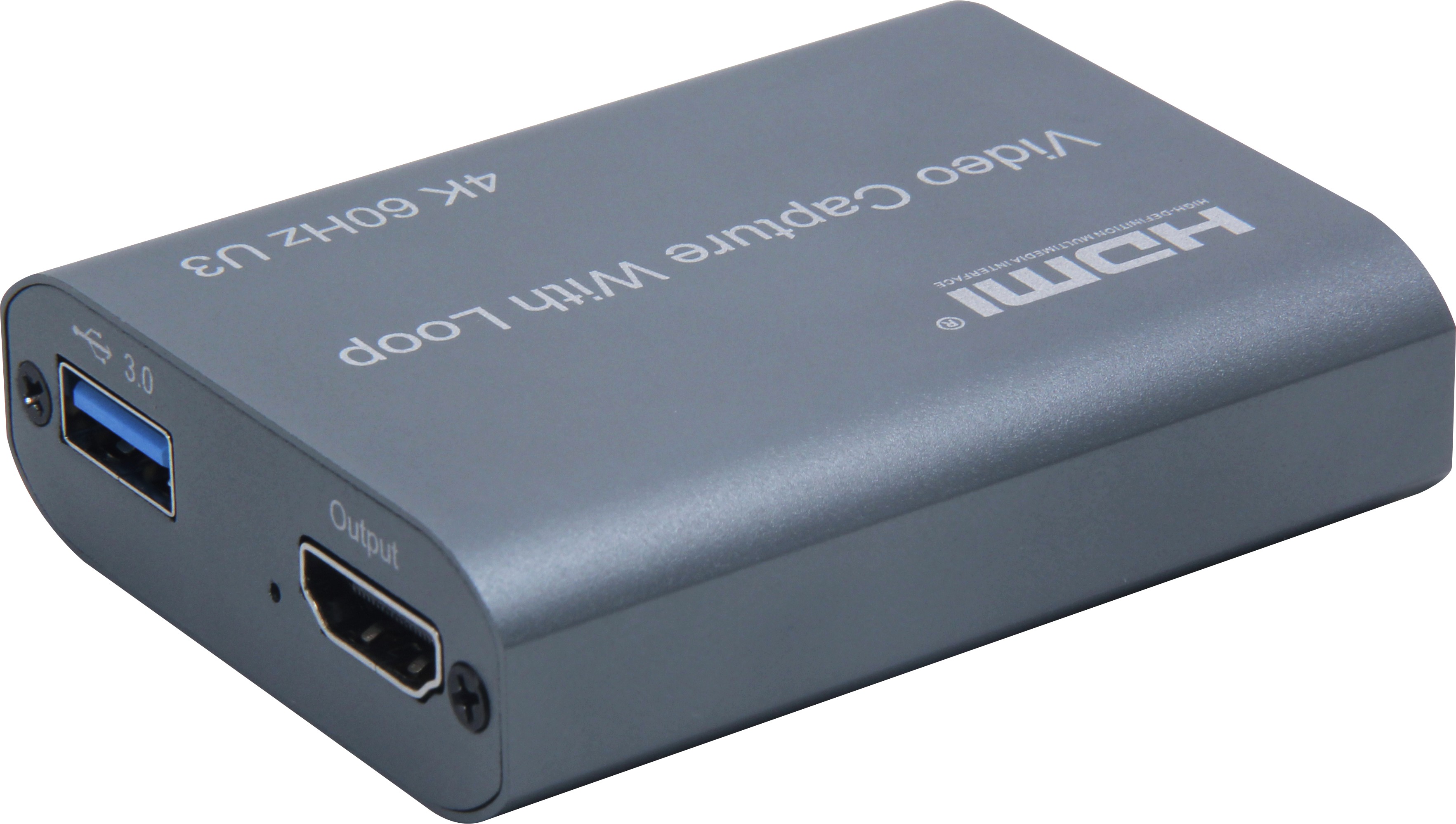

AirBase HD-VC30-8 4K Video Capture Device
An HDMI video capture device can capture HD video and audio. It can display HD signal to display or projector. It can support USB storage on computer at the same time. HDMI video capture can separate high definition video and audio signal.
An HDMI video capture device can capture HD video and audio. It can display HD signal to display or projector. It can support USB storage on computer at the same time. HDMI video capture can separate high definition video and audio signal. The digital audio signal with the coaxial cable or optical fiber removed can be connected to the amplifier. The maximum resolution can reach 4K/60Hz.
Peculiarities:
- Support maximum resolution up to 4K/60Hz;
- Support maximum 6G transmission rate and TMDS clock frequency can reach 600MHz;
- Deep color support;
- Support standard HDMI AWG26 cable: HDMI input up to 8 meters, HDMI output up to 8 meters meters. (Resolution 1080P and below); (Resolution 1080P and below); USB 3.0 cable output transmission distance is up to 1.5 meters;
- Support for many capture programs such as VLC, OBS, Amcap, etc.
- Compliant with USB video 1.5 and USB audio 1.0.
Characteristics:
- HDMI Resolution: Max can be 4K/60Hz
- Video Format Support: Deep Color
- Audio Format Support: L-PCM
- Maximum bandwidth: 600 MHz
- Max Transfer Rate: 6Gbps
- Input cable distance: less than 8m Standard HDMI cable AWG26
- Output cable distance: HDMI less than 8 meters, AWG26 standard HDMI cable; USB 3.0 less than 1.5 meters, standard USB cable
- Max working current: 0.7A/5V DC
- Size (L x W x H): 70 x 56 x 19 (mm)
- Operating Temperature Range: -10 to +55℃
- Weight: 56g
Note:
Computer hardware configuration requirements
- Processor: PC i5-3400 or higher; NB i7-3537U 2.0 GHz or higher
- Video Card: PC NVIDIA GT630 or higher; NC NVIDIA GT735M or higher
- RAM: 4 GB RAM
Included:
- 1X video capture device
- 1X user manual
- 1X Micro USB cable
- 1X Double USB cable with plug
Brand | AirBase |
---|---|
Model | HD-VC8 |
Type | Устройство видеозахвата |
Audio format | L-PCM |
Color depth | Глубокий цвет |
Bandwidth | 600 МГц |
Permission | HDMI: Максимально может быть 4K / 60 Гц |
Dimensions (D x W x H), mm | 70 x 56 x 19 |
Weight | 56 г |
Working temperature | от -10 до + 55 ℃ |
Input cable length | (разрешение 1080p) менее 8 м Стандартный кабель HDMI AWG26 |
Output cable length | (разрешение 1080p) менее 8 м Стандартный кабель HDMI AWG26; USB 3.0 менее 1.5 метра, стандартный кабель USB |
HDMI transfer rate | 6 Гбит / с |
Maximum operating current | 0.7A/5 В DC |
