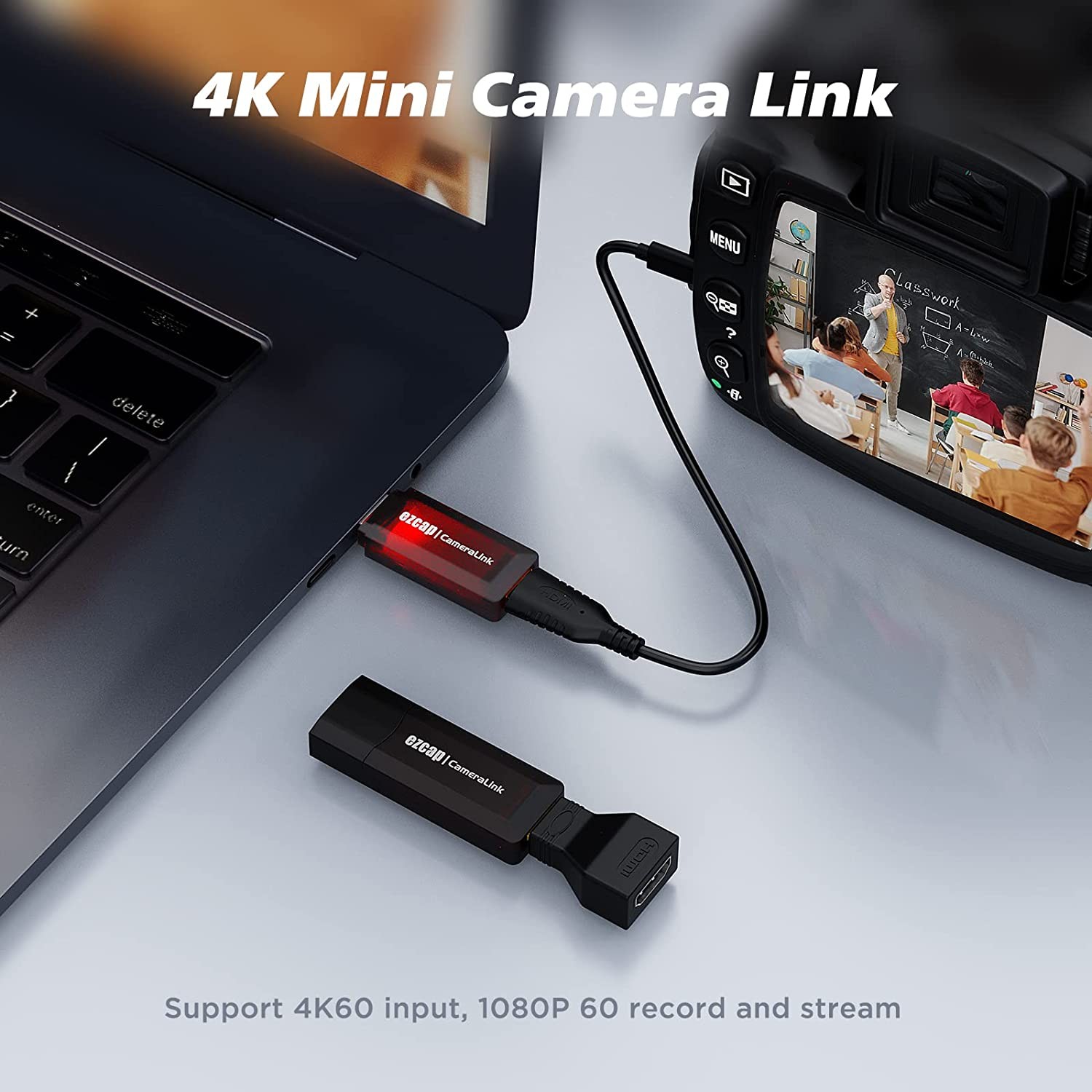

- HDMI input up to 4K, 1080p60 video capture and transmission.

- UVC standard, no manual driver installation required.
- Supports Windows, Mac OS, even Android.

- Supports most third party video capture software.
- The smallest size in the world.

Ezcap
View all products of the brand: Ezcap

Why do you need Camera Link MINI?

DLSR cameras have many advantages over traditional webcams.
Image Sensor: Pixels are larger and capture more light and detail.
Low light (ISO range): Due to common characteristics such as sensor size, number of pixels, color reproduction, low light performance is much better than a webcam.
Lenses: DSLR lenses are interchangeable. Zooming in, image enhancement in low light, shallow depth of field, and background blur can all be achieved with a variety of lenses.
Connectivity: DSLR cameras have many different connectivity options: USB, Wi-Fi and Bluetooth for wireless image sharing, HDMI for video streaming and SD card recording for editing.
Megapixels: High megapixel count - image resolution - enhances detail and sharpness.
Color Science: Camera manufacturers invest heavily in color science. This is how the sensor and ISP process and interpret colors.
Dynamic Range: Dynamic range is the difference between the brightest and darkest parts of an image that a camera can capture. The higher the dynamic range, the more realistic the colors are, without suppressing shadows and highlights.
Manual control: Each element of the image can be adjusted. Exposure, ISO, focus, etc.

SPECIFICATIONS
- Host interface: USB UVC
- Video input: HDMI
- Audio input: HDMI
- Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) ), 1920 x 1080 (50p), 1920 x 1080 (60p), 2160p24, 2160p30, 2160p50, 2160p60.
- Software Compatibility: OBS Studio, Windows Media Encoder, Adobe Flash Media Live-Encoder, Real Producer Plus, VLC, Wirecast, vMix, Potplayer....
- LED status indicator.
- System requirements: Windows 7,8,10. PC: Intel Core i5-3400 + NVIDIA GT630, NB: Intel Core i7-3537U 2.0 GHz + NVIDIA GT735, VGA card with DirectX 10 support, sound card, 4GB RAM

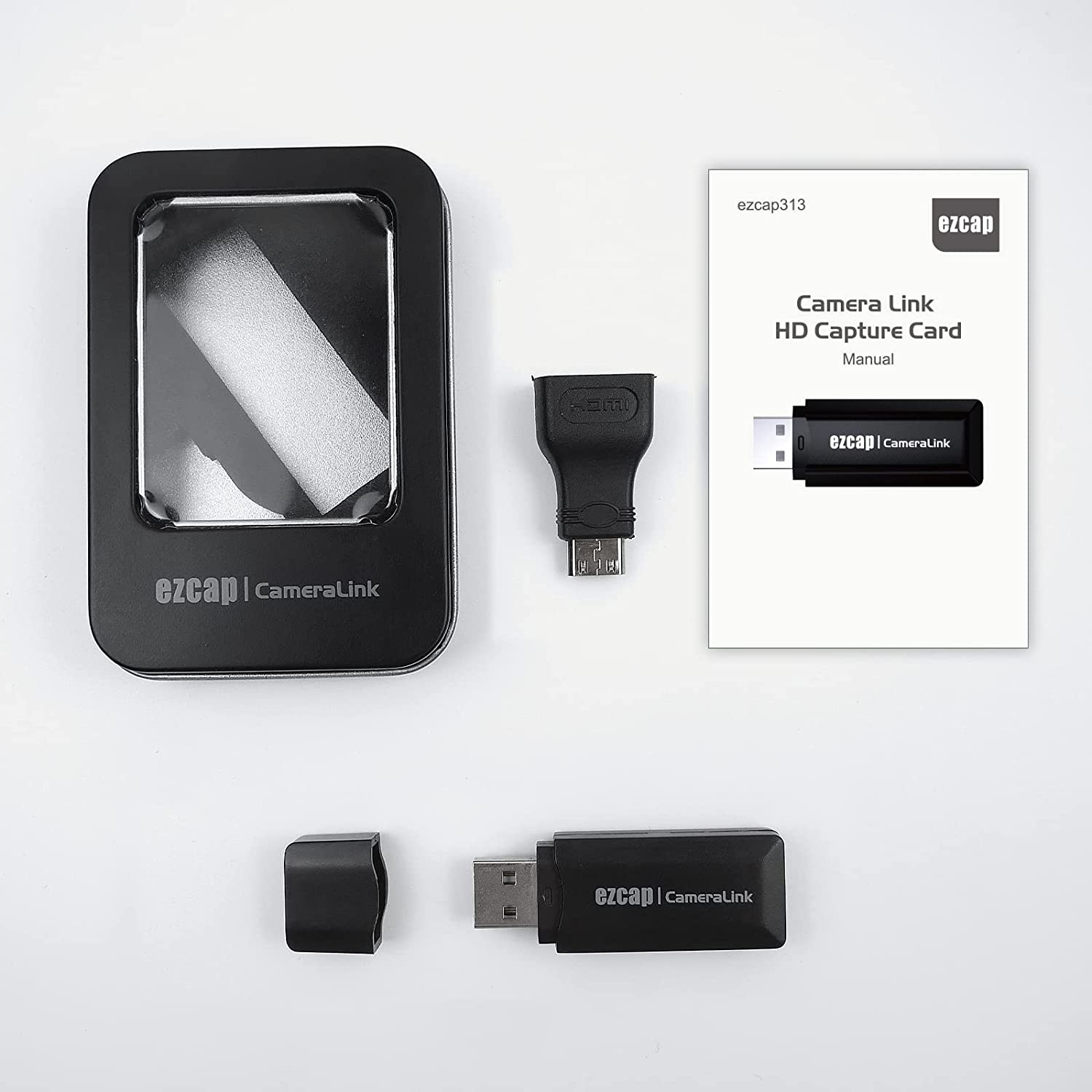

- Package Contents: ezcap313 Camera Link Mini, Mini HDMI Adapter, User Manual
- Dimensions / Weight: 55(L) x 20(W) x 9(H)mm (not including HDMI adapter), 10g

PECULIARITIES
- HDMI input up to 4K, 1080p60 video capture and transmission.

- UVC standard, no manual driver installation required.
- Supports Windows, Mac OS, even Android.

- Supports most third party video capture software.
- The smallest size in the world.

Camera Tips
These tips will ensure the best experience and image quality when using your camera with ezcap313 Camera Link Mini. These are general tips and may not apply directly to the camera you are using.
1. Turn off the AUTO SHUTOFF function: Most cameras automatically turn off to prevent battery drain. For video calls, the camera must remain on indefinitely. The auto power off options are most commonly found in the camera's power settings.
2. Clear HDMI OUTPUT: Cameras display graphical user interface elements such as battery level and resolution settings. This can be disabled by entering the camera's HDMI menu and turning off the HDMI information display, or by pressing the info button on the camera several times.
3. Use AC adapter: Most cameras can't work and charge at the same time. An AC adapter or dummy battery must be used to trick the camera into thinking it is working or charging indefinitely.
4. Set MOVIE MODE: Locate the Movie Mode option, usually indicated by the movie camera icon on the camera mode dial.
