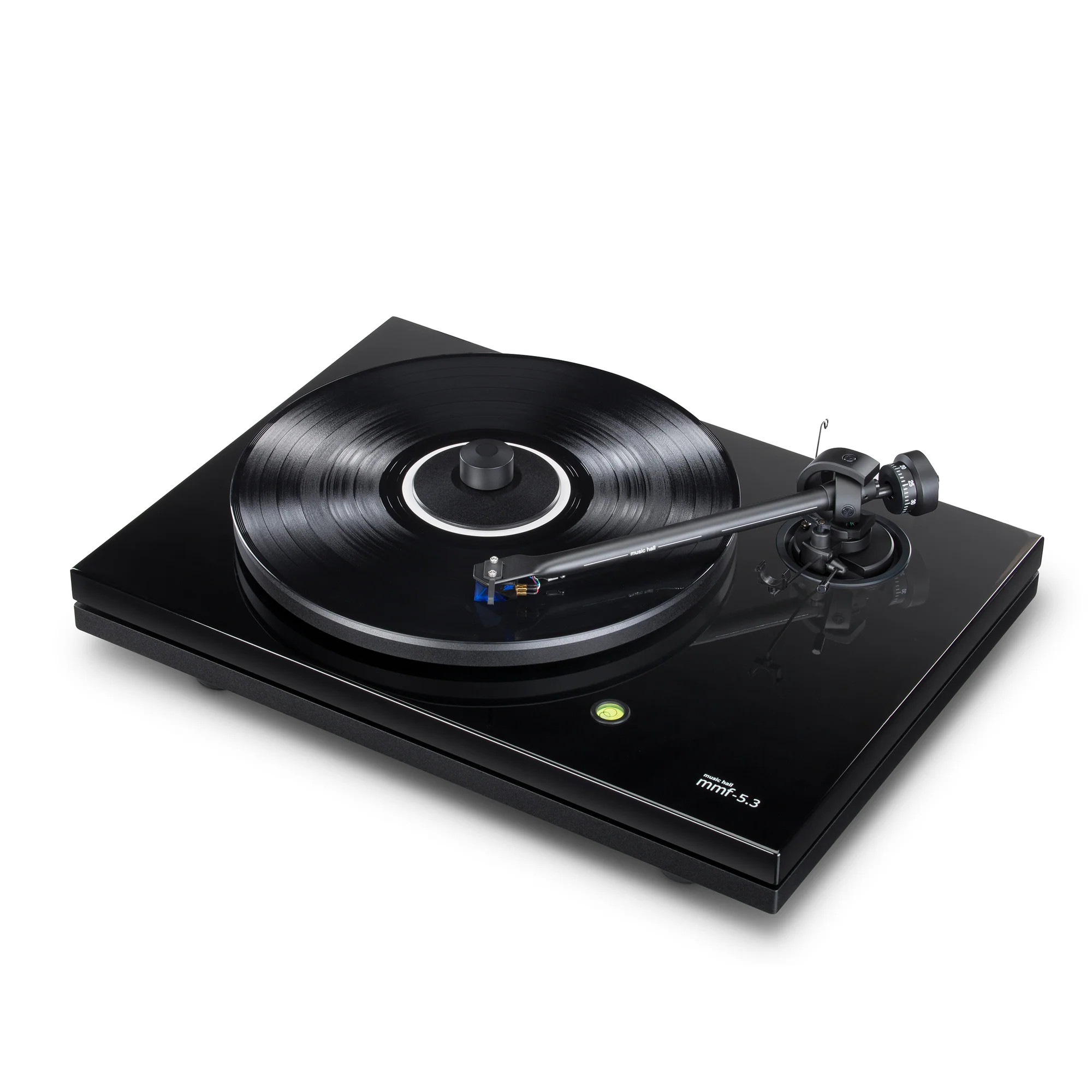

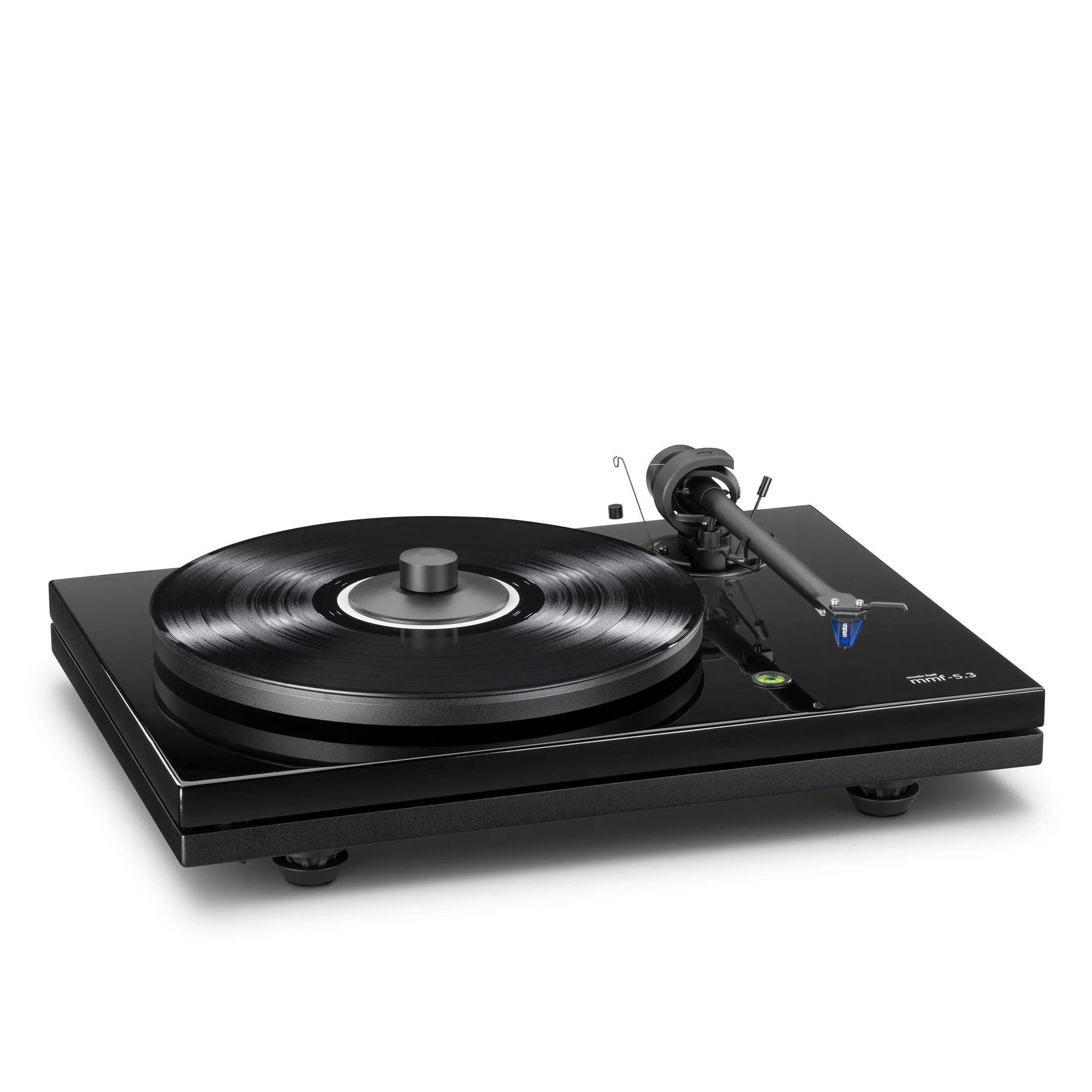

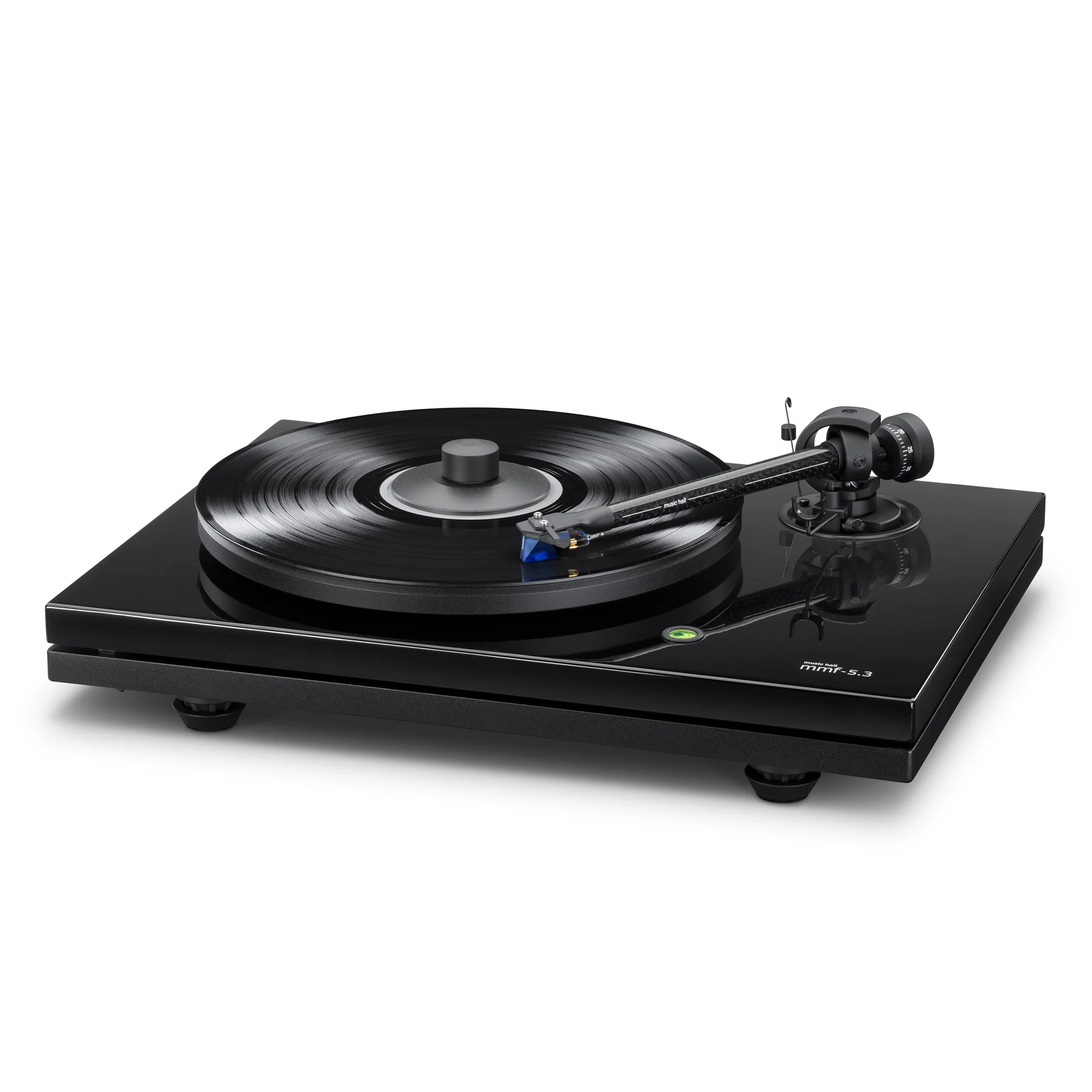

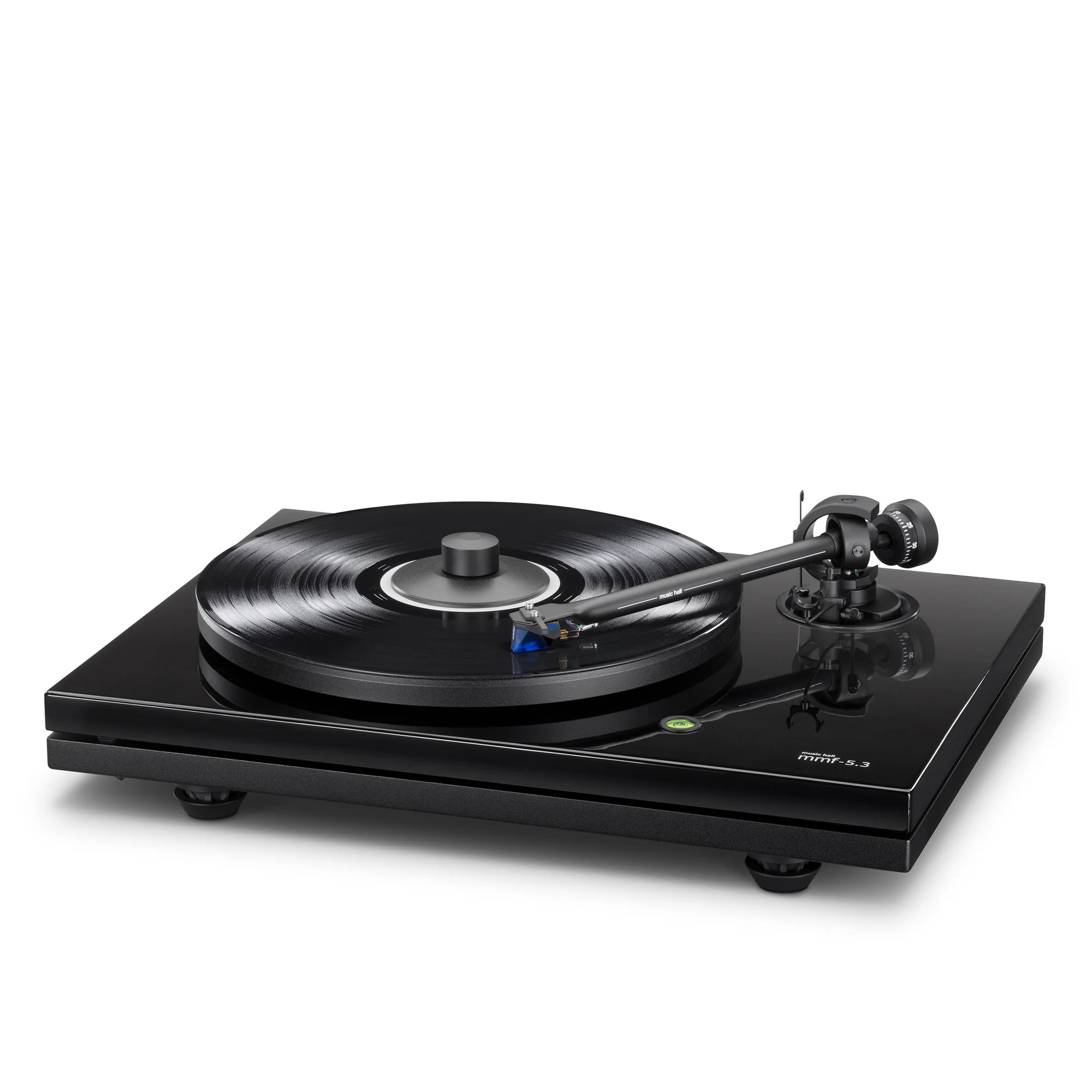

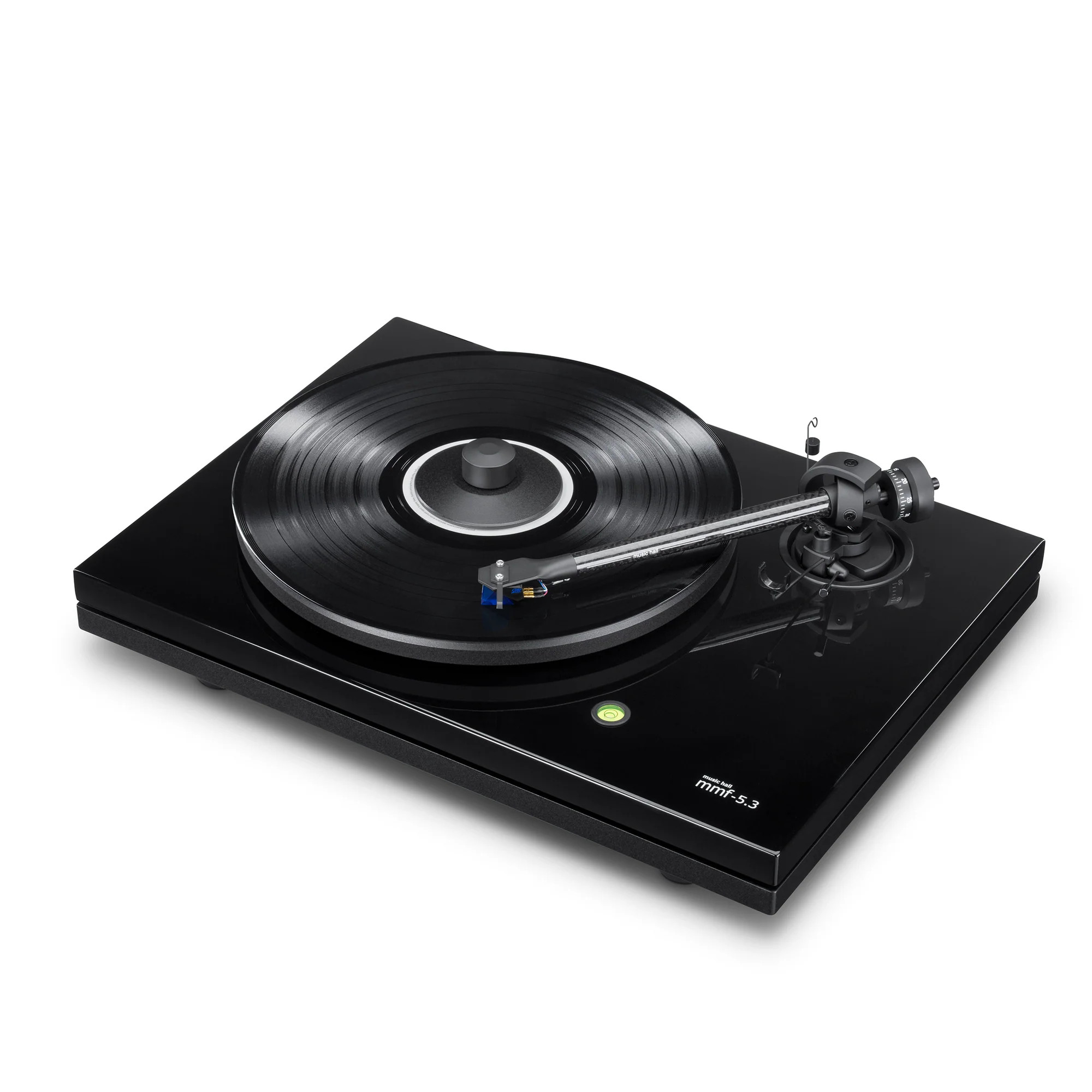

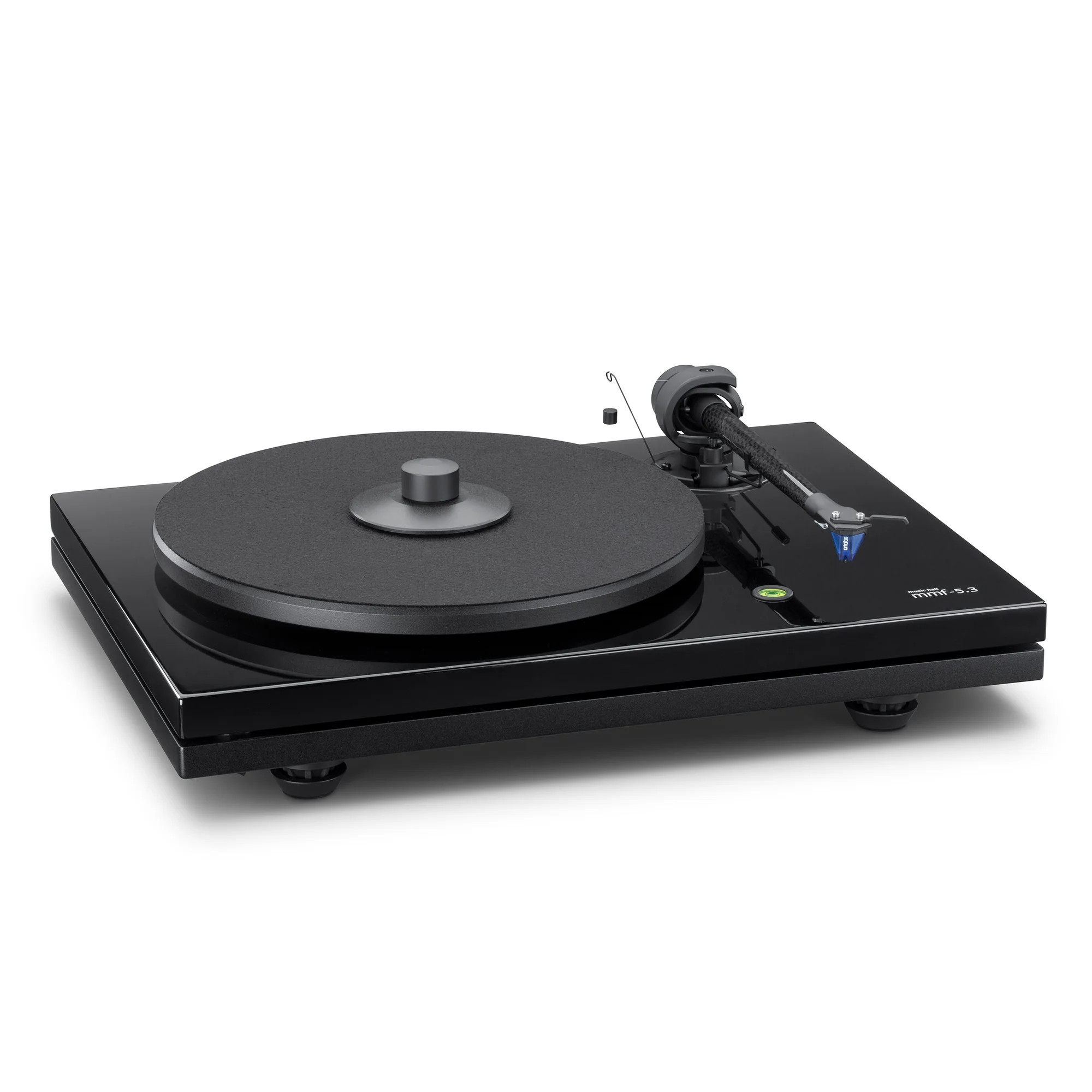

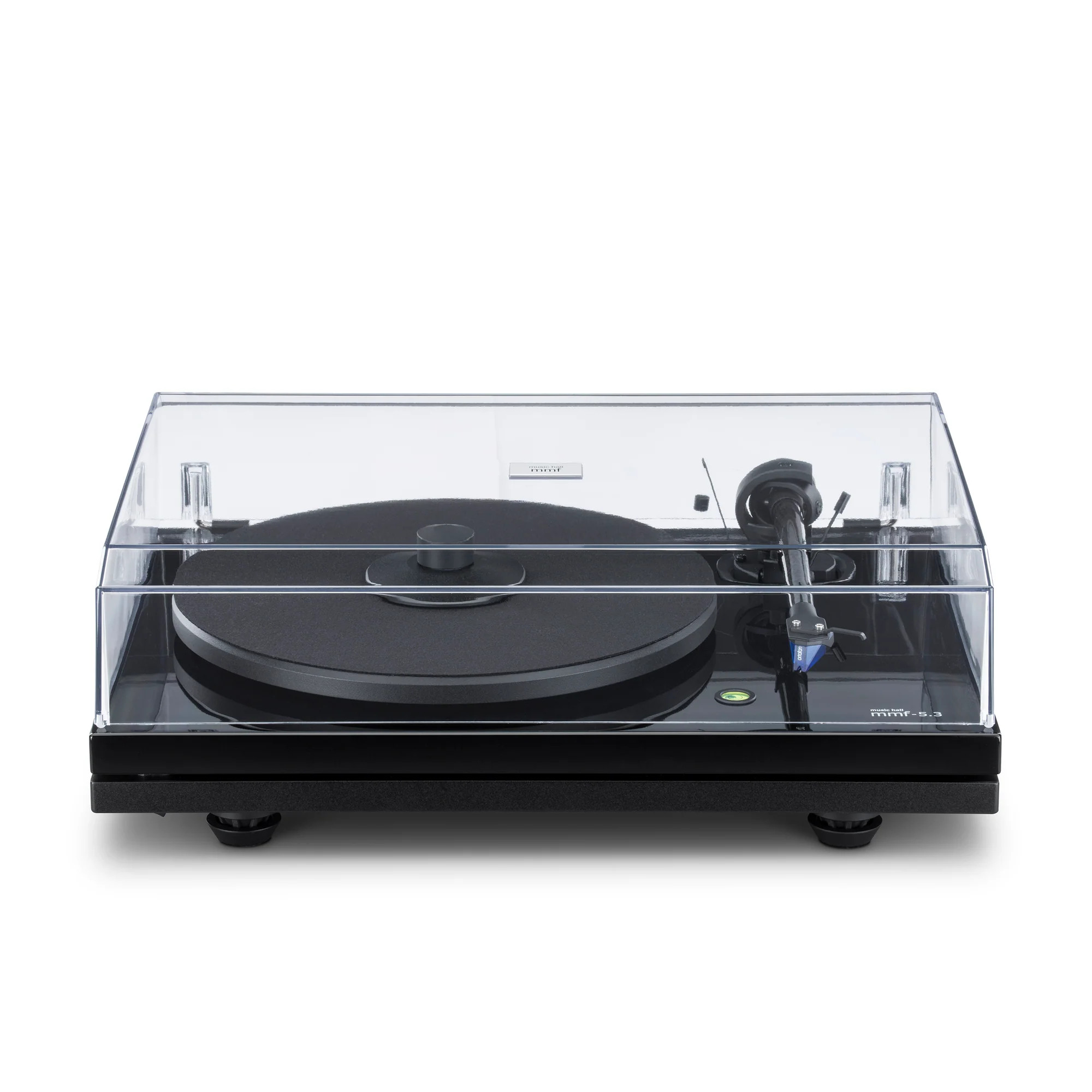

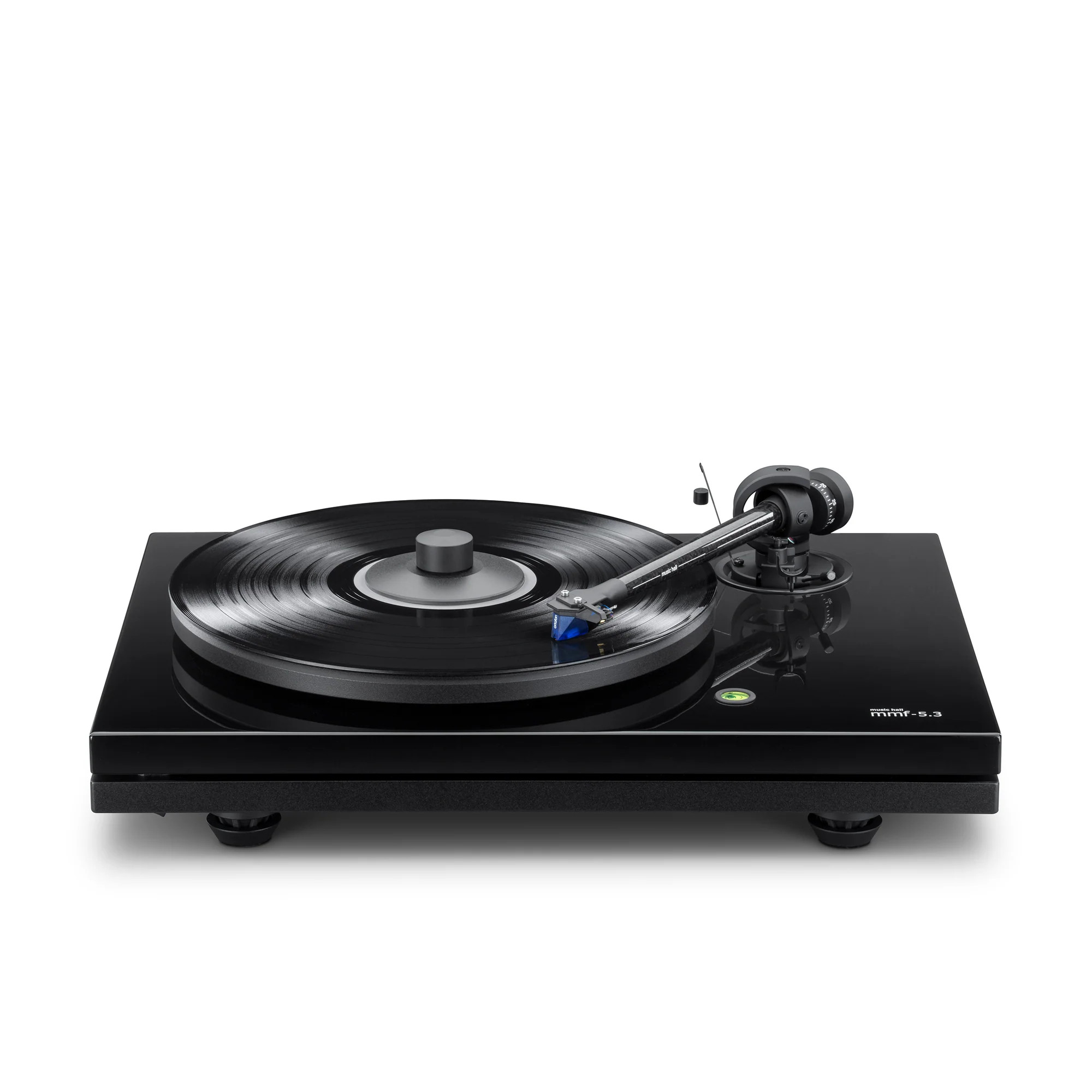

Vinyl record player Music Hall MMF-5.3 Piano 2m-blue/MM/ellipt/carbon
Unique double-ended design. Top tier 9" carbon fiber tonearm. Fully adjustable VTA, azimuth lift mechanism and shock absorbing arm. Synchronous DC motor. Two speed motor pulley at 33 1/3 and 45 rpm. Ortofon 2M Blue cartridge. Alloy plate. High quality gold RCA connectors. Detachable phono cable. Special adjustable feet for vibration damping. Dust cover and 45 rpm adapter included.
The Music Hall MMF-5.3 turntable table consists of two platforms, isolated from each other by six sorbothane shock absorbers.
Passive drive, steel support bearing with Teflon coating, two-speed synchronous DC motor decoupled from the table through elastic bushings, dynamically balanced non-magnetic stainless steel support disk with felt mat.
Carbon tonearm with adjustable tracking force, damped micro-lift, anti-skating, ultra-pure copper conductors, gold-plated RCA connectors. Special vibration-damping adjustable legs.
The player is equipped with an Ortofon 2M Blue pickup (MM). The Ortofon 2M series is designed to accurately and accurately extract information from the recording groove. The 2M series was developed in collaboration with Danish industrial designer Møller Jensen Design - the same designer who developed the award-winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours delicately follow the grooves on the surface of the record, 2M is a combination of form and function.
Product Main Features:
- Unique double plinth music hall design
- Stunning high-gloss piano black finish
- Premium 9" carbon fiber tonearm
- Fully adjustable VTA, azimuth and damped arm lift mechanism
- DC synchronous motor providing excellent speed stability is separately isolated on the bottom platform
- Two speed motor pulley for 33 1/3 and 45 rpm
- Ortofon 2M Blue cartridge with replaceable exposed elliptical diamond stylus ($236 value)
- The supplied cartridge is correctly aligned and installed
- Precision stainless steel main bearing coated with Teflon® for quiet operation
- Alloy record with screw-on clamp for records with soft felt mat

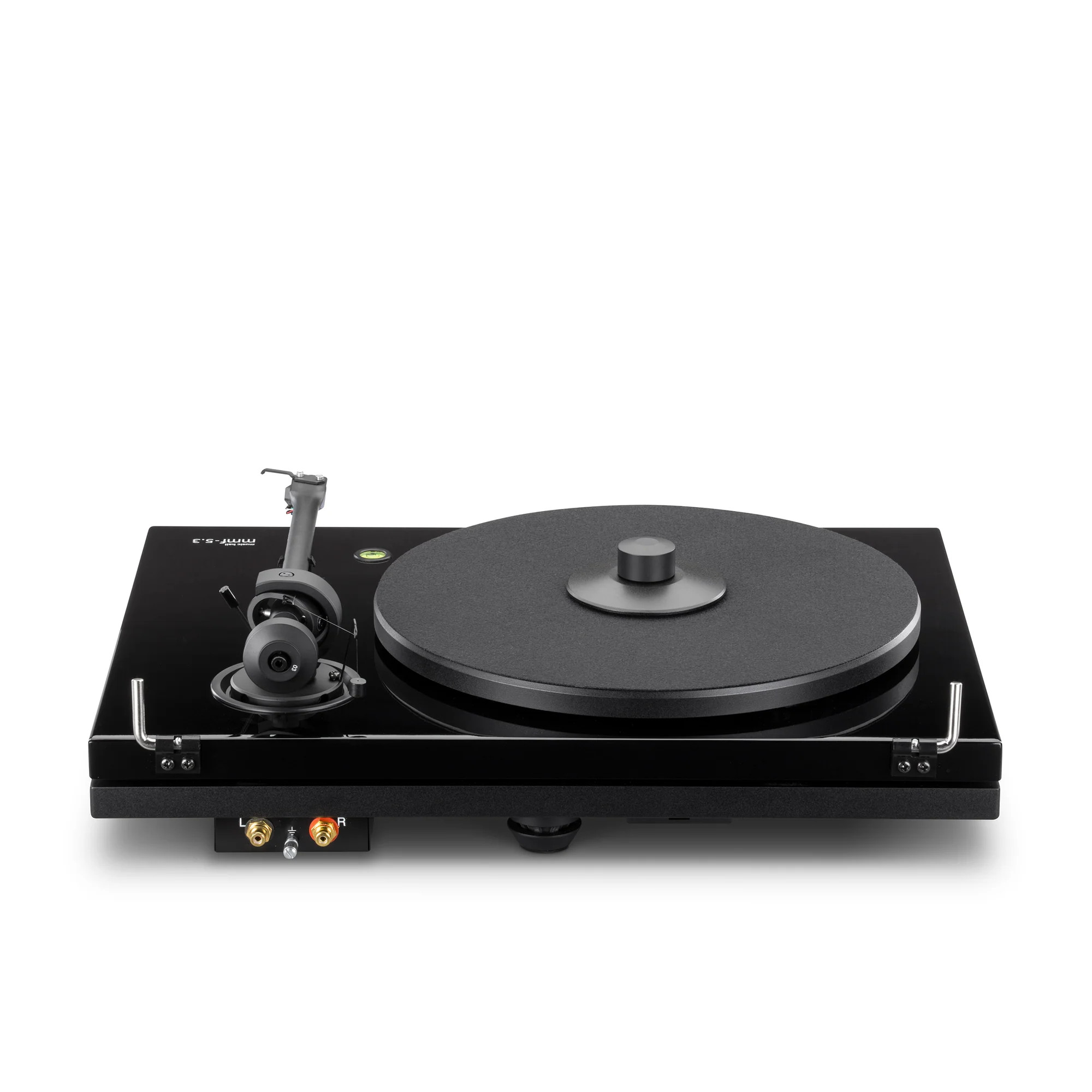

- High quality gold plated RCA connectors
- Detachable phono cable
- Special vibration-damping adjustable feet
- Built-in round spirit level for proper leveling
- Quiet, fully manual belt drive design
- Excellent instruction manual and easy assembly

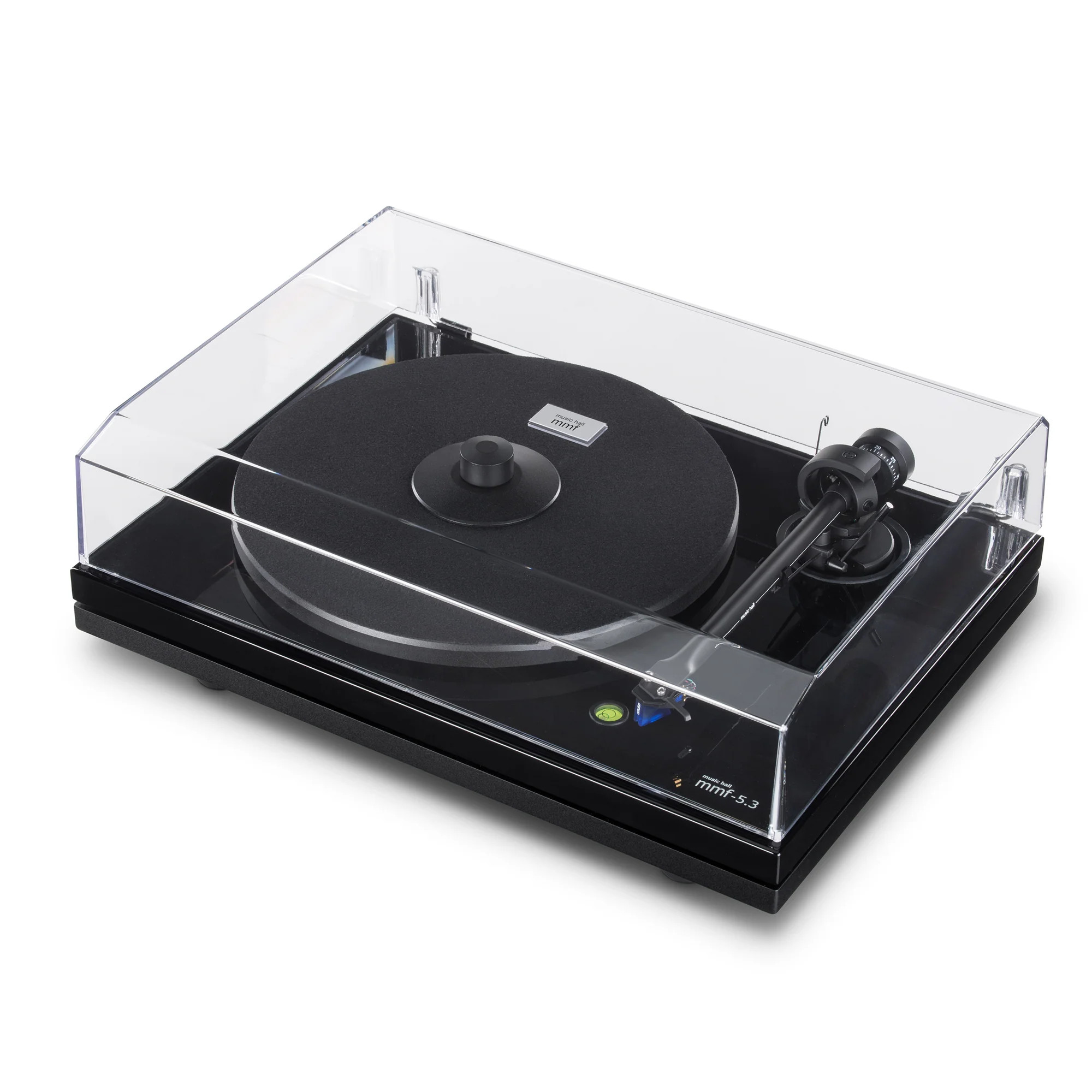

- Dust cover and 45 rpm adapter included
Specifications:
- Power Supply: Universal DC 15V/0-0.8mA Power Supply
- Power connection: 100 - 240 V 50 or 60 Hz
- Standby power consumption: < 1 W
- Speeds: 33 1⁄3 rpm (manual shift at 45 rpm)
- Fluctuation: ±0.10%
- Speed deviation: ±0.80%
- Effective tonearm length: 9" (230 mm)
- Tonearm weight: 250 g (without counterweight)
- Effective tonearm weight: 8.5 g
- Overhang: 18 mm
- Dimensions (WxDxD): 464 x 337 x 140 mm
- Weight: 10.89 kg packed
Brand | Music Hall |
---|---|
Model | MMF-5.3 |
Type | Vinyl disk player |
Control | Manual |
Nutrition | Universal power supply 15 V/0-0.8 mA DC. 100–240 Volts 50 or 60 Hz |
Cartridge type | MM |
Connection interface | RCA |
Speed | 33 ⅓ RPM 45 RPM |
Power consumption | in standby mode less than 1 W |
Color | Black |
Dimensions (H x W x D), mm | 140 x 464 x 337 |
Drive | Drive belt |
Effective tonearm length | 230 mm |
Effective tonearm mass | 8.5 g |
Weight, kg | 10,9 |
Phono stage | No |
Cartridge included | Yes |
Cover | Included |
Table material | MDF |
Tonearm material | Carbon |
Disc material | Stainless steel |
Type of tonearm | Straight |
Tonearm cable | Detachable |
Shell type | Non-removable |
