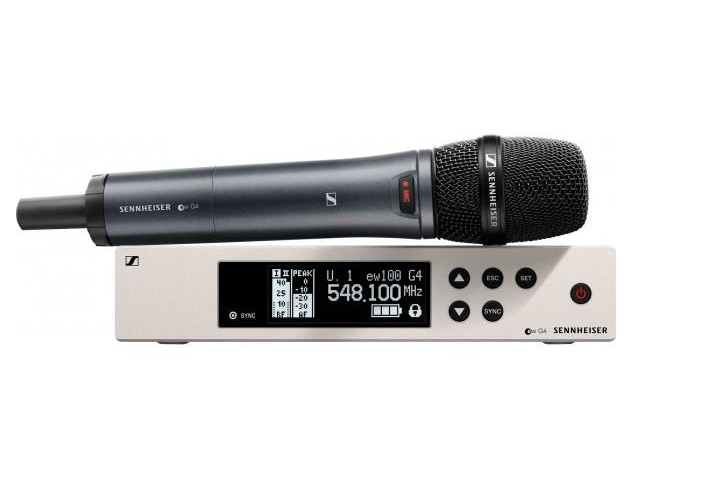

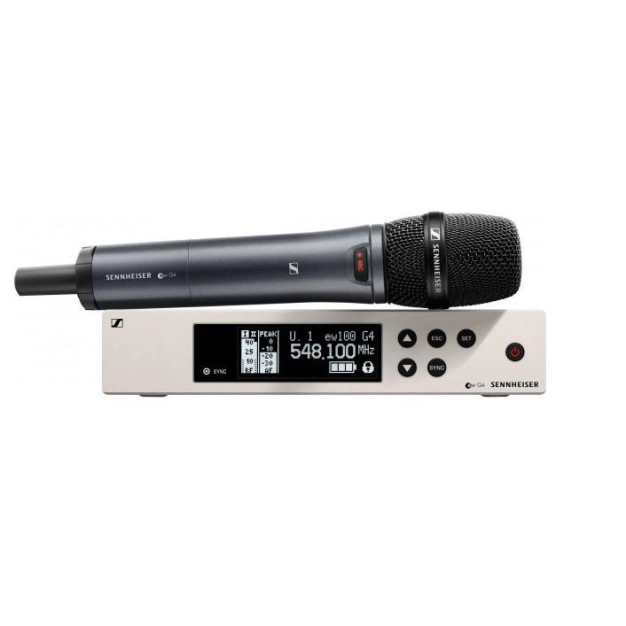

Радиосистема Sennheiser EW 100 G4-935-S-B

Versatile and highly protected microphone system for professional live sound, designed specifically for singers, musicians, talk artists, presenters, teachers and lecturers.

Main features of the Sennheiser EW 100 G4-935-S model

Versatile, compact and rugged wireless microphone system for professional vocalists, public speakers and musicians. The model provides a bandwidth of up to 42 MHz with a choice of 1680 tunable reception frequencies in a stable UHF band and the function of simultaneously and quickly tuning up to 12 connected receivers.

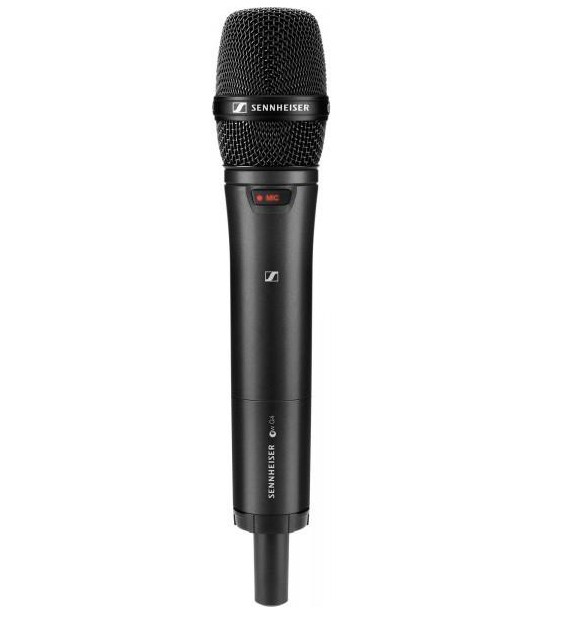

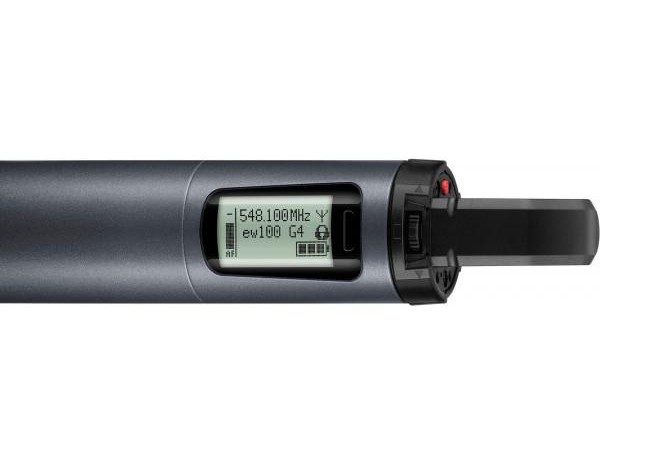

The EW 100 G4-935-S Wireless Handheld Transmitter has a lightweight and durable aluminum housing, a convenient mute switch and is compatible with the latest Sennheiser e 935 and e 945 microphone capsules, which are capable of transmitting live sound with the highest quality.

Benefits of the Sennheiser EW 100 G4-935-S

versatile and highly protected microphone system for professional live sound work;

designed specifically for singers, musicians, colloquial artists, presenters, teachers and lecturers;

comes with a wireless handheld transmitter in a lightweight and durable aluminum case with a built-in "Mute" switch;

the transmitter is compatible with the latest Sennheiser e 835, e 845, e 865, e 935 and e 945 microphone capsules, which are capable of transmitting the highest quality live sound;

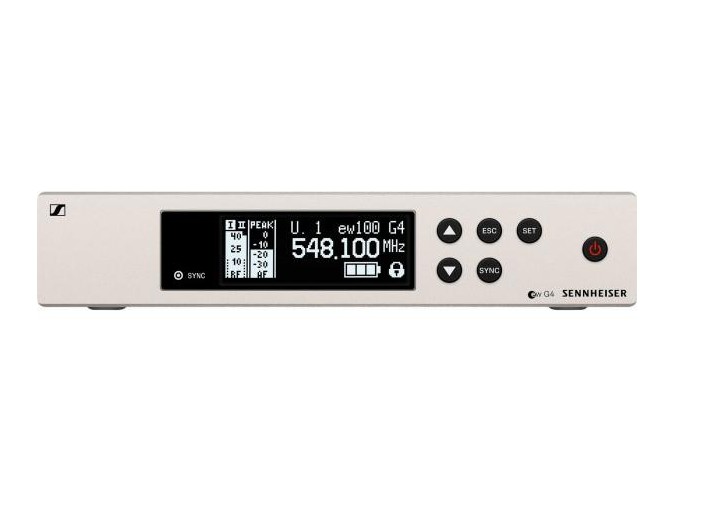

the receiver True Diversity (technology "true diversity") is made in an all-metal case the size of half the width of the rack and is equipped with an informative and intuitive LCD screen;

synchronization of the transmitter and receiver is easy and simple - through the infrared port;

the new "binding" function allows you to very quickly assign frequencies to each of the receivers (max. up to 12 units);

up to 20 compatible channels;

bandwidth up to 42 MHz with a choice of 1680 configurable reception frequencies in the UHF band;

signal transmission radius - up to 100 m;

increased signal transmission power - up to 30 mW (in some countries it may be limited by law).

Equipment

diversity receiver EM 100 G4 True Diversity;

hand transmitter SKM 100 G4-S;

microphone capsule MMD 935-1 (only for model 935-S);

proprietary Sennheiser GA 3 adapter for installing the system receiver in a standard 19" rack;

clip-on holder MZQ 1 for microphone;

power unit;

2 AA batteries;

2 antennas;

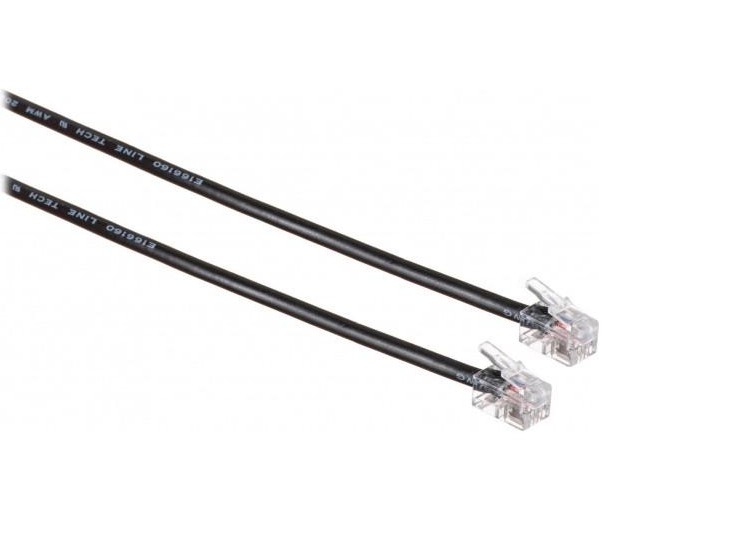

RJ 10 cable;

quick user guide for quick connection of the system;

quick user guide for safe operation of the system.

Specifications:

Warranty, months 24

Frequency range, MHz B (626-668)

RF range (bottom), MHz 470

RF range (top), MHz 1800

Number of receive frequencies 1680

Number of preset frequencies 12

Bandwidth, MHz 42

Frequency response range (low), Hz 25

Reproducible frequency range (top), Hz 18000

Signal-to-noise ratio, dB(A) 110

THD, % ≤ 0.9%

Degree of suppression of adjacent channels, dB 65

Blocking, dB 70

Audio connectors XLR, 6.3 mm jack

Audio output level (balanced) XLR: +18dB (max.)

Audio output level (unbalanced) 6.3 mm jack: +12 dB (max.)

Power supply 12 V DC

Dimensions, mm 190 x 212 x 43

Weight, g 980

Frequency response range (low), Hz 80

Reproducible frequency range (top), Hz 18000

Rated supply voltage, V 2.4

Working time, h 8

Dimensions, mm 50 x 265

Weight, g 450

Transducer type dynamic

Microphone directivity cardioid

Sensitivity, *-1 dBV/Pa 2.5

Maximum sound pressure level for THD 0.5%, dB 154
