Беспроводная радиосистема Sennheiser EW 135P G4-C

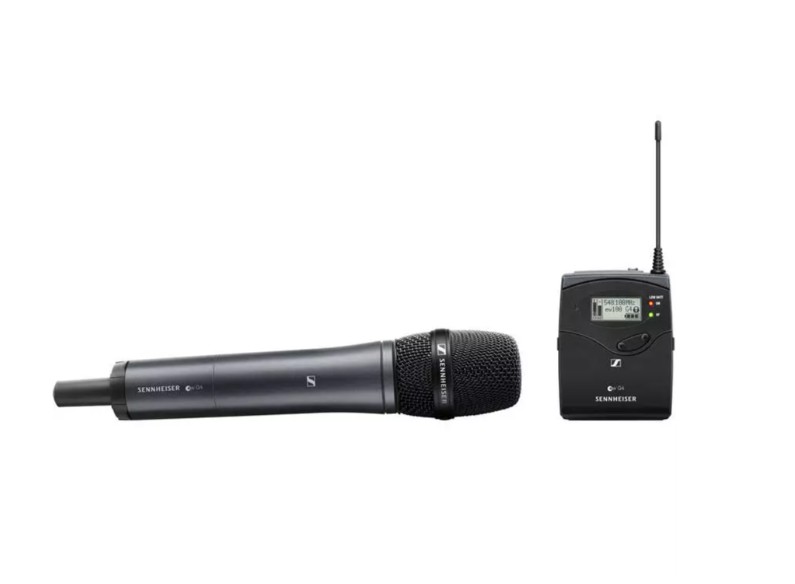

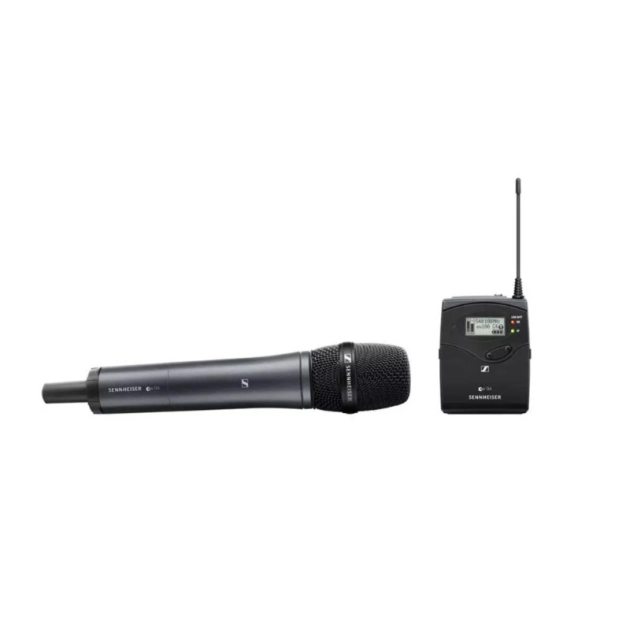

On-camera radio system: SKM 100 G4 dynamic cardioid radio microphone with e835 capsule, EK 100 G4 camera receiver, accessories included. This package includes an EK 100 G4 receiver, an SKM 100 G4 handheld transmitter with an e835 dynamic cardioid capsule.
Sennheiser ew 135P G4-C radio system
On-camera radio system: SKM 100 G4 dynamic cardioid radio microphone with e835 capsule, EK 100 G4 camera receiver, accessories included.
The Sennheiser ew 135P G4-C Wireless Microphone System is a brand new addition to the Sennheiser wireless microphone family and is fully compatible with all previous series. This package includes an EK 100 G4 receiver, an SKM 100 G4 handheld transmitter with an e835 dynamic cardioid capsule. Accessories included for CA 2 camera, 1/8" - 1/8" cable and 1/8" - XLR cable. It can be used for live audio capture, broadcast and movies, business and educational applications.
The SKM 100 G4 transmitter and EK 100 G4 receiver have an updated high-contrast LCD display and a dedicated escape button. They synchronize channel and frequency with the push of a button. In addition, an additional battery allows you to charge the batteries while they remain inside the blocks. The CA 2 mount adapter allows for easy installation on the shoe.
Features Sennheiser ew 135P G4-C:
Rugged all-in-one wireless system with high configuration flexibility
Excellent sound quality
Easy to use and fast to set up
Powerful and reliable wireless transmission
Range up to 100 meters
Up to 8 hours of work

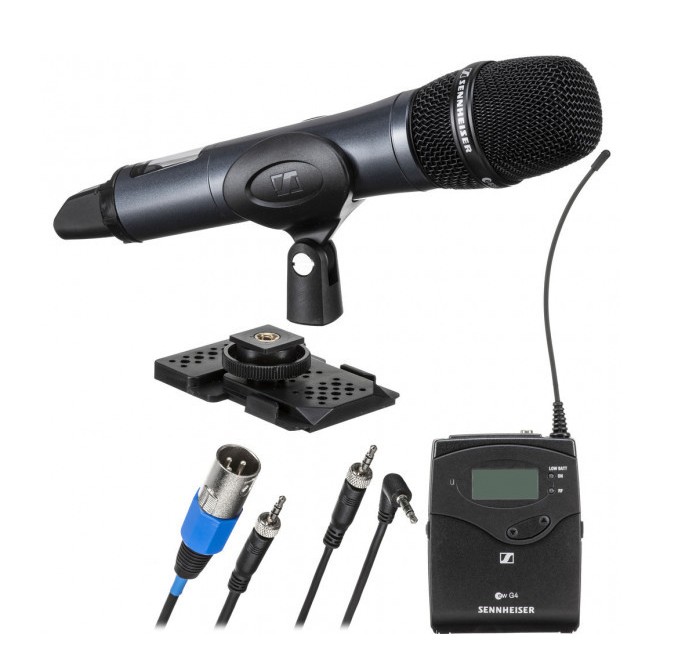

Equipment:

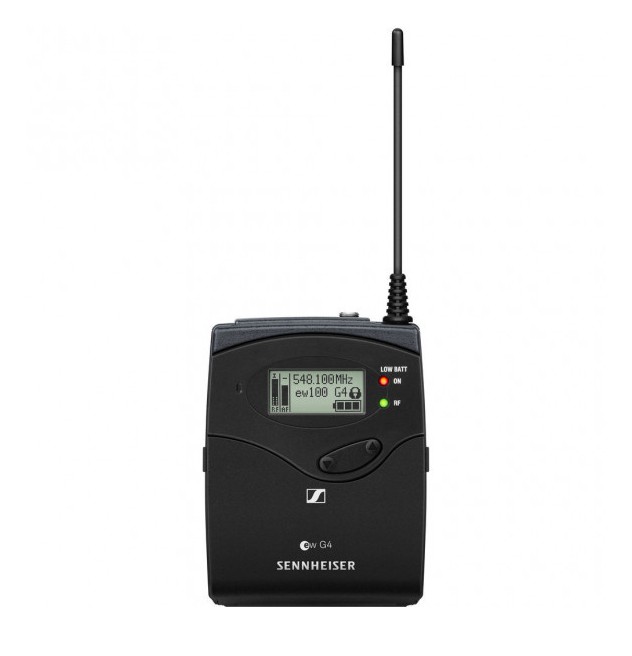

Camera receiver EK 100 G4

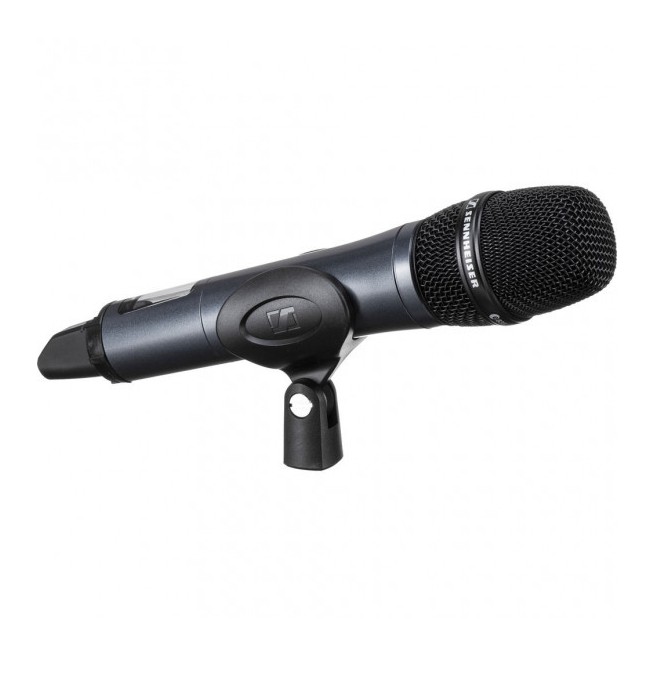

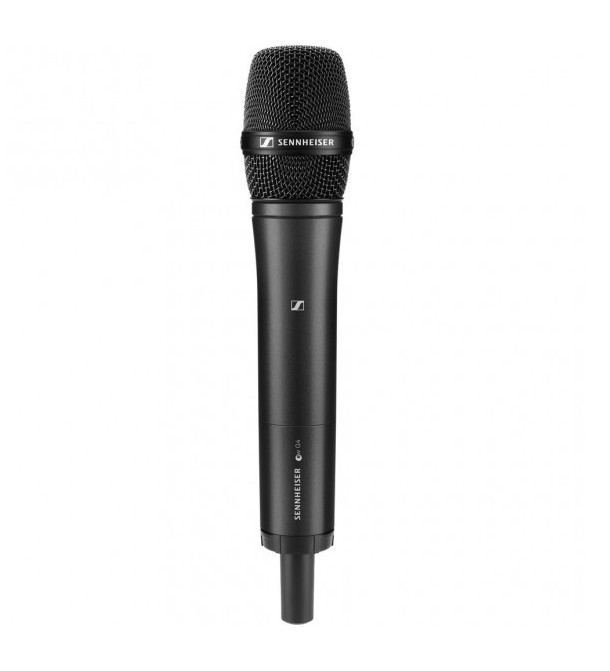

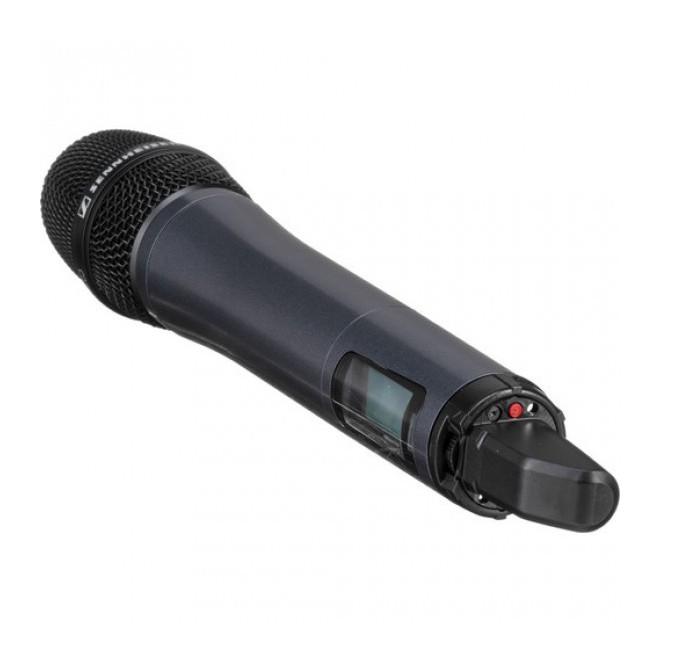

Hand transmitter SKM 100 G4
Microphone capsule MMD 835-1
Microphone holder MZQ 1

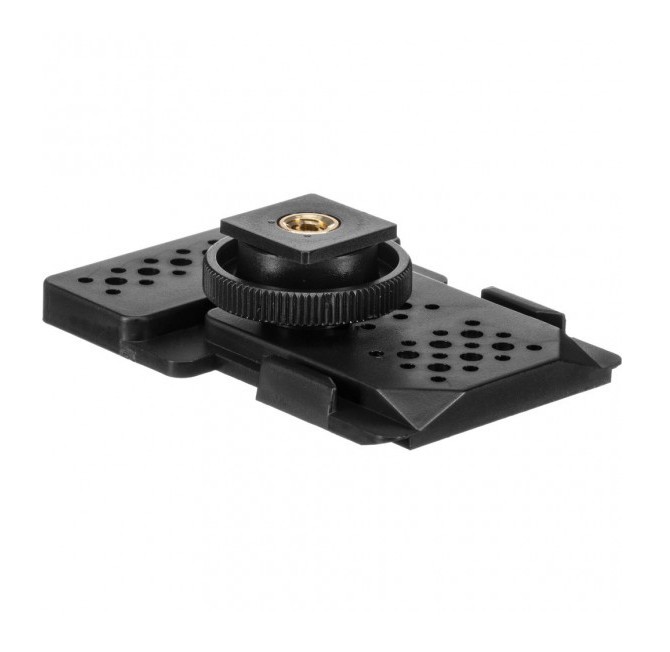

Camera Adapter CA 2

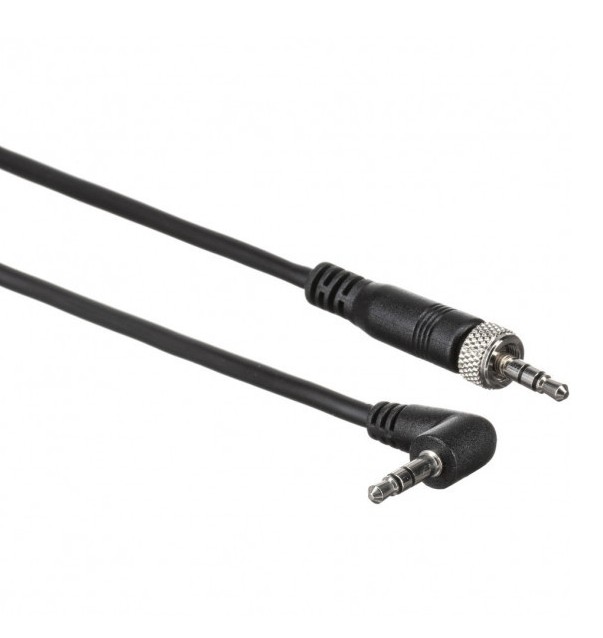

Cable 3.5mm CL 1

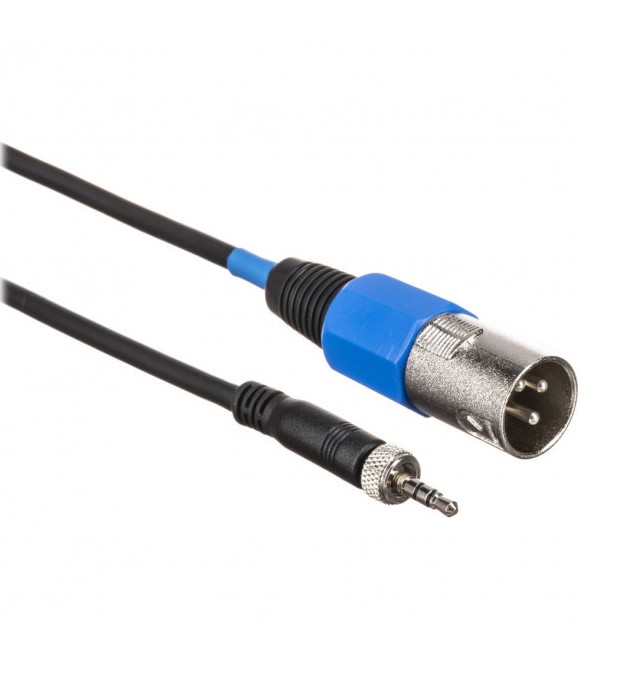

Cable XLR - 3.5 mm CL 100
4 AA batteries
Manual
The Sennheiser ew 135P G4-C radio system can be purchased in the following frequency ranges:
A1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
GB: 606 - 648 MHz
G: 566 - 608 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
JB: 806-810 MHz
K+: 925 - 937.5 MHz
Features Sennheiser EK 100 G4:
Reception frequency:
Maximum. 1680, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory channels, no intermodulation 1 frequency bank with 12 programmable channels
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9%
Aluminum output: 3.5 mm jack: +12 dBu (mono, unbalanced)
Signal-to-noise ratio: ≥ 110 dBA
Bandwidth: up to 42 MHz
Definition of deviation: ± 48 kHz
Rated deviation: ± 24 kHz
Working time: usually 8 hours.
Modulation: Wideband FM
Input channel deviation: ≥ 65dB
Intermodulation attenuation: ≥ 65 dB
RF sensitivity: <1.6uV for 52dBA eff S/N
Squelch low: 5 dBuV, mid: 15 dBuV, high: 25 dBuV
Reception principle: adaptive diversity
Blocking: ≥ 70 dB
Powering: 3V battery / 2.4V rechargeable battery
Power supply: 2 AA batteries, 1.5V or BA 2015 accupack
Current consumption:
rated voltage: typ. 180 mA
with receiver off: ≤ 25 µA
Temperature: -10°C to +55°C
Dimensions: Approx. 82 x 64 x 24mm
Weight (including batteries): Approx. 160 g
Features Sennheiser SKM 100 G4:
Transmission frequency:
Maximum. 1680, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory channels, no intermodulation 1 frequency bank with 12 programmable channels
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9%
Signal-to-noise ratio: ≥ 110 dBA
RF output power: max. 30 mW
Bandwidth: up to 42 MHz
Definition of deviation: ± 48 kHz
Rated deviation: ± 24 kHz
Working time: usually 8 hours.
Modulation: Wideband FM
impulse impedance: 40 kΩ
Maximum. Input voltage: 3 Veff
AF frequency response: 80 - 18,000 Hz
Stability frequency: ≤±15ppm
Power supply: 2 AA batteries, 1.5V or BA 2015 accupack
Powering: 3V battery / 2.4V rechargeable battery
Current consumption:
rated voltage: typ. 180 mA
with transmitter off: ≤ 25 µA
Temperature: -10°C to +55°C
Dimensions: Approx. Ø 50 x 265 mm
Weight (including batteries): Approx. 450 g
Features Sennheiser MMD 835-1:
Sound pressure level (SPL): 154 dB SPL
Translation principle: dynamic
Package: cardioid
sensitivity: 2.1mV/Pa
