Portable transmitter SennheiserSKM 835-XSW-E

Product description Handheld transmitter SennheiserSKM 835-XSW-B

The SennheiserSKM 835-XSW-B handheld transmitter is a wireless microphone equipped with an e835 dynamic cardioid capsule. It is designed to interface with the EM-XSW 1 or EM-XSW 2 wireless receivers (sold separately) and can be used to capture audio for vocalists, presenters and live audio applications. With automatic frequency management, the transmitter offers up to 10 compatible channels in a stable UHF band.

SennheiserSKM 835-XSW-B handheld transmitter operates in the frequency range: 614-638 MHz

Peculiarities:

For live performances and lead vocals

e835 dynamic cardioid capsule

Automatic frequency control

Up to 10 compatible channels

Integrated antenna

Built-in mute switch

This transmitter is built to withstand even the toughest demands of everyday on-stage use and delivers reliable transmission with an easy-to-use setup. Whether you're in a band, theater or seminar, the SKM 835-XSW handheld transmitter lets you get things done and not worry about channel selection.

Equipment:

Hand transmitter SKM 835-XSW;

Microphone capsule e835;

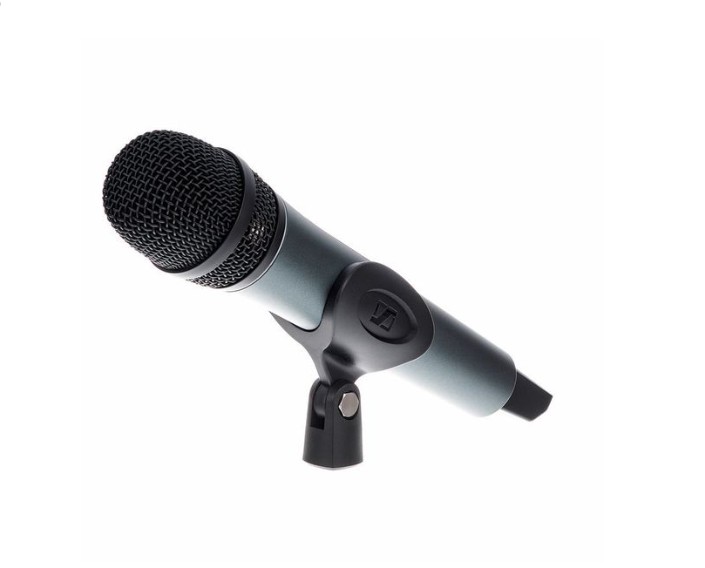

Microphone holder MZQ 1;

2 AA batteries;

Manual.

Specifications:

Type: Handheld Transmitter

Frequency range: 614-638 MHz

Modulation: Wideband FM

Switching bandwidth: up to 24 MHz

Signal to noise: ≥ 103dBA

Total harmonic distortion: ≤ 0.9%

Transmitter Sync: 2.4GHz Low Power OQPSK (only active during sync)

Operating temperature range: 32 to 104° F (0 to + 40° C)

Microphone:

Microphone Type: Dynamic

Orientation: Cardioid

Output power: 10mW

Frequency response: 80 Hz to 16 kHz

Capsule Input Sensitivity: 1.5mV/Pa

Transmitter sensitivity adjustment range: 0 to -30 dB, adjustable in

Step 10 dB

Construction Material: Durable ABS body

Power supply: 2 AA batteries, 1.5 V

Working time: approximately 10 hours.

Dimensions: 260 x 50 mm

Weight: 245 g
