Wireless system SennheiserXSW 1-835-B

Sennheiser XSW 1-835-B is a wireless vocal radio system consisting of an EM-XSW1 receiver and an SKM 835-XSW microphone transmitter with a cardioid pattern, operating in the 614 - 638 MHz band.

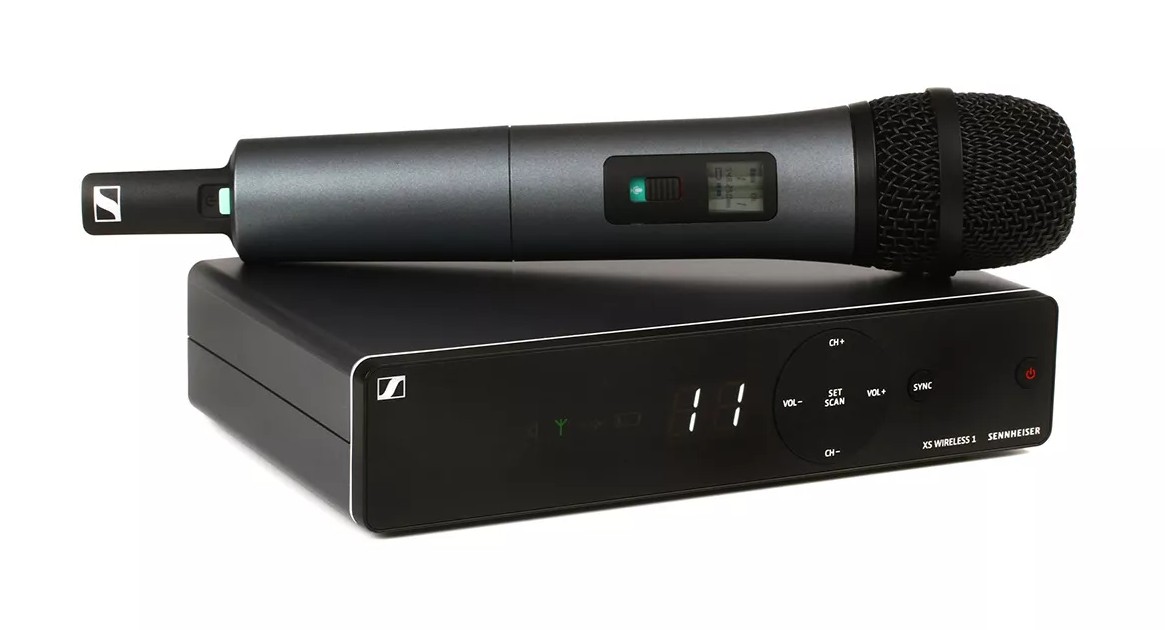

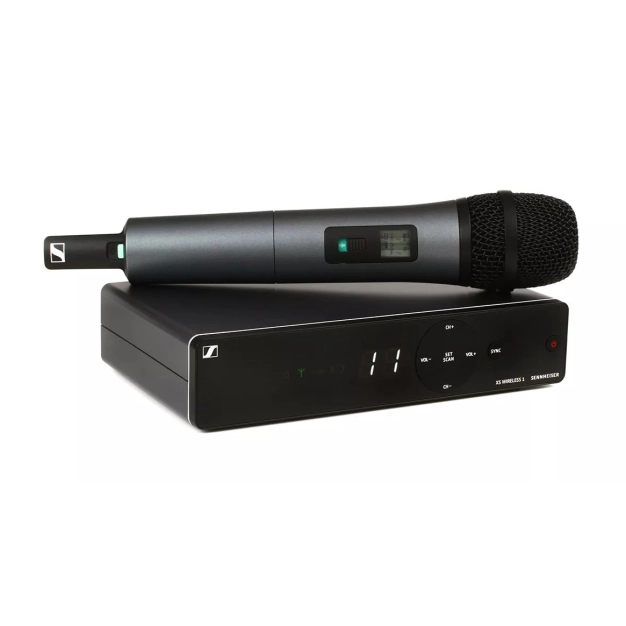

Sennheiser's XSW 1-835-B wireless system is designed to enhance vocals or speech during live performances and presentations. The radio system includes a desktop receiver, a microphone transmitter and a holder for mounting the microphone transmitter on a stand.

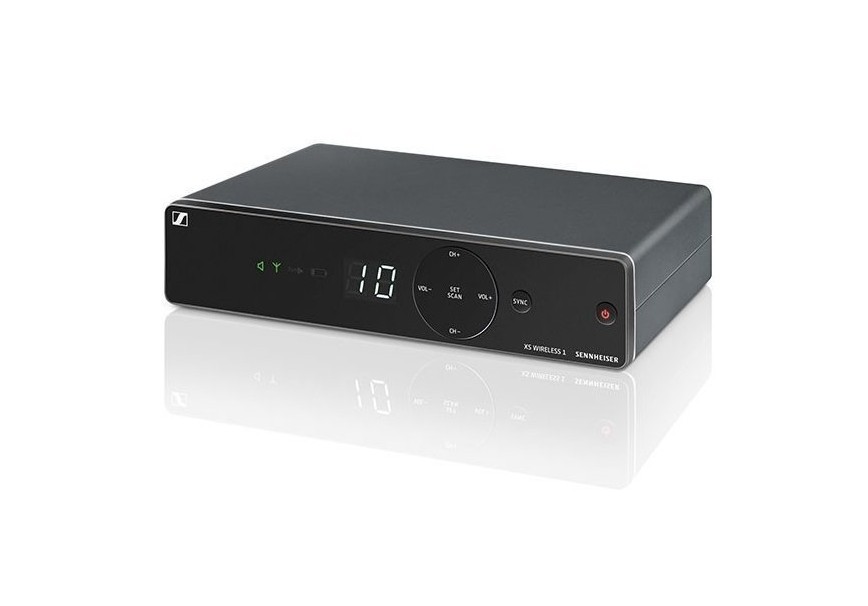

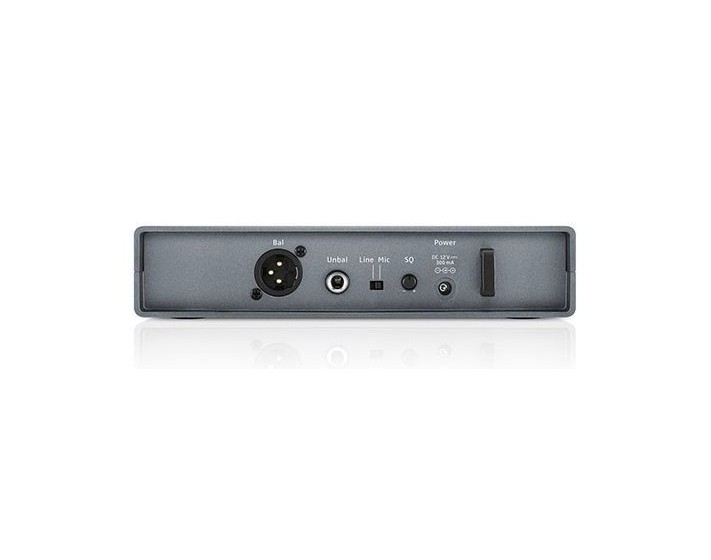

 The desktop EM-XSW1 can operate up to 10 channels simultaneously. Rugged receiver with built-in antennas equipped with space diversity technology. Scanning and synchronization is performed by pressing the Sync button on the front panel of the receiver. The receiver is equipped with a balanced XLR input and an unbalanced 1/4" jack, as well as a switch for selecting the signal source: microphone or line.

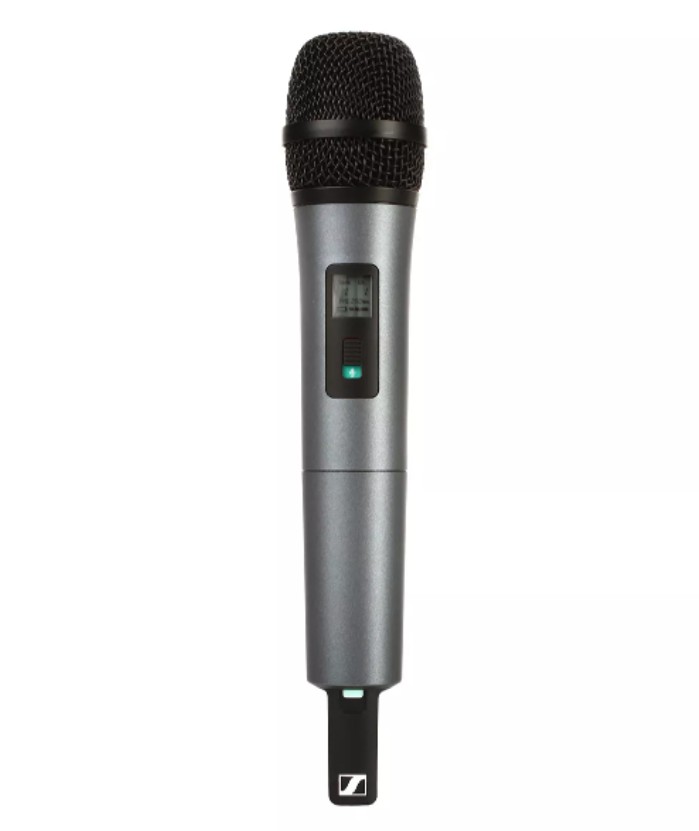

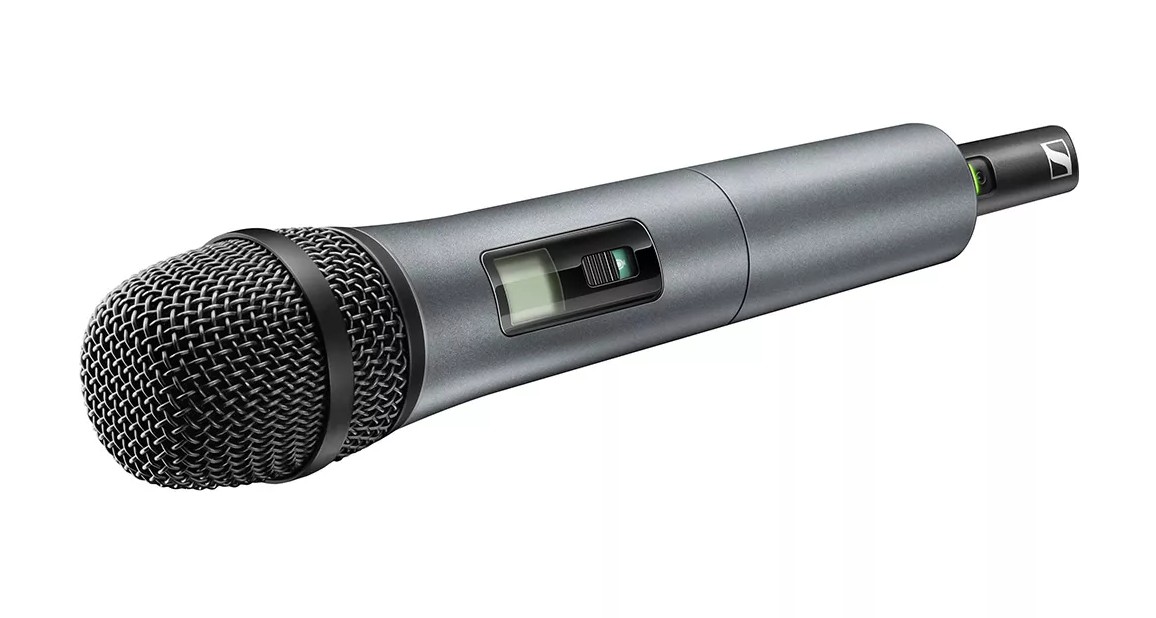

 The SMK 835-XSW transmitter features an updated microphone capsule for the dynamic 835 from the Evolution series. The cardioid polar pattern allows for high-quality sound pickup without unnecessary noise from the off-axis zone. The transmitter works up to 10 hours on 2 AA batteries. On the body of the SMK 835-XSW there is a display that reflects the state of charge of the battery and connection to the receiver, as well as switches for signal mute and transmitter on/off.

 The kit includes:

Desktop Receiver EM-XSW1

Microphone transmitter SMK 835-XSW

Power supply NT 12-5 CW

Microphone holder MZQ1

Receiver Specifications:

 Desktop Wireless Receiver for XSW Radio Systems

1-button scan and sync

Simple user interface with display

Built-in Diversity Antennas

Up to 10 compatible channels

Durable metal cabinet

 Transmitter Features:

 Microphone transmitter

Dynamic microphone capsule

Microphone frequency response 80 Hz - 16 kHz

Cardioid polar pattern

Signal-to-noise ratio ≥ 103 dB

Includes holder for mounting on a microphone stand

CHARACTERISTICS

Manufacturer: Sennheiser

Microphone Specifications

Microphone Type : Dynamic

Orientation :

cardioid

Frequency response : 80 Hz - 16 kHz

Sensitivity : 1.5 mV/Pa

Power: 2 x AA batteries

Microphone System Specifications

Radio system type: Analog

Number of channels: 1

Frequency range: 614 - 638 MHz

Transmitter Specifications

Form Factor : Capsule Handheld

Battery type: 2 x AA

Battery life: 10 hours

Transmitter size: 260mm x 50mm

Transmitter weight: 0.25 kg

Receiver Specifications

Display: LED (OLED)

Outputs: 1 x XLR, 1 x 1/4"

Receiver size : 42mm x 200mm x 127mm

Receiver weight: 0.34 kg
