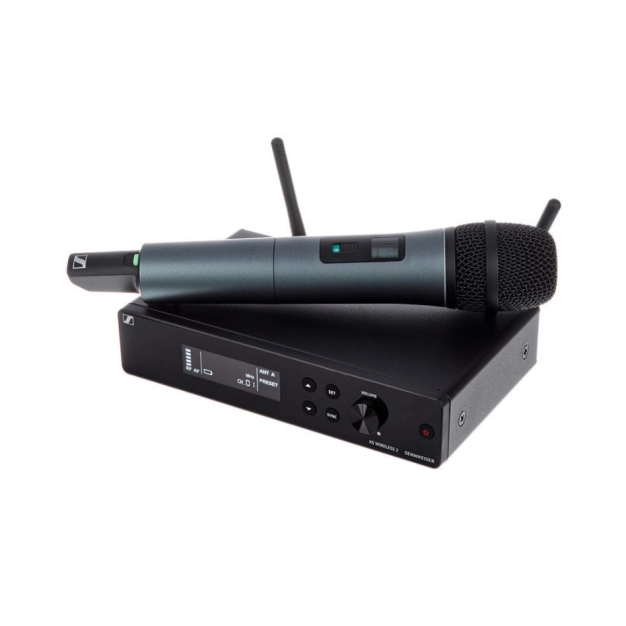

Wireless radio system Sennheiser XSW 2-835-B

The XSW 2-835 vocal wireless microphone system is focused on professional use, therefore, not only guarantees optimal quality and stability of the audio signal transmission, but also is highly adaptable and easily configured to solve problems of any level of complexity. The XSW 2-835 is designed to best meet all the demands you have and will make regarding the quality of your voice processing. In fact, the system can improve with you.

The XSW 2-835 delivers high-quality, stable UHF transmission, supports up to 12 parallel compatible transmission channels, features an intuitive control system with a concise and clear LCD screen and a wide range of manual settings, and is able to work well for as long as you need it. Moreover, in any, even very unfavorable conditions, on any stage and outside it.

The XS WIRELESS 2-835 VOCAL SET is an all-in-one wireless microphone system designed specifically for vocal performers, hosts, entertainers, presenters and presenters. The XSW 2-835 is optimized from the ground up for live sound and comes with an Evolution family handheld transmitter with an improved e835 microphone capsule (improved dynamic cardioid). In addition to the XS WIRELESS 2-835 VOCAL SET, it also includes a full-featured True Diversity Dual Rack Receiver in a rugged metal housing with proprietary mounting kit.

MAIN ADVANTAGES OF THE SENNHEISER XSW 2-835 SYSTEM

* thanks to the advanced microphone capsule e835 provides the highest quality of live vocals;

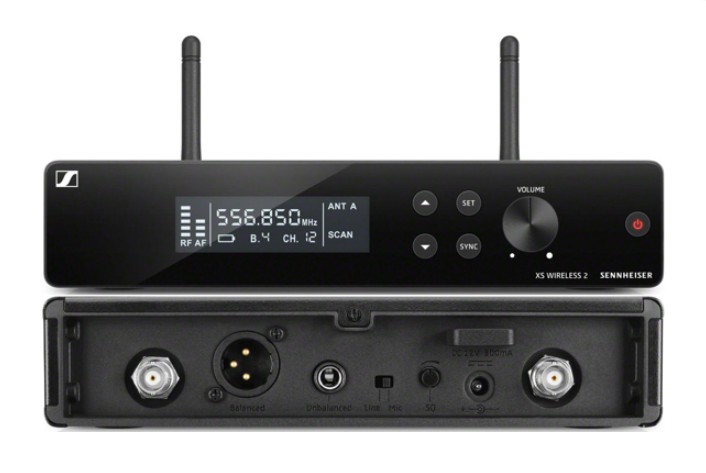

* included - a full-featured True Diversity rack receiver in a rugged metal case with a branded mounting kit;

* external antennas;

* automatic frequency control and automatic synchronization through a remote channel;

* the ability to work in the widest UHF range;

* up to 12 compatible channels.

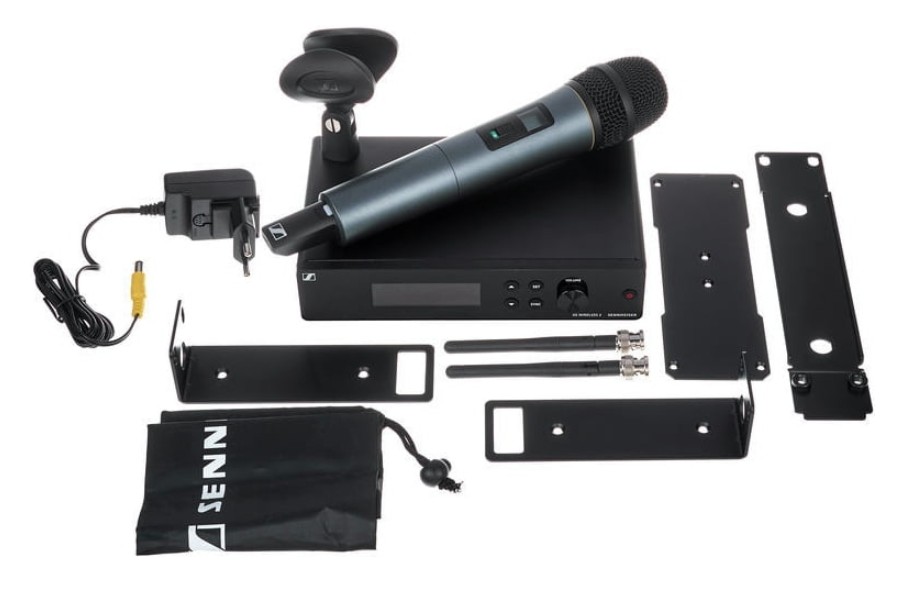

SENNHEISER XSW 2-835 MICROPHONE SYSTEM SUPPLY

* 1 receiver EM-XSW 2;

* 1 hand transmitter SKM 835-XSW;

* 1 microphone holder MZQ 1;

* 1 power supply unit NT 12-5 CW;

* 2 AA batteries;

* 1 mounting kit;

* 1 case;

* user guide.

Main technical characteristics

Characteristic Indicator

RF frequency range, MHz A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz

Number of frequencies 8 banks of 12 frequencies

Frequency bandwidth, MHz 24

Musical frequency range, Hz 80 to 16,000 Hz

Signal-to-noise ratio, dB (A) ≥ 103 dBA

Harmonic distortion factor, % ≤ 0.9%

Output signal level (balanced output XLR), dBu 12

Output signal level (unbalanced output Jack), dBu 6

Receiver power supply 12 V DC nom. / 300mA

Receiver dimensions, mm 200×42 x 127

Receiver weight, g 680

RF transmitter output signal power, mW 10

Transmitter power, V 2 AA

Duration of continuous operation of transmitter batteries, h 10

Microphone type dynamic

Microphone directivity cardioid

Transmitter dimensions, mm 260×50

Transmitter weight, g 245
