Radio system with handheld microphone AUDIO-TECHNICA ATW-13DE3

Radio system with handheld microphone AUDIO-TECHNICA ATW-13DE3

AT-One, Audio-Technica's entry-level UHF wireless system. With a 2 x 4 channel frequency plan for increased flexibility, a durable yet stylish build quality and a simple user interface, the AT-One is ready to be your ideal wireless companion.

AT-One is designed with simplicity and ease of use in mind. Equipped with a practical carrying case, rack mount kit and detachable antennas, the AT-One is the perfect balance of price and performance, ideal for those looking for accurate and reliable performance at an entry-level price. The AT-One frequency plan is divided into two groups with 4 available channels in each group divided between pan-European license-free frequency band and LTE duplex. Users can select up to 4 channels in one group.

Available in three configurations, the AT-One can be purchased with a belt pack or handheld transmitter. The ATW-13 portable system features the ATW-T3 portable cardioid condenser transmitter with 10 mW RF output and 10 hours of battery life.

Designed to be quick and easy to use A perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at a low cost.

The frequency plan of AT-One is divided into two groups of 4 channels in each group, one in the range of allowed European frequencies, and the other in the duplex gap. Users can select up to 4 channels per group

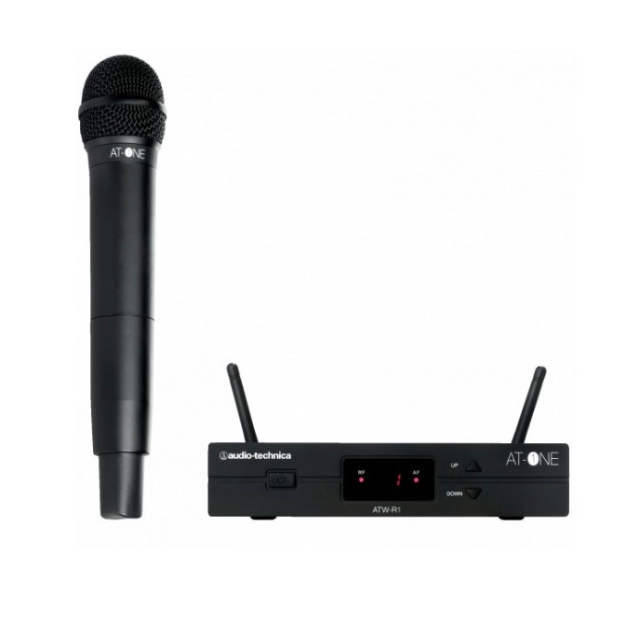

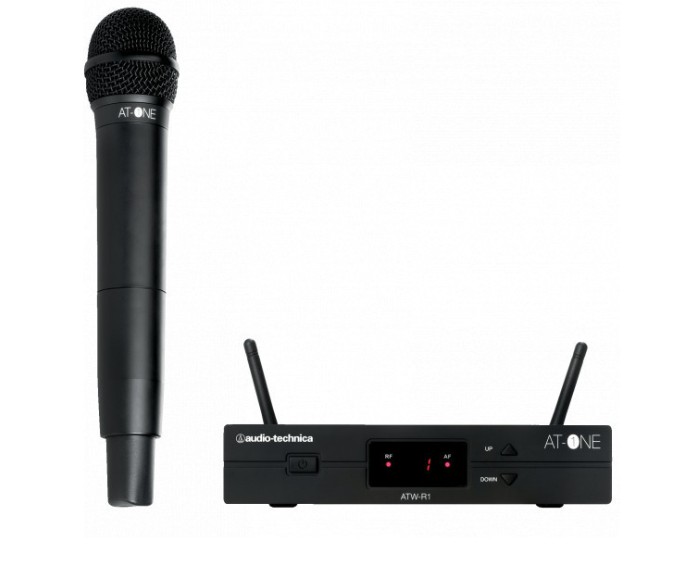

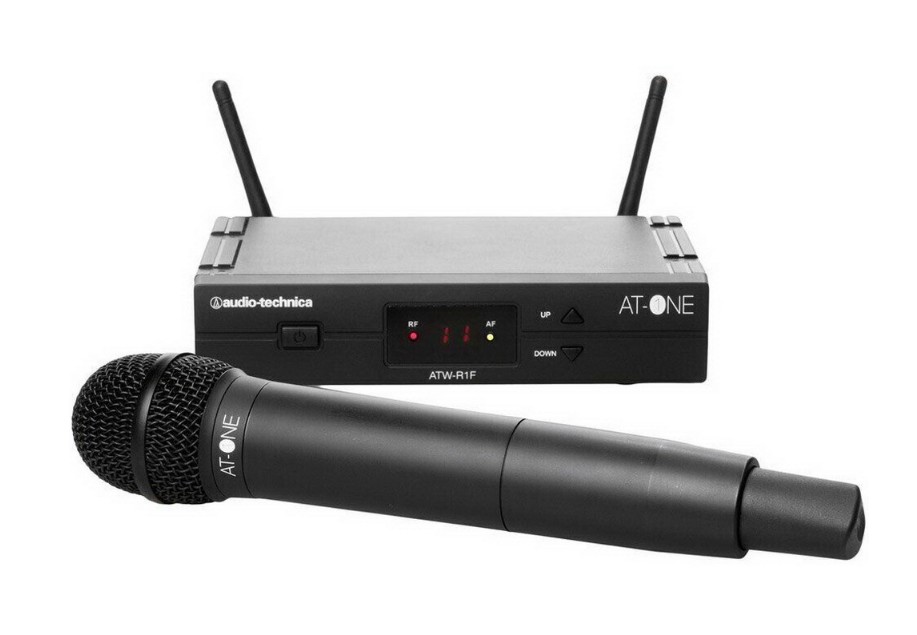

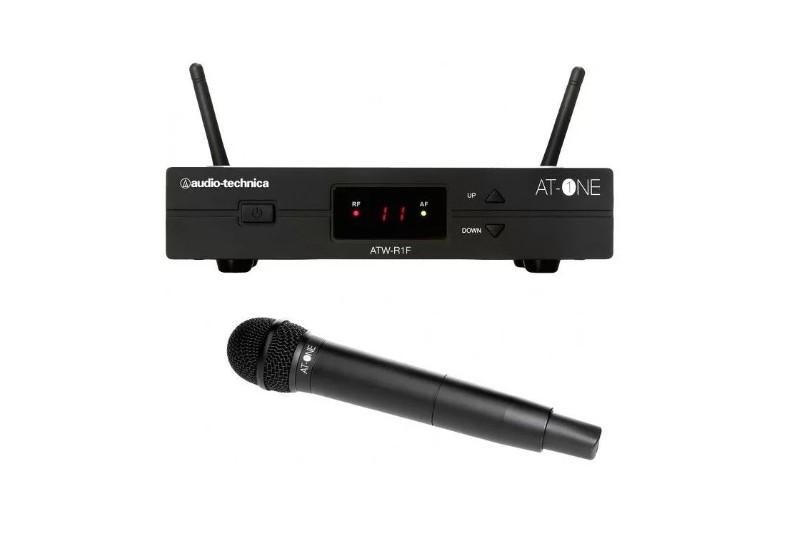

The ATW-13 system is equipped with a portable cardioid condenser handheld transmitter.

RF transmission power 10 mW

Up to 10 hours battery life on 2 x 1.5V AA batteries

RF indicator

Rugged construction with high quality components

Supplied in a transport case with rack mounting kit and detachable antennas.

Characteristics:

F-Band operating frequencies: 824-831 MHz, 863-865 MHz

Modulation mode FM

Frequency response 60 Hz - 16 kHz

Frequency stability +/- 0.005%, phase-locked loop frequency adjustment

Operating range 60 m typical

Number of channels 2 x 4 frequencies

Portable transmitter RF output power 10 mW

Parasitic emissions in accordance with national regulations

Condenser cardioid microphone element

Battery type two alkaline type AA 1.5 V

Battery life 10 hours - depending on battery type and usage pattern Dimensions 268 mm, length - 52 mm (diameter)

Accessories Included Stand Clamp

Receiver Antenna switching diversity of the receiving system Image suppression 55 dB minimum Sensitivity 10 dBμV (signal-to-noise ratio 60 dB at 20 kHz deviation)

Maximum output level mic/line (0/-20dB)

Antenna input type BNC, 50 - bias voltage 12

V DC 100 mA each

Dimensions 200mm x 42mm x 122mm (W x H x D)

Weight 418 g without accessories

Accessories included AC adapter, antennas, rack mount adapter, protective carrying case

Audio output: balanced 4 dBV

Unbalanced audio output -2 dBV

HH dynamic range: 108dB, BP 103dB (at maximum offset)

Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack

Output connectors (microphone) Balanced: XLRM type

Total harmonic distortion <1% - 20 kHz deviation at 1 kHz
