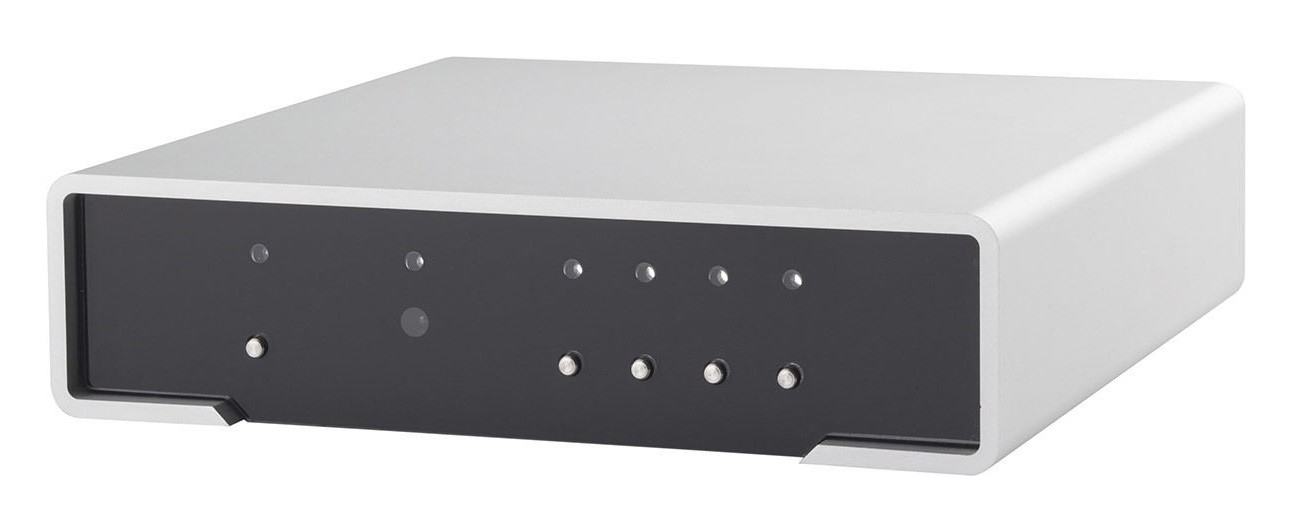

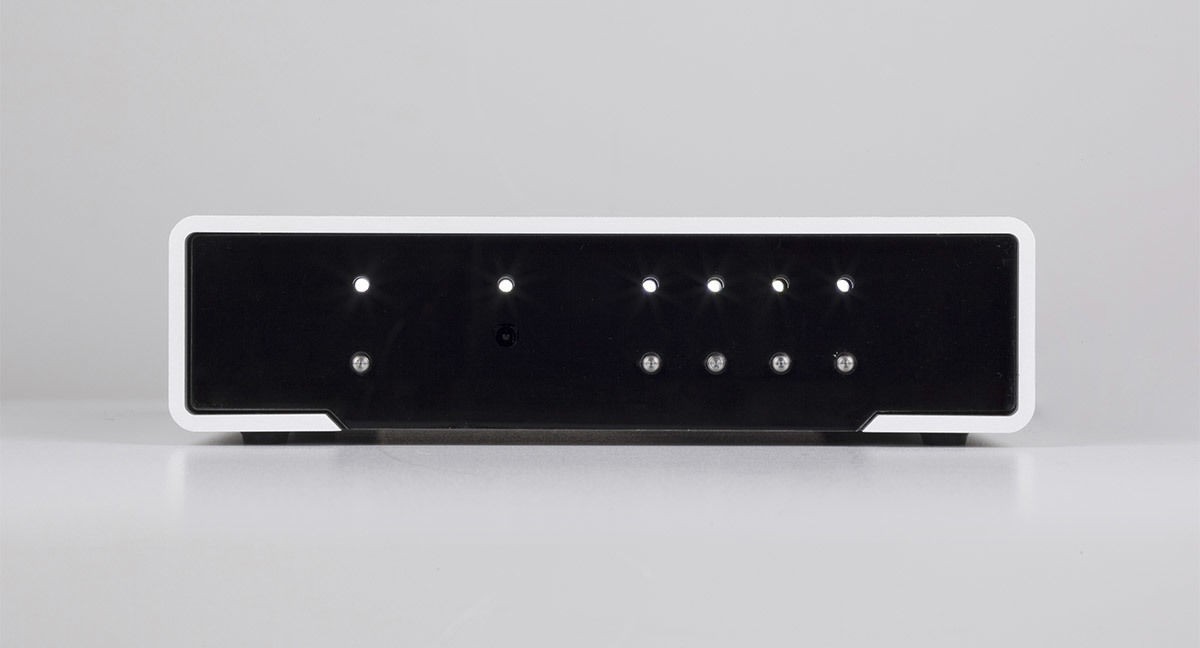

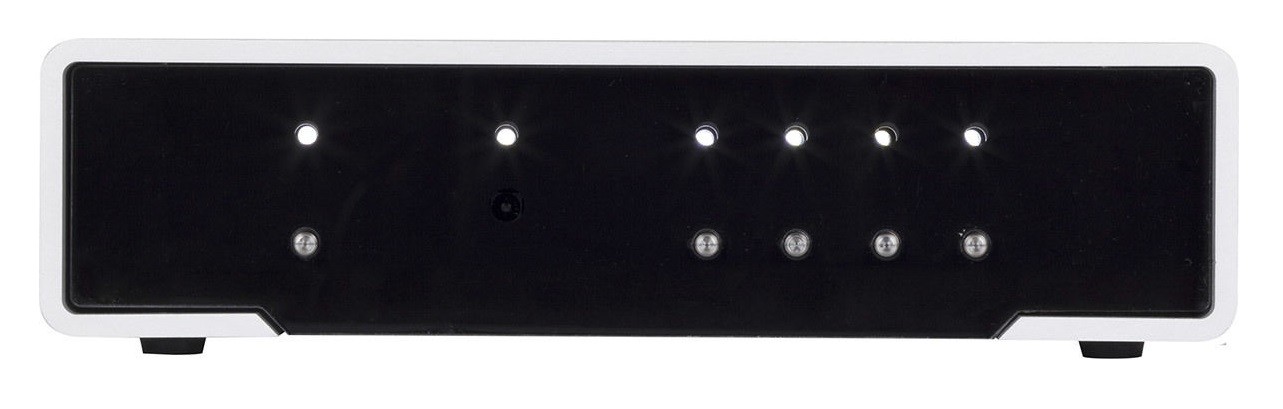

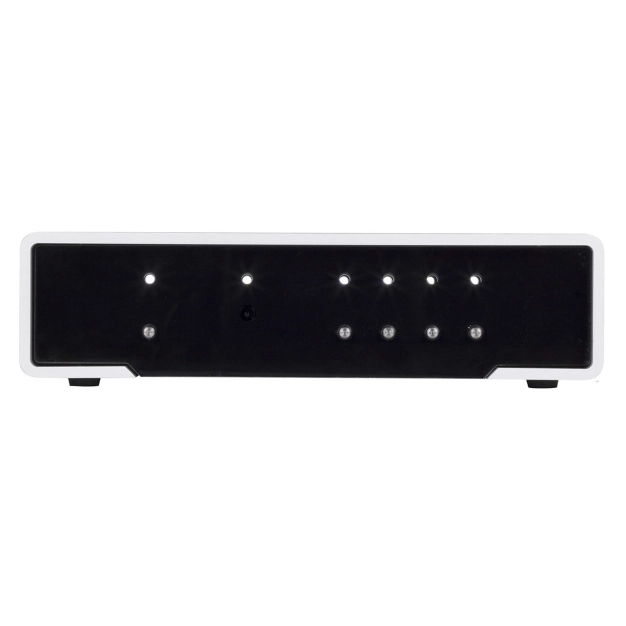

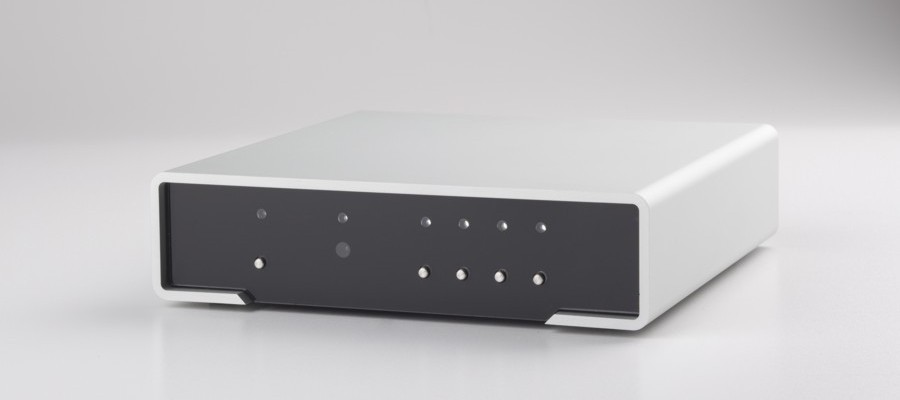

Power Supply M2Tech Van Der Graaf MkII
The Van Der Graaf MkII power supply is extremely easy to use, with benefits ranging from higher clock stability (with associated increased soundstage clarity and detail) to darker backgrounds due to lower noise levels.

Power Supply M2Tech Van Der Graaf MkII
When it comes to great sound, the quality of the power supplied to a Hi-Fi device is over the top. Noise in the supply current can be added to the audio or associated with critical circuits such as the clock, resulting in less than optimal performance.
Therefore, a low noise source is a must to squeeze the last bit of audio quality out of your DAC or amplifier. Of course, a low noise design implies quality, footprint and cost far beyond what is acceptable in budget designs.
That's why M2Tech offers the Van Der Graaf MkII : Users who have purchased the Young MkIII and a Nash Phono preamp can later budget extra to improve their performance by adding the Van Der Graaf MkII .
Extremely easy to use, its benefits range from higher clock stability (with associated increased soundstage clarity and detail) to darker backgrounds due to lower noise levels.
The Van Der Graaf MkII remembers the activation order of the four outputs: it follows the reverse order when it is turned off and remembers the activation order when it is turned on again.
The Van Der Graaf MkII is equipped with an IR receiver and is capable of intercepting ON/OFF commands from the remote controls of all other Rockstars devices. This allows the user to turn on and off all connected devices with a single command in the correct switching order.
Characteristics:
- Device type: power supply
- Installation method: shelf, desktop
- Inputs: 100 V - 240 V AC 50/60 Hz (VDE socket)

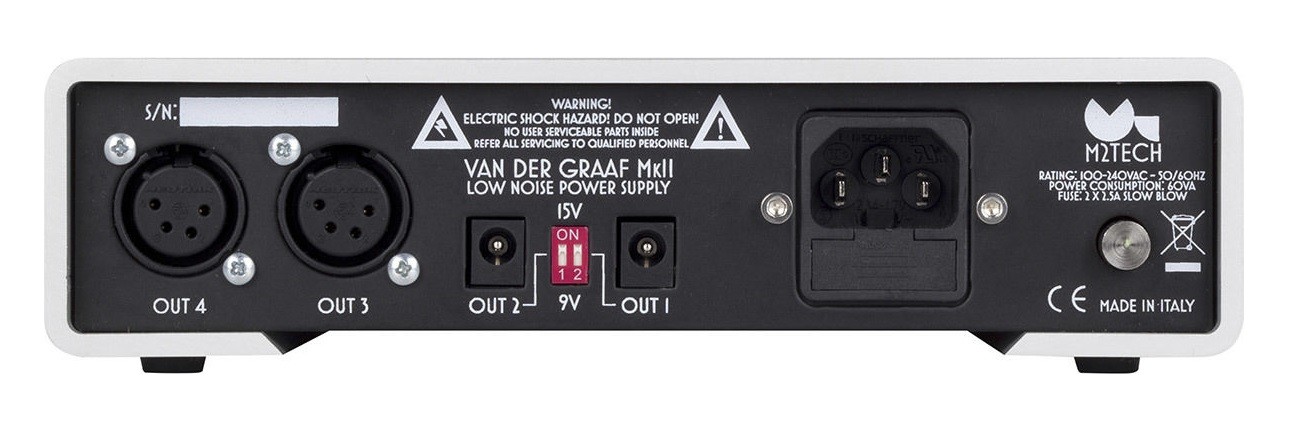

- Outputs: 2 x 9 VDC or 15 V DC current (connector 5.5/2.1 mm); 2 x 5 V DC current: +15 V DC current: -15 V DC current (4-pin XLR)
- Total output power: 50W
- Residual noise: 3 µV (5 Hz to 22 kHz)
- Power consumption: 60 VA
- Dimensions (W x D x H): 200 mm x 200 mm x 50 mm
- Weight with attachments: 3 kg
- Color: silver with black
- Country (head office): Italy
Brand | M2Tech |
---|---|
Model | Van Der Graaf MkII |
Type | блок питания |
type of instalation | Полочный |
output power | 50 Вт общая |
Inputs | 100 В - 240 В перем. тока, 50/60 Гц (розетка VDE) |
exits | 2 x 9 В пост. тока или 15 В пост. тока (разъем 5.5/2.1 мм); 2 x 5 В пост. тока: +15 В пост. тока: -15 В пост. тока (4-х контактный XLR) |
Nutrition | 100-240 В, 50-60 Гц |
Country of manufacture | Италия |
Form | Прямоугольная |
Residual noise | 3 мкВ (при 5 Гц - 22 кГц) |
Power consumption | 60 ВА |
Color | серебристый с черным |
Dimensions (W x D x H), mm | 200 мм x 200 мм x 50 мм |
Weight | 3 кг с навесным оборудованием |
